Applicability basis: Exact vehicle records confirm 2016 and 2024 Honda Civic Sedan applications with the K20C2 2.0L engine at the endpoints used by STEP Diagnostics. Detailed network and DTC evidence for this overview was verified on a 2024 Civic Sedan with the K20C2 engine. Installed modules, network branches, gateway relationships, body style, trim, and test steps can vary across the range. Current service information for the exact vehicle controls those details.
What the vehicle network does
The Civic depends on many control units working as one system. The powertrain control module, transmission controller, vehicle stability assist system, electric power steering, supplemental restraint system, gauge control module, driver-support equipment, parking-assist equipment, and body controllers may all use information created somewhere else in the vehicle.
Serial communication networks let those modules exchange operating states, requests, warnings, and diagnostic information without a separate point-to-point wire for every signal. One controller may calculate a value, another may use it to make a decision, the gauge system may display the result, and a scan tool may retrieve the evidence through the diagnostic connection.

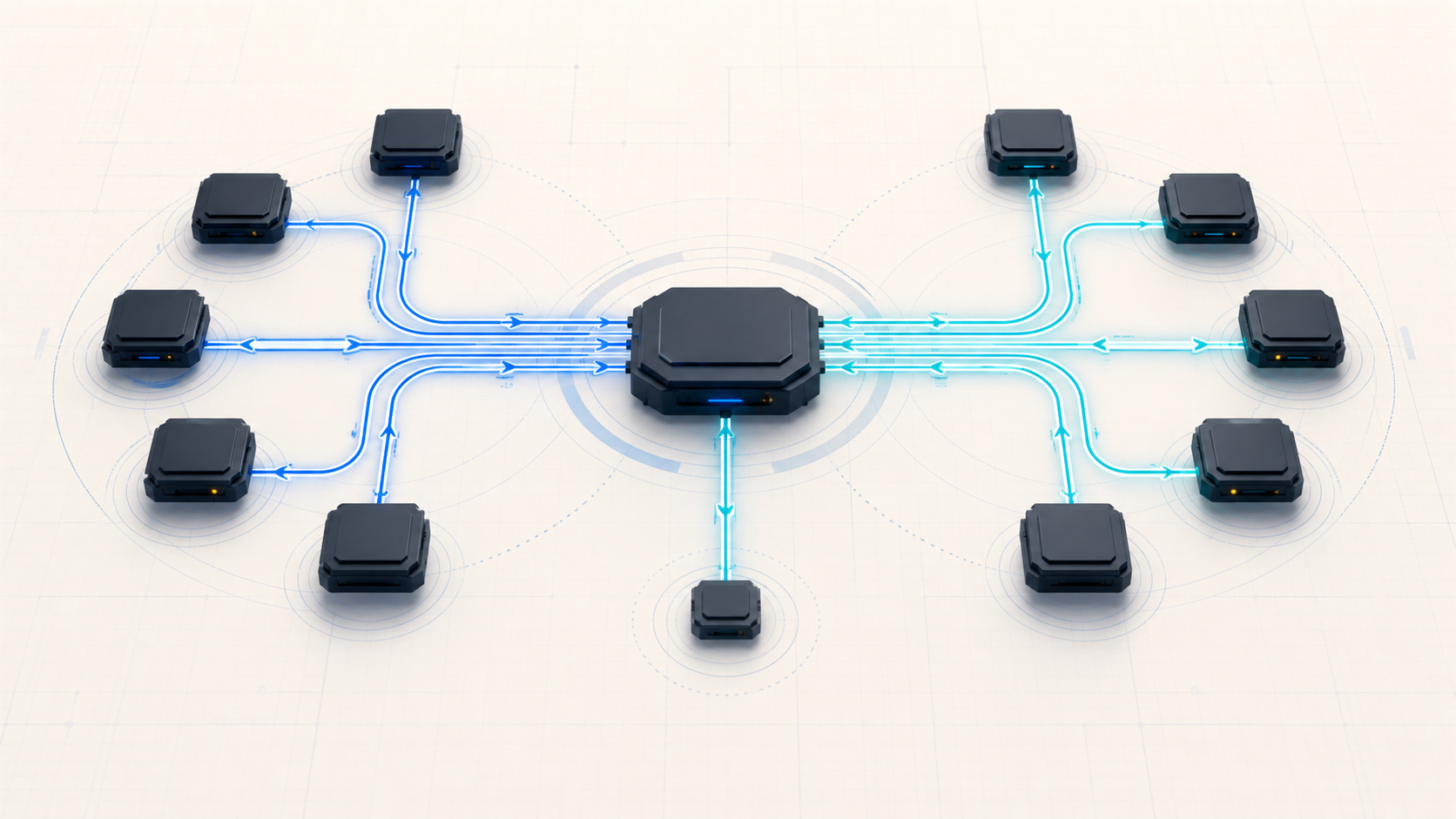

The verified late configuration uses several communication layers:
- F-CAN: Controller-area-network communication used primarily for powertrain, braking, steering, restraint, and other chassis-related information.
- B-CAN: Communication used primarily for body-electrical, display, and convenience functions.
- LIN: A lower-speed master-and-device communication path used for selected local components.
- Gateway functions: Logic that transfers selected messages between communication domains rather than treating the vehicle as one undivided bus.
This is a functional introduction, not a topology map. Do not assume every 2016-2024 Civic 2.0 has the same controllers or network layout. Identify the exact vehicle and consult its current diagrams before deciding which module, branch, or gateway relationship should be present.
How normal communication works
1. A module must start before it can communicate
A controller needs the correct power supplies, grounds, wake-up conditions, internal operation, and network connection before it can exchange messages. If it never starts, other modules may report it missing even when the shared network wiring is intact.
That is why a lost-communication code does not prove the named controller has failed. The missing module may be unpowered, poorly grounded, asleep, disconnected, isolated by a local wiring fault, or prevented from communicating by a wider bus problem.
2. Modules exchange identified messages
Several controllers can share a CAN communication path. Each receiving module monitors the messages it needs. When expected data stops arriving under the applicable conditions, the module that notices the loss may store a communication DTC.
The controller storing the DTC is the reporter. The controller or data source it stopped hearing is the missing communicator identified by the applicable procedure. The reporter has proved only that expected information was not received. It has not proved why the information disappeared or which part should be replaced.
3. Bus-off is different from one missing message
A controller can withdraw from normal communication after detecting repeated bus errors. A bus-off DTC therefore describes the storing module's view of a communication-line condition. It does not automatically identify a failed gateway, failed controller, or damaged wire.
The pattern matters more than the code count. If one module is absent while most controllers remain accessible, suspect its local power, ground, connector, wake-up path, or branch. If several modules disappear together or several reporters identify trouble on the same domain, look for a shared circuit, splice, ground, power feed, gateway relationship, or connected controller that is disturbing the bus.
4. The gateway connects communication domains
The gateway transfers selected information between network areas and monitors communication status. A fault on one side can therefore create complaints in modules that depend on data from another domain. Gateway-related or bus-off codes may deserve priority over a downstream lost-message code when the exact procedure directs that order.
5. LIN is a local relationship
LIN uses a master controller and one or more local devices. It should not be diagnosed with the same assumptions used for a shared two-wire CAN bus. When a symptom points to a LIN branch, identify the master, every expected device on that branch, their electrical support, and the exact isolation procedure.
6. A full scan creates a communication map
A complete scan shows which modules answer, which do not, which controller stored each U-code, and whether several reporters identify the same missing module. That map is often more useful than one DTC title.
Current and intermittent faults also need different treatment. A current fault can be localized with present communication status. An intermittent fault may look normal by the time the vehicle reaches the shop, so preserve the original module list, DTC ownership, status, and related-code pattern before clearing codes or disconnecting controllers.
Main functional parts
- Control modules and their communication interfaces: Each controller processes information but still depends on normal low-voltage power, ground, wake-up, and internal operation.
- CAN circuits, branches, splices, and terminals: Opens, shorts, poor terminal fit, corrosion, water intrusion, harness damage, or a failed connected device can isolate one module or disturb a shared network.
- Gateway functions: These route selected messages and provide important evidence when several network areas are involved.
- LIN master, local devices, and their communication path: Local-network faults require branch-specific diagnosis.
- Diagnostic connector and scan tool: These provide module identification, DTC ownership, status, data, and directed communication tests when the diagnostic path is operating.
- The 12-volt electrical system: Battery condition, terminals, fuses, grounds, wake-up feeds, charging performance, and voltage stability affect every controller's ability to remain online.
What the related DTCs are telling you
| DTC | Communication category | What it directs you to prove |
|---|---|---|
| U0029 | Bus-off or PF-CAN/F-CAN communication behavior | Which module stored the code, which subcode and network channel apply, whether a related gateway or bus-off code is primary, and whether a shared circuit, connected controller, electrical-support problem, or controller explains the condition |
| U0038 | Bus-off behavior from the applicable controller's perspective | Which network branch and reporter apply on the exact vehicle, whether the fault is current, and whether a shared circuit, connected unit, or gateway condition is disrupting communication |
| U0100 | Missing PCM data | Which controller stored U0100, whether the PCM starts and communicates, and whether PCM power, ground, the applicable network path, or an intermittent condition explains the missing data |
| U0122 | Missing VSA communication | Which controller stored the code, whether the VSA controller is online, whether brake or gateway codes are primary, and whether VSA electrical support or the applicable communication path explains the loss |
| U0131 | Missing EPS communication | Which controller stored the code, whether the EPS controller starts and responds, and whether EPS power, ground, the applicable branch, or a wider network condition explains the missing message |
| U0151 | Missing SRS communication | Which controller stored the code, whether the SRS unit is online, and whether restraint-system electrical support or the applicable communication path explains the loss before any SRS connector work begins |
| U1288 | Gauge module missing parking/back-up sensor data | Whether the parking and back-up sensor controller is installed, starts normally, has correct electrical support, and remains connected through the applicable network path |
The same five-character U-code can appear in procedures for different reporting modules and can describe different module-to-module relationships. The linked STEP guides present one published diagnostic perspective. Exact 2024 procedures captured for this overview sometimes use a gateway, multipurpose-camera, or other reporter perspective for the same base code. Read the code in the module that actually stored it and use the exact procedure for that module, subcode, and vehicle configuration.
What the driver or technician may notice
Possible observations include:
- several warning indicators or messages appearing together;
- engine, transmission, brake, stability-control, steering, restraint, driver-support, parking-assist, gauge, or body functions becoming unavailable, depending on which modules are missing;
- a scan tool that communicates with some controllers but not others;
- no scan-tool communication with the vehicle;
- several modules storing codes that identify the same missing controller;
- intermittent warnings after a weak battery, jump-start, collision repair, connector disturbance, water intrusion, or harness movement;
- a stored communication code with no current symptom after communication returns.
These are diagnostic patterns, not proof of a failed module. One weak electrical supply, open fuse, poor ground, unplugged controller, wake-up problem, or primary network fault can create many secondary DTCs.
Safety comes first
Network diagnosis may involve braking, steering, restraints, automatic engine operation, or vehicle movement. Follow the exact restraint-system precautions before disconnecting SRS-related components. Do not measure resistance, apply power, or probe airbag or pretensioner circuits unless the current service procedure explicitly directs it.
Use the specified procedures for brake and steering controllers. Support the vehicle correctly if a test requires wheel movement, keep people clear of moving parts, and never drive while watching a scan tool.
Check battery condition, terminal integrity, charging performance, fuses, and grounds before interpreting a broad U-code pattern. Follow the exact battery and controller-disconnection procedure for the vehicle. Low or unstable voltage can keep modules from starting normally or create misleading communication evidence. A communication DTC is not permission to unplug controllers until the correct isolation and safety procedure is open.
Common failure categories
A module has lost power, ground, or wake-up input
Other controllers can report a missing module because its fuse, feed, ground, connector, or wake-up condition is wrong. Prove those basics before condemning the network or replacing the controller.
A local branch or terminal is open or intermittent
A backed-out terminal, corrosion, poor terminal tension, connector damage, harness chafe, splice problem, or water intrusion can isolate one module while the rest of the vehicle communicates. Static continuity alone may not expose a connection that fails with vibration, moisture, heat, or load.
A shared CAN path is electrically disturbed
A short between communication circuits, short to power or ground, damaged twisted pair, failed transceiver, or connected controller can affect several modules. Use the accessible/inaccessible module pattern and the exact diagram to identify the shared section before disconnecting components.
Low-voltage instability creates secondary U-codes
A discharged battery, loose terminal, charging problem, or voltage drop during startup can cause controllers to reset or wake at different times. Record the original voltage and DTC pattern before treating each stored code as a separate failure.
A gateway, software, setup, or internal controller condition remains
After electrical support, connectors, and network paths pass, the exact procedure may lead to gateway, software, initialization, programming, or internal-controller checks. Those are conclusions reached after supporting tests, not first steps.
The fault is intermittent
Heat, vibration, moisture, harness position, terminal tension, or a brief voltage event can interrupt communication and then disappear. A history code that does not immediately reset is evidence to preserve and investigate, not permission to install a module.
A practical system-first diagnostic strategy
Step 1: Confirm the exact vehicle and equipment
Verify model year, K20C2 engine, body style, trim, installed options, recent repairs, collision history, controller replacement, programming history, and battery events. Obtain the current network diagram and DTC procedure. Do not expect an optional controller to answer on a vehicle that was not built with it.
Step 2: Preserve the complete network evidence
Before clearing codes, perform a full scan. Record every responding and nonresponding module, the owner of each DTC, subcodes, current or history status, available snapshot data, warning indicators, and the 12-volt system condition.
Step 3: Group codes by reporter, missing module, and network
Several reporters naming one missing controller point toward that controller or its local electrical support. Several missing controllers on one domain suggest a shared path, feed, ground, splice, gateway, or connected-unit problem. Give bus-off or gateway-related codes priority when the exact procedure directs that order.
Step 4: Decide whether the named module is online
Attempt communication with the missing controller and compare its own DTCs with the reporter's evidence. If it is offline, first confirm it should be installed, then test its specified powers, grounds, connector engagement, and wake-up conditions. If it is online, investigate an intermittent fault, gateway behavior, missing message, or reporter-side condition.
Step 5: Separate no-tool-communication, bus-off, lost-message, and LIN faults
Do not apply one generic test to every U-code. No communication with the vehicle can involve the diagnostic connector, basic power or ground, gateway access, or a bus fault. Bus-off may affect a shared network. A lost-message code may be local to one controller relationship. A LIN complaint belongs to a master-and-device branch.
Step 6: Inspect before disconnecting
Inspect accessible connectors, grounds, harness retainers, chafe points, moisture paths, collision areas, and recent service locations. Document the original connector state and scan pattern. Disconnecting many modules at once can erase evidence and create additional DTCs.
Step 7: Perform the directed electrical tests
Use the exact diagram, vehicle state, breakout method, measuring equipment, and isolation sequence. The service procedure may call for power/ground, continuity, short, terminal, signal, connected-unit, or substitution checks. Do not borrow connector pins, resistance values, waveforms, or module-disconnection order from another year or configuration.
Step 8: Make a controller decision only after supporting paths pass
If electrical support, network circuits, related-code priorities, software state, and setup checks all pass, follow the directed controller decision. Braking, steering, restraint, driver-support, body-security, and powertrain controllers can require programming, initialization, calibration, or other setup and are not casual swap parts.
Step 9: Verify the complete repair
Reconnect and secure every disturbed connector, ground, shield, and harness retainer. Restore any restraint, steering, stability-control, driver-support, body, or powertrain setup required by current service information. Clear codes when directed, repeat the complete network scan, and confirm every expected controller communicates and the original DTC pattern does not return.
Verify the affected function and warnings under the conditions that produced the complaint. One successful communication attempt after a battery cycle is not enough to close an intermittent network repair.
Repair categories and post-repair setup
Depending on the proven cause, the repair may involve restoring a power or ground path, repairing a terminal or harness, correcting water intrusion or connector damage, repairing the shared communication circuit, replacing a failed connected controller, updating software, or replacing and configuring a module after every supporting path has passed.
The repair is not complete until disturbed systems are restored according to current service information. That may include controller programming, initialization, steering or driver-support calibration, restraint checks, clock or window setup, or other vehicle-specific post-service steps. Record the final full scan and functional verification so the repair closes the original complaint rather than only clearing one code.
Final takeaway
Vehicle-network diagnosis on the 2016-2024 Honda Civic 2.0 Gas starts with a communication map, not a parts list. Separate the module that stored the code from the controller or data it says is missing, distinguish one offline controller from a shared bus-off condition, and keep local LIN behavior separate from CAN-network faults.
Then prove the basics in order: exact application and equipment, 12-volt condition, module power and grounds, connector integrity, the correct network branch or gateway path, and only then software or controller function. The linked STEP guides organize the fault categories; current service information for the exact Civic controls safety steps, topology, connector references, electrical limits, scan-tool functions, programming, and final verification.
