Pressure Transducer Zeroing: Keep the Reference, Auto-Zero and Zoom Separate

What does zero mean in this capture?

A pressure trace near the zero line can describe several different situations: the required reference condition was established, the instrument completed a startup adjustment, or a dynamic mode removed the static component. Those are different entries in a diagnostic record. Before interpreting the trace, identify which one occurred.

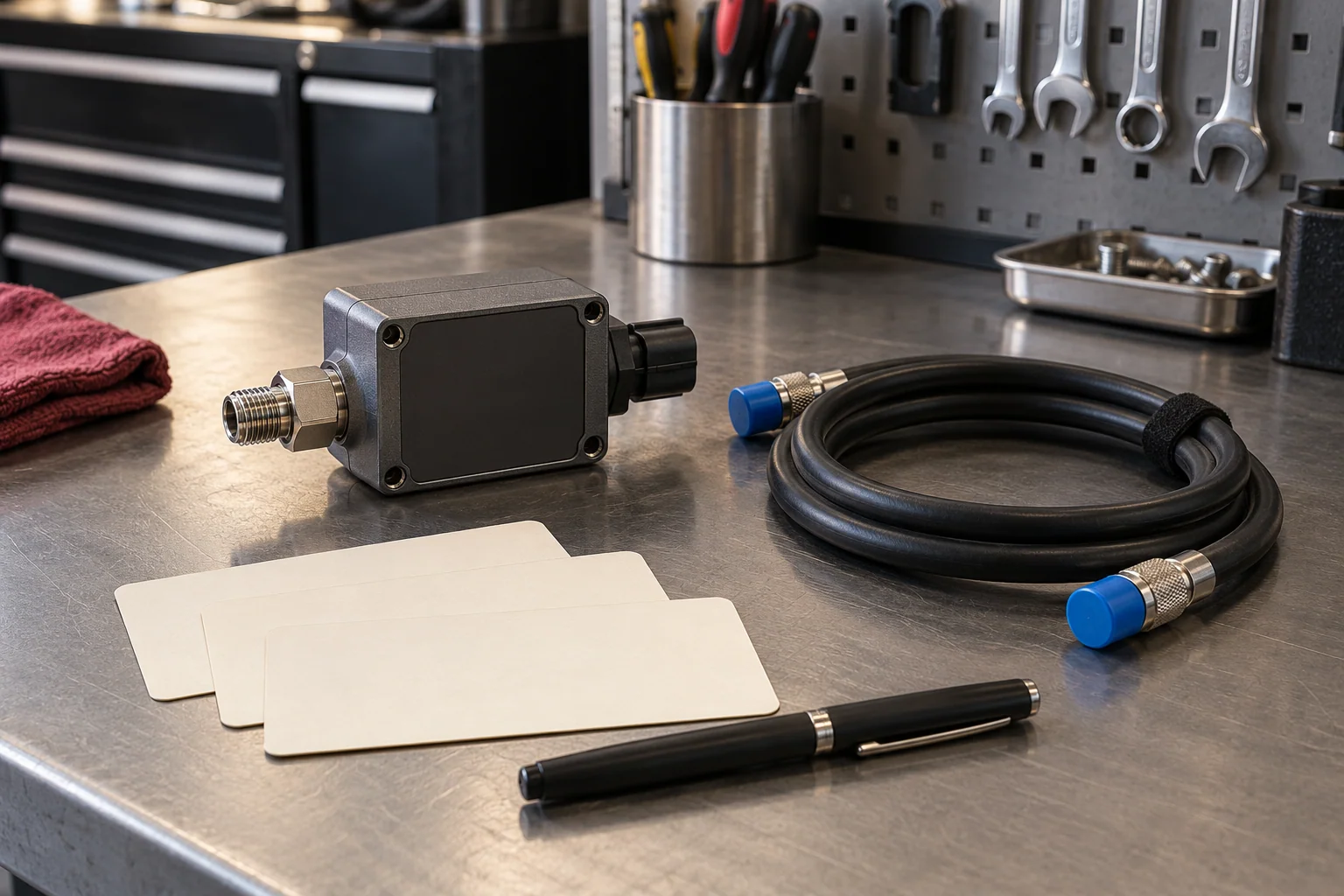

This guide concerns an external shop pressure transducer and its saved evidence. Use the vehicle and equipment instructions to establish safe depressurization, disconnection and preparation before changing a pressure connection. The discussion supplies no fuel-system release sequence or vehicle acceptance pressure.

Identify the reference before pressing a button

Fluke's gauge-versus-absolute pressure explanation separates an atmospheric reference from a vacuum reference. Gauge pressure uses the local atmosphere; absolute pressure uses a vacuum reference. Exposing an absolute instrument to ambient air therefore does not, by itself, establish its zero-pressure reference.

For the job record, name the transducer and pressure type, then identify the manual's required reference condition. Include the actual input configuration, connected hose or adapter and any uncertainty about the reference. A psi or bar label does not answer the reference question.

If the required condition is unknown, retain the observation with that limitation. Do not redefine the zero simply because a familiar-looking number would make comparison easier. The separate MAP pressure-reference guide addresses converting and comparing pressure references; this article addresses preparation and mode evidence.

Treat auto-zero as a tool-specific operation

The Pico WPS500X User's Guide, DO157-14, printed page 9, describes startup auto-zero with the pressure source disconnected before switch-on. It identifies the completed indicator sequence and warns that a connected pressure source interferes with that preparation. These instructions belong to that identified tool and manual; they are not a universal transducer sequence.

Record what was actually observed: the source condition, startup or zero command, completion indication and subsequent displayed baseline. If the preparation was not witnessed, say so. A saved trace cannot retrospectively supply a missing startup record.

The manual calls this preparation self-calibration. That wording does not create evidence of every other calibration requirement. A note that the startup sequence completed records that event; it does not list comparisons across the measuring range or prove suitability for the intended vehicle test.

Keep dynamic zoom out of the static-pressure conclusion

The same Pico guide, printed pages 7-8, describes its zoom as removing static or low-frequency content and magnifying remaining pressure variations. That can move a trace toward the zero line while changing what the output represents. It is not evidence that the physical system has reached atmospheric pressure.

Before a comparison, save the selected range, zoom or dynamic mode and the matching software scale. If static level is the question, identify the supported mode that retains it and preserve that capture separately from any dynamic-detail view. Do not assign the dynamic view's center line the meaning of an independently established pressure reference.

When two captures disagree, first check that both represent the same quantity and mode. A shifted baseline is a reason to investigate preparation and processing; it does not establish either a failed vehicle component or a faulty transducer.

Make a before-and-after zero record

Use the downloadable record to keep the decision visible:

• Measurement question, vehicle or bench context and applicable procedure reference.
• Transducer model and ID, pressure type, hose and adapter identities.
• Required reference condition and evidence that it was established.
• Initial indication, units, range and mode before any adjustment, if available.
• Exact preparation performed, completion indication, time and resulting baseline.
• Zoom, dynamic filtering and software scaling states for each saved capture.
• Comparison requirement, unresolved limitation and the next permitted check.

Fluke's discussion of pressure measurement uncertainty treats stabilization and zero drift as contributors to uncertainty. Use the actual instrument's settling and verification requirements; no single wait time or acceptable offset is prescribed here. Record an unstable baseline as unresolved rather than silently replacing it with zero.

Turn a missing setup into a specific next step

In a fictional handoff, a technician receives a centered pulse trace labeled only as a pressure check. The file lacks the startup condition, and dynamic zoom is enabled. The next technician preserves that file, marks the static-pressure interpretation unresolved and plans a documented repeat under the applicable instructions. The screenshot alone does not answer whether the vehicle pressure or the measurement setup was correct.

Keep hose-volume and compression-comparison questions separate from this baseline audit. Attach both records when both affect the test. For an independent shop, the useful outcome is a trace another technician can interpret and a clear remaining check. Request STEP Early Access to discuss that diagnostic workflow.
