What this sensing system is trying to do
The 3.5-liter EcoBoost powertrain control module (PCM) cannot control torque, boost, fuel, and emissions from one sensor. It builds a picture of engine load from several inputs and then checks whether those inputs agree. Throttle position describes the opening through which air is admitted. Airflow or manifold-pressure information describes what is actually entering or filling the engine. Engine speed and operating state give that air measurement useful context. Ambient air temperature supplies an environmental reference used by the vehicle beyond the engine-control calculation as well.
Ford model-year material confirms that the F-150 was offered with a 3.5L EcoBoost engine throughout the 2015-2025 range. The detailed operating and diagnostic evidence reviewed for this overview comes from the exact 2025 F-150 4WD 3.5L turbo application. Verify the VIN, calibration, sensor layout, wiring, specifications, and current service procedure for the truck being repaired. Exact hardware and diagnostic logic can differ within the grouped range.
The related DTCs describe two different types of failure. P0068 is a rationality code: the PCM found that throttle position and the measured or inferred airflow/load picture did not agree with calibrated expectations. P0072 and P0073 are ambient-air-temperature circuit low and circuit high categories. They describe an electrical signal result, not necessarily weather that is physically too cold or too hot. None of these codes proves that a named sensor should be replaced.

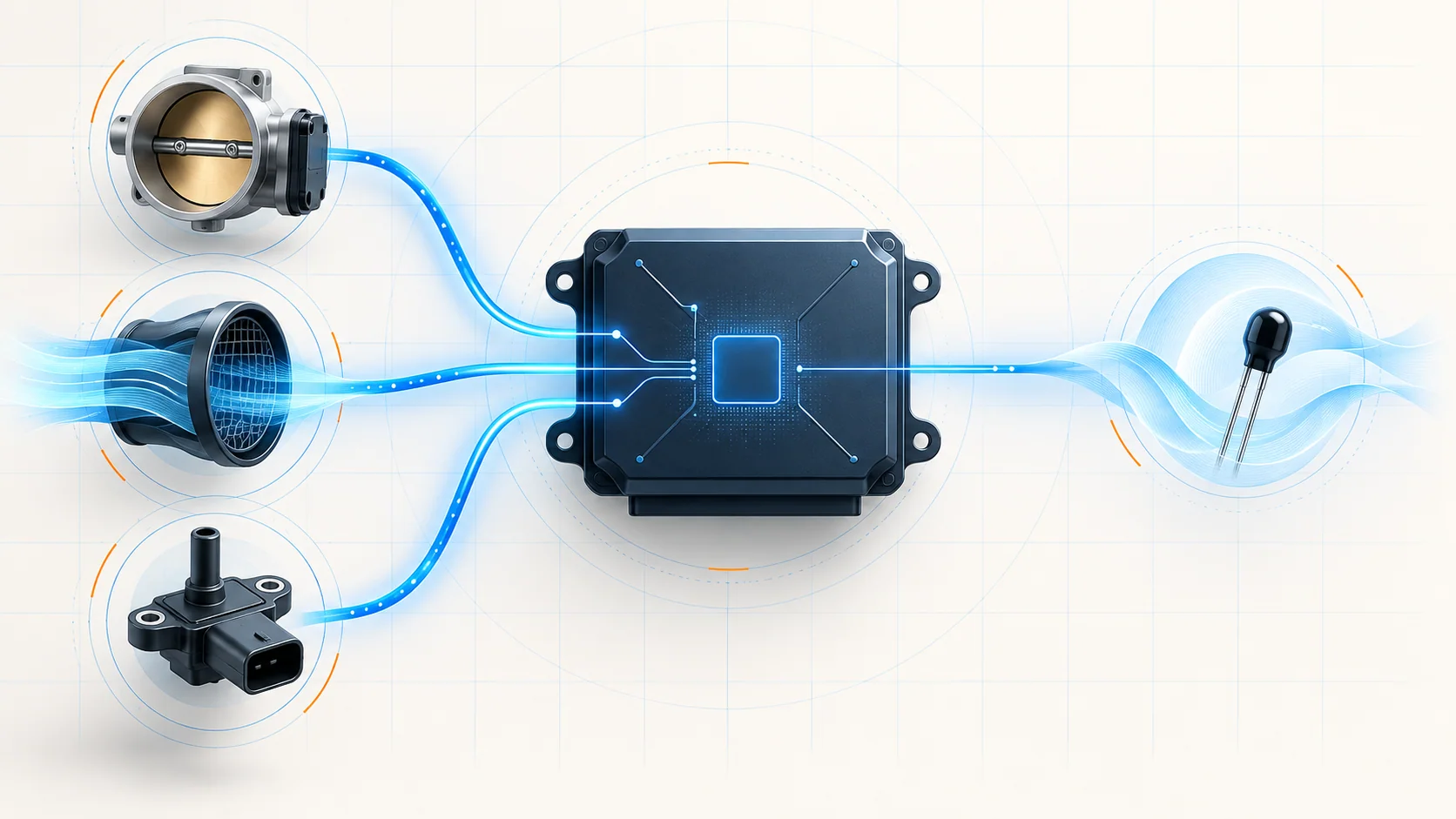

The main functional sections
- Electronic throttle and throttle-position feedback: The PCM commands airflow through the electronic throttle and monitors plate position. The opening is one part of the expected-load calculation, not a stand-alone measurement of how much air reached the cylinders.
- Airflow and manifold-pressure evidence: Depending on the exact configuration and operating state, mass-airflow and manifold-pressure information help the PCM estimate cylinder filling and engine load.
- Intake and charge-air path: Air must travel through the air cleaner, ducts, turbocharger and charge-air plumbing, throttle body, intake manifold, and cylinder ports without an unintended leak or restriction.
- PCV and crankcase sealing: The positive crankcase ventilation system deliberately routes crankcase gases into the intake. A disconnected, leaking, restricted, or incorrectly sealed path can change the air entering the engine and upset the load comparison.
- Ambient-air-temperature input: The outside-air sensor changes an electrical signal with temperature. The PCM and other modules can use the resulting information for display and operating decisions.
- PCM plausibility monitoring: The controller compares related inputs under defined conditions. A signal may be electrically present and still be implausible when compared with the rest of the system.
How the PCM builds and checks the load picture
When the driver requests torque, the PCM coordinates throttle opening, turbocharger control, fueling, ignition, and other functions. The expected airflow at a particular throttle position is not fixed: engine speed, manifold pressure, temperature, boost state, and other operating conditions change what the engine should ingest.
For that reason, the PCM does not judge P0068 from a single snapshot. The exact 2025 diagnostic information describes a comparison between throttle position and MAF or MAP information against calibrated load values. If a hose, connection, intake component, PCV path, or crankcase seal admits or loses air outside the expected route, the physical airflow can stop matching the model even when each individual sensor still produces a plausible-looking number.
This is why replacing a MAF sensor, MAP sensor, or throttle body from the code title alone is weak diagnosis. The failed comparison may be reporting the consequence of a split hose, loose clamp, restricted passage, leaking oil cap or seal, incorrect PCV part, sticking throttle plate, wiring fault, or intermittent connection. The job is to find which input or physical path broke the agreement.
How ambient temperature becomes an electrical signal
An ambient-air-temperature sensor is a temperature-sensitive electrical element. The module interprets its circuit signal as outside temperature. The exact diagnostic path for this application evaluates displayed or reported temperature, connector condition, sensor behavior, circuit integrity, and finally module connections or control-module responsibility.
P0072 means the monitored circuit is low; P0073 means it is high. Those labels refer to the electrical result seen by the controller. A low-circuit code does not simply mean the outside air is cold, and a high-circuit code does not simply mean the day is hot. Opens, shorts, terminal problems, water intrusion, corrosion, damaged wiring, a biased sensor, or a controller-side concern can force the signal toward an electrical limit.
Temperature resistance and voltage relationships, connector locations, and pin assignments must come from the current diagram and exact vehicle procedure. Generic internet charts can be wrong for the circuit being tested.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0068 | MAP/MAF-throttle position correlation | Why throttle position and the airflow/manifold-pressure load picture do not agree: intake/PCV leakage or restriction, crankcase sealing, throttle mechanics, signal integrity, or another related fault |
| P0072 | Ambient-air-temperature circuit low | Whether the sensor, connector, wiring, signal/return path, or controller-side connection explains the low electrical result |
| P0073 | Ambient-air-temperature circuit high | Whether an open, short, poor terminal, sensor fault, or controller-side connection explains the high electrical result |
The code family matters. P0068 is primarily about agreement among systems. P0072 and P0073 are primarily about the limits of one temperature-signal circuit. Treating all three as “bad airflow sensors” would erase that distinction.
What the driver or technician may notice
Possible observations include:
- a malfunction indicator lamp with no obvious drivability change;
- rough, rolling, or elevated idle;
- hesitation, surge, stalling, reduced power, or poor fuel economy;
- a symptom concentrated at idle, during acceleration, under boost, or after recent intake/PCV work;
- an outside-temperature display that is implausible, fixed, intermittent, or slow to recover;
- HVAC behavior that appears inconsistent with actual outside conditions;
- companion throttle, airflow, manifold-pressure, boost, crankcase-pressure, PCV, fuel-trim, voltage, or communication codes;
- evidence of a loose intake connection, split hose, damaged seal, contaminated connector, harness abrasion, or water intrusion.
Symptoms establish when to test; they do not identify the failed part. A false ambient reading may be obvious while a biased load input remains subtle, and a real intake leak can make several good sensors disagree.
Safety before testing
The electronic throttle plate can move without hand force when the ignition is on or a scan-tool command is active. Keep fingers, tools, and cleaning material out of the throttle bore until the exact procedure has placed the system in a safe state. Do not force the plate or perform an unapproved cleaning or relearn routine.
Allow turbocharger, exhaust, and charge-air components to cool. Keep hands, clothing, and test leads away from belts, fans, and moving components whenever the engine must run. Secure the truck correctly if access underneath is required.
Use terminal-safe probes and the current wiring diagram. Do not pierce insulation, spread terminals, improvise jumpers, or apply battery voltage to a sensor signal, reference, or return circuit. Do not use flammable spray to search for intake leaks. Stop if damaged fuel, oil, intake, or electrical components create an unsafe condition.
Common failure categories
1. Intake or charge-air leak or restriction
A loose clamp, damaged duct, split hose, poor seal, restricted air cleaner, leaking manifold path, or charge-air connection can change the air that reaches the engine. Inspect the complete path, including areas disturbed during prior repair, rather than only the component named in the DTC title.
2. PCV or crankcase sealing concern
The exact P0068 path gives PCV and crankcase integrity a central role. Disconnected or restricted hoses, an incorrect or contaminated valve, leaking gaskets or seals, an improperly installed oil cap or dipstick seal, and related crankcase-pressure concerns can upset the airflow/load relationship.
3. Throttle mechanical or position concern
A dirty, sticking, binding, damaged, or incorrectly serviced throttle plate can prevent actual airflow from matching the commanded opening. Confirm mechanics and signal behavior with the exact procedure before cleaning, relearning, or replacing anything.
4. Biased airflow, pressure, or temperature input
A sensor can remain within an electrical range while reporting the wrong value. Compare related inputs under stable conditions and at the stored operating point. A plausible number is not necessarily an accurate number.
5. Ambient sensor or circuit fault
Water intrusion, corrosion, poor terminal fit, an open or short, harness damage, or a failed sensing element can drive the ambient-temperature signal low or high. Prove the circuit and the sensor separately.
6. Shared power, ground, reference, network, or PCM concern
Several codes appearing together may point away from individual sensors and toward a shared electrical or communication issue. Establish code priority and test common dependencies before replacing multiple components.
7. Intermittent heat, vibration, or prior-repair damage
A harness may pass a static test and fail when the engine moves, a connector warms, or road splash reaches a damaged seal. Use the stored conditions and controlled harness inspection to reproduce the concern safely.
A practical diagnostic sequence
1. Preserve the evidence
Scan all modules before clearing codes. Save freeze-frame or snapshot data, code status, throttle position, airflow/load and manifold-pressure information, relevant temperatures, fuel trims, crankcase-pressure evidence if available, and system voltage. Record recent air-filter, turbocharger, intake, PCV, throttle, front-end, sensor, calibration, or wiring work.
2. Establish code priority
Address low voltage, communication faults, shared reference or ground faults, direct throttle/airflow/pressure circuit codes, and obvious intake or PCV faults before interpreting P0068. For P0072 or P0073, check whether other temperature or shared-circuit codes identify a broader electrical problem. Follow the current service-information priority.
3. Compare cold-soak plausibility
After a genuine soak, compare ambient temperature with other credible temperature inputs and actual workshop conditions. They need not be numerically identical, especially after sun exposure or different sensor heat soak, but a large or fixed disagreement is useful direction. Use the exact procedure for allowed differences and test conditions.
4. Inspect the physical air and crankcase paths
Check the air cleaner, ducts, charge-air plumbing, clamps, vacuum connections, PCV hoses and valve, crankcase seals, oil cap, dipstick seal, throttle bore, and intake-manifold area. Confirm routing, part correctness, restrictions, leaks, and evidence of prior disturbance.
5. Separate rationality diagnosis from circuit diagnosis
For P0068, determine which physical path or input breaks the load comparison. For P0072/P0073, determine whether the electrical signal is being pulled low or high by the sensor, wiring, connector, or module side. Do not substitute a parts swap for that distinction.
6. Test circuits with exact information
Use the correct connector views, terminal locations, specifications, and test conditions. Check terminal fit and loading where the procedure requires it. Compare the ambient sensor to its exact temperature relationship; do not apply generic resistance values. If the concern is intermittent, monitor the relevant signal while safely manipulating only the suspected harness section.
7. Confirm the component only after the path is proven
Replace a sensor, throttle body, PCV component, or controller only when directed evidence identifies it. If removing a component makes a signal change, that observation still must be interpreted through the exact circuit design.
8. Verify the repair
After repairing the proven cause, clear codes or learned values only when the current procedure instructs it. Run the applicable self-test or qualifying drive, reproduce the original operating condition, and confirm credible temperature and load relationships. Re-scan all modules and verify that no new fault was introduced.
Repair direction by confirmed cause
- Repair intake, charge-air, vacuum, PCV, crankcase-seal, or throttle mechanical faults before blaming a load sensor.
- Repair connector, terminal, reference, return, signal, power, ground, or harness faults before replacing a sensor.
- Replace the ambient sensor only when its exact component test and circuit isolation identify it.
- Replace or service throttle, airflow, pressure, or crankcase components only after the failed comparison has been isolated.
- Investigate shared electrical or controller responsibility only after external paths and connections have been proven.
- Follow the exact relearn, reset, self-test, and road-verification procedure for the VIN and calibration.
The key takeaway
Think of this system as a consistency check, not a collection of unrelated sensors. P0068 asks why throttle position no longer agrees with the airflow/manifold-pressure picture and calibrated engine load. On the exact application reviewed, Ford directs that question into the intake, PCV, crankcase sealing, throttle, sensor, circuit, and intermittent branches—not automatic MAF, MAP, or throttle-body replacement. P0072 and P0073 ask why the ambient-temperature circuit reached a low or high electrical state. Preserve the conditions, inspect the physical paths, distinguish rationality from circuit faults, test with exact vehicle information, and replace only the part that the evidence proves failed.
