Vehicle group: 2010-2017 Honda Accord 2.4 Gas
Start by identifying the fuel-system architecture
The 2010-2017 STEP vehicle group contains more than one fuel-delivery architecture. The verified 2010 Accord 2.4L source describes sequential multiport fuel injection. The verified 2017 Accord Sedan K24W1 source uses gasoline direct injection with an in-tank low-pressure supply, a mechanically driven high-pressure pump, a high-pressure rail, direct injectors, and rail-pressure feedback.
That difference changes the diagnostic plan. Low-pressure supply, injector operation, mixture feedback, and exhaust-sensor evidence matter across the range, but P0087, P0088, P2623, direct-injection rail-pressure data, and high-pressure-pump checks belong to a direct-injection configuration. For an intervening model year, identify the installed engine and fuel architecture from the emissions label and applicable service information before selecting a test. Do not apply a 2017 K24W1 pressure test, connector check, or component conclusion to an early multiport-injection vehicle merely because both are listed as 2.4-liter Accords.
The detailed direct-injection evidence used in this overview was verified on a 2017 Honda Accord Sedan with the K24W1 engine. Exact DTC availability, specifications, scan-tool functions, component locations, connectors, and repair procedures must come from service information for the vehicle being repaired.
What the fuel system must accomplish
The system has to deliver the correct quantity of gasoline to each cylinder while the PCM evaluates whether combustion and exhaust feedback match the command. Several functions work together:
- The in-tank pump and low-pressure circuit must provide a clean, sealed, adequate supply.
- On a direct-injection engine, the high-pressure stage must raise and regulate rail pressure as operating demand changes.
- The injectors must deliver the commanded quantity consistently from cylinder to cylinder.
- Airflow, air-fuel-ratio, and oxygen-sensor information - and rail-pressure information where the configuration monitors it - must be believable enough for the PCM to evaluate fuel control.
- Ignition, EVAP purge, intake, exhaust, and base-engine condition must be sound because faults in those systems can imitate a fuel-delivery problem.
A DTC identifies a monitored behavior that did not meet expectation. It does not identify the part that must be replaced.
The verified early multiport-injection example
On the verified 2010 Accord 2.4L, the PGM-FI system is a sequential multiport fuel-injection system. The low-pressure supply delivers fuel to injectors positioned upstream of the combustion chambers, and the control module times injector operation using engine and load inputs.
There is no verified mechanically driven high-pressure stage in the captured 2010 system description. If a vehicle matches this architecture and has a rich-mixture, post-catalyst, or cylinder-balance code, keep the diagnostic plan within its applicable pump, pressure, injector, mixture-feedback, and electrical procedures. Do not introduce a late direct-injection rail, spill valve, or high-pressure pump into the test plan.

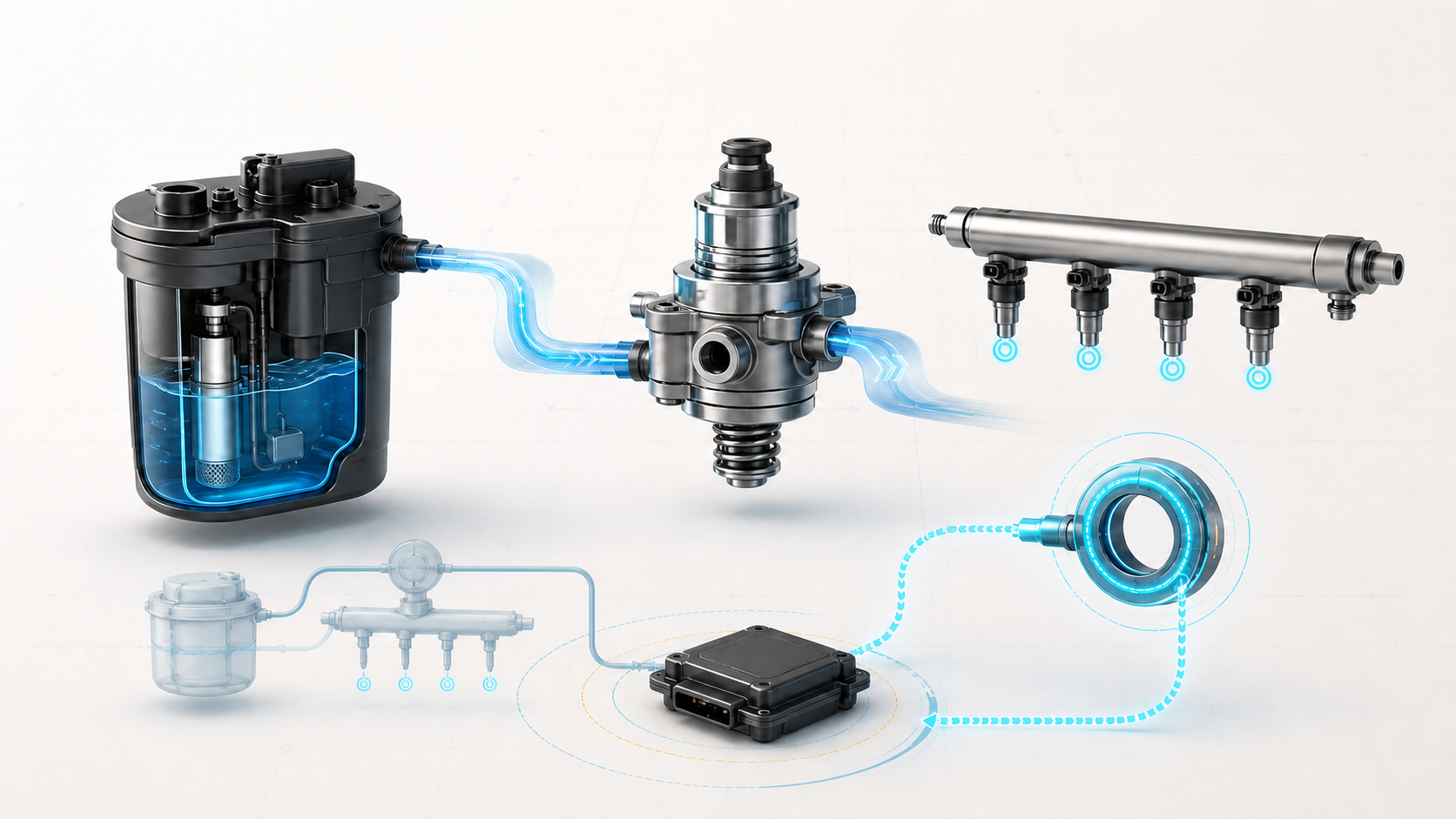

The verified 2017 K24W1 direct-injection example
The verified 2017 system has two pressure sections.
- Low-pressure supply: The in-tank pump supplies fuel through a returnless low-pressure circuit. The pressure regulator is part of the pump assembly, so supply quality, pump output, electrical control, restrictions, leakage, and contaminated fuel can all affect what reaches the engine-driven pump.
- Mechanically driven high-pressure pump: An engine cam drives the pump. The PCM controls a fuel-control solenoid while fuel-rail-pressure feedback shows how the high-pressure side responds.
- Joint pipe, fuel rail, and direct injectors: The high-pressure stage supplies the rail, and the injectors meter fuel directly into the combustion chambers.
- Pressure feedback and PCM control: The PCM compares the pressure response with its control objective. The pressure signal must be shown to be plausible before it is treated as proof of mechanical pressure.
The high-pressure pump is only one part of that loop. Low-side supply, pump drive, pump control, rail-pressure sensing, wiring, connections, injectors, and PCM command can each change the observed pressure result.
Pressure, mixture, exhaust, and cylinder data answer different questions
- Rail-pressure data asks whether the pressure-control system follows its command.
- Fuel-trim and air-fuel data ask whether the engine needs abnormal correction to reach the expected mixture.
- Post-catalyst data asks whether downstream exhaust behavior matches the monitor's expectation.
- Cylinder-variation data asks whether one cylinder behaves differently from the group.
These observations can overlap without sharing one root cause. Inadequate supply can reduce direct-injection pressure under load. An injector can affect one cylinder without causing a global pressure fault. An intake leak, purge problem, exhaust leak, or biased sensor can distort feedback even when fuel delivery is mechanically sound. A compression or ignition problem can look like a fueling imbalance because the combustion result changed.
The diagnostic goal is to decide which observation is primary and which is a consequence.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0087 | Direct-injection rail pressure below expected | On an applicable direct-injection vehicle, whether low-side supply, leakage, pressure feedback, pump control, pump drive, injectors, or another related fault prevents pressure from following the target |
| P0088 | Direct-injection rail pressure above expected | On an applicable direct-injection vehicle, whether the pressure signal is believable and whether high-pressure control can reduce pressure as commanded |
| P0172 | System-wide rich correction | Whether fuel delivery, injector behavior, airflow information, purge influence, contamination, or air-fuel feedback explains the rich result |
| P2097 | Post-catalyst rich feedback | Whether primary mixture faults, exhaust integrity, and upstream or downstream sensor evidence explain the completed monitor result |
| P219A | Cylinder-to-cylinder air/fuel variation | Whether injector delivery, ignition, compression, valve condition, deposits, or another cylinder-specific condition makes one cylinder differ from the group |
| P2623 | High-pressure-pump spill-valve electrical/control circuit | On an applicable direct-injection vehicle, whether relay feeds, control wiring, connections, pump-control circuitry, or PCM control prevents expected operation |
P2623 is especially easy to misread. It names the high-pressure-pump spill-valve function, but its diagnostic path includes power supply, control circuits, wiring, terminals, and module-side checks. It is not permission to replace the pump without circuit evidence.
What the driver or technician may notice
Possible observations include:
- a malfunction indicator lamp with few other symptoms;
- hard starting, a no-start, or an intermittent stall;
- hesitation, weak response, or reduced power under load;
- rough idle or uneven cylinder contribution;
- a fault that appears only under conditions similar to the stored snapshot;
- related injector, ignition, misfire, pressure-sensor, purge, air-fuel-sensor, or oxygen-sensor DTCs.
None of these symptoms proves that a pump, injector, or sensor has failed. The DTC combination and captured operating conditions are more useful than the symptom alone.
Fuel safety comes before diagnosis
Gasoline is flammable, and a direct-injection system can retain hazardous pressure after the engine is switched off. Never loosen a line to see whether pressure is present.
Work in a ventilated area away from ignition sources. Wear the protection required by the applicable procedure, relieve pressure by the approved method, and follow the specified electrical-disconnection sequence before opening the system. Keep exposed fittings and lines clean, use the approved tools and containment method, and replace seals or one-time components when the procedure requires it.
After any line, pump, rail, or injector work, assemble the system completely and perform the specified leak inspection before normal operation. If liquid fuel leakage is present, stop and correct the hazard before continuing diagnosis.
Common failure categories
1. Low-pressure supply cannot support engine demand
A weak in-tank pump, restriction, electrical supply problem, poor connection, leak, contaminated fuel, or an out-of-fuel event can reduce delivery. On a direct-injection engine, that upstream problem can prevent the mechanically driven pump from reaching its target. On the early multiport system, it can directly affect injector supply.
This is why low rail pressure on a direct-injection vehicle does not automatically condemn the high-pressure pump. Prove the supply entering that pump first.
2. High-pressure generation or control cannot follow the command
On the verified K24W1 system, the pump drive, fuel-control solenoid, rail-pressure feedback, electrical circuits, and PCM command work as a unit. Pressure that remains below target and pressure that remains above target are different failure directions.
Compare command, response, and sensor plausibility before selecting a component. Inadequate low-side supply, mechanical drive wear, a control-circuit fault, a sticking control function, leakage, or an inaccurate signal can produce different evidence even though the pump appears in each diagnostic tree.
3. The mixture is rich, or the feedback says it is
P0172 is broader than a pressure code. Excessive fuel delivery can create a rich result, but injector leakage or imbalance, abnormal purge flow, incorrect airflow information, fuel or oil contamination, and biased air-fuel feedback can also influence the correction. Diagnose the control loop instead of assuming that rich always means excessive fuel pressure.
4. The downstream exhaust result is unexpected
P2097 is a post-catalyst rich-side feedback fault. The downstream sensor reports evidence; it does not automatically identify itself as the failed part. Primary mixture faults, exhaust leakage or restriction, and upstream or downstream sensor behavior must be separated using the applicable completed-monitor strategy.
5. One cylinder differs from the others
P219A is a comparison code. Injector delivery, ignition, compression, valve condition, deposits, or a local intake or exhaust effect can change one cylinder's contribution. Resolve primary injector-circuit, ignition, misfire, and sensor faults before treating the variation result as an injector verdict.
6. Electrical control is interrupted
Relay feeds, fuses, wiring, terminals, connector fit, and PCM control can prevent the low-pressure pump or a direct-injection control solenoid from operating correctly. A circuit-related DTC requires voltage, continuity, terminal, and command evidence from the exact wiring diagram. Replacing a mechanical component does not repair an open feed or poor terminal connection.
A practical diagnostic strategy
Step 1: Identify the architecture before selecting a test
Confirm the model year, engine code, emissions configuration, and installed components. Decide whether the vehicle has the early multiport system or a direct-injection system. Open service information for that exact configuration.
Step 2: Preserve the evidence
Record confirmed and pending DTCs, freeze-frame or on-board snapshot data, fuel trims, relevant pressure data, upstream and downstream sensor information, and the operating conditions before clearing anything. Intermittent faults become much harder to reproduce after their evidence is erased.
Step 3: Classify the concern
Place the evidence into a working category:
- low-pressure supply or pump control;
- direct-injection pressure below target;
- direct-injection pressure above target;
- system-wide rich correction;
- post-catalyst feedback;
- cylinder-specific variation;
- high-pressure-pump spill-valve electrical/control circuit.
That classification determines whether the next useful evidence is supply pressure, pressure command and response, electrical control, global mixture data, exhaust feedback, or cylinder comparison.
Step 4: Resolve related primary DTCs first
Pressure-sensor, injector-circuit, ignition, misfire, airflow, air-fuel-sensor, purge, and power-supply faults can make later functional results unreliable. Diagnose the code combination as a hierarchy, not as separate requests to replace parts.
Step 5: Inspect for hazards and basic faults
Check for liquid fuel leakage before running functional tests. Inspect accessible lines, quick-connect fittings, recently disturbed components, pump and sensor connectors, intake and exhaust areas, and related fluid condition. Do not disconnect a pressurized component during this inspection.
Step 6: Separate low-side supply from high-pressure control
On a direct-injection engine, prove adequate low-side supply before judging high-pressure output. Then compare commanded and measured pressure using the function test and conditions specified for the exact vehicle. Determine whether the displayed signal is plausible and whether pressure responds in the correct direction.
On an early multiport-injection vehicle, stay within its applicable single-stage pressure, pump-control, and injector procedure. Do not search for high-pressure data that the system does not use.
Step 7: Diagnose mixture faults as a complete loop
For a rich or post-catalyst concern, review fuel delivery, injector behavior, airflow information, purge influence, exhaust integrity, and sensor feedback in the order specified by service information. Reproduce the stored operating condition rather than relying only on warm-idle data.
Step 8: Isolate cylinder variation
For P219A, correct primary circuit, ignition, misfire, and sensor faults first. Then compare cylinders using the applicable procedure. Injector behavior, mechanical condition, valve condition, deposits, and oil influence may need to be separated before a repair is justified.
Step 9: Verify the repair
After repair, perform the required leak check and restore every fuel and electrical connection. Complete any specified reset, learning, functional test, or monitor verification. Confirm that pressure behavior, fuel-trim or cylinder results, and related pending DTCs are normal under the conditions that originally produced the fault.
Clearing a code and seeing the light remain off before the monitor runs is not repair verification.
Match the repair to the proven failure
The eventual repair may involve a low-pressure pump or its electrical supply, a restricted or leaking line, a pressure sensor or circuit, direct-injection pump control, mechanical pump drive, an injector or injector circuit, purge valve, airflow input, air-fuel or oxygen sensor, exhaust leak, ignition problem, or mechanical cylinder condition. It may also involve correcting fuel or oil contamination.
The correct repair is the one supported by the applicable test path. Replacing a high-pressure pump for every P0087, an oxygen sensor for every P2097, or injectors for every P219A skips the isolation work the procedures are designed to perform.
Final takeaway
Fuel diagnosis on the 2010-2017 Honda Accord 2.4 Gas begins by recognizing that one range label does not make its fuel-system procedures interchangeable. The verified 2010 example uses sequential multiport injection. The verified 2017 K24W1 example adds a mechanically driven high-pressure stage, direct injectors, and rail-pressure control. Identify intervening vehicles by their installed engine and applicable service information before choosing either diagnostic model.
Identify the architecture, preserve the evidence, classify the DTC, make the system safe, resolve related primary faults, and isolate the failed section before replacing parts. The linked STEP guides provide model-specific educational context; exact service information for the vehicle being repaired controls specifications, test conditions, component access, and repair verification.
