Applicability basis: Official Honda specifications and feature guides confirm that a turbocharged, direct-injected 1.5-liter gasoline engine was available in selected U.S.-market Civic trims across the 2016-2024 model-year range. The detailed diagnostic and service evidence used for this overview was verified for a 2024 Honda Civic Sedan L4-1.5L Turbo (L15B7). Exact pressures, scan-tool functions, test conditions, component locations, and repair procedures must come from service information for the vehicle being repaired.
What the fuel system does
The fuel system must deliver the correct amount of gasoline to each cylinder over a wide range of engine loads. On the turbocharged 1.5-liter Civic, Honda uses direct injection: fuel is supplied to a mechanically driven high-pressure pump, raised to direct-injection pressure, stored in the rail, and metered by injectors directly into the combustion chambers.
Delivery is only half of the job. The PCM also evaluates whether measured fuel pressure follows its target and whether exhaust feedback shows the expected air-fuel result. That turns the system into several connected control loops:
- The low-pressure side must supply the high-pressure pump without leaks or restriction.
- The high-pressure side must build and regulate rail pressure as operating demand changes.
- The injectors must deliver the commanded quantity consistently from cylinder to cylinder.
- Air-fuel and oxygen-sensor feedback must remain believable so the PCM can evaluate mixture control.
- Ignition, air delivery, EVAP purge, exhaust integrity, and base-engine condition must be sound enough that their faults do not imitate a fuel-system problem.
A fuel-related DTC reports which monitored behavior did not meet expectation. It does not, by itself, identify the component that must be replaced.

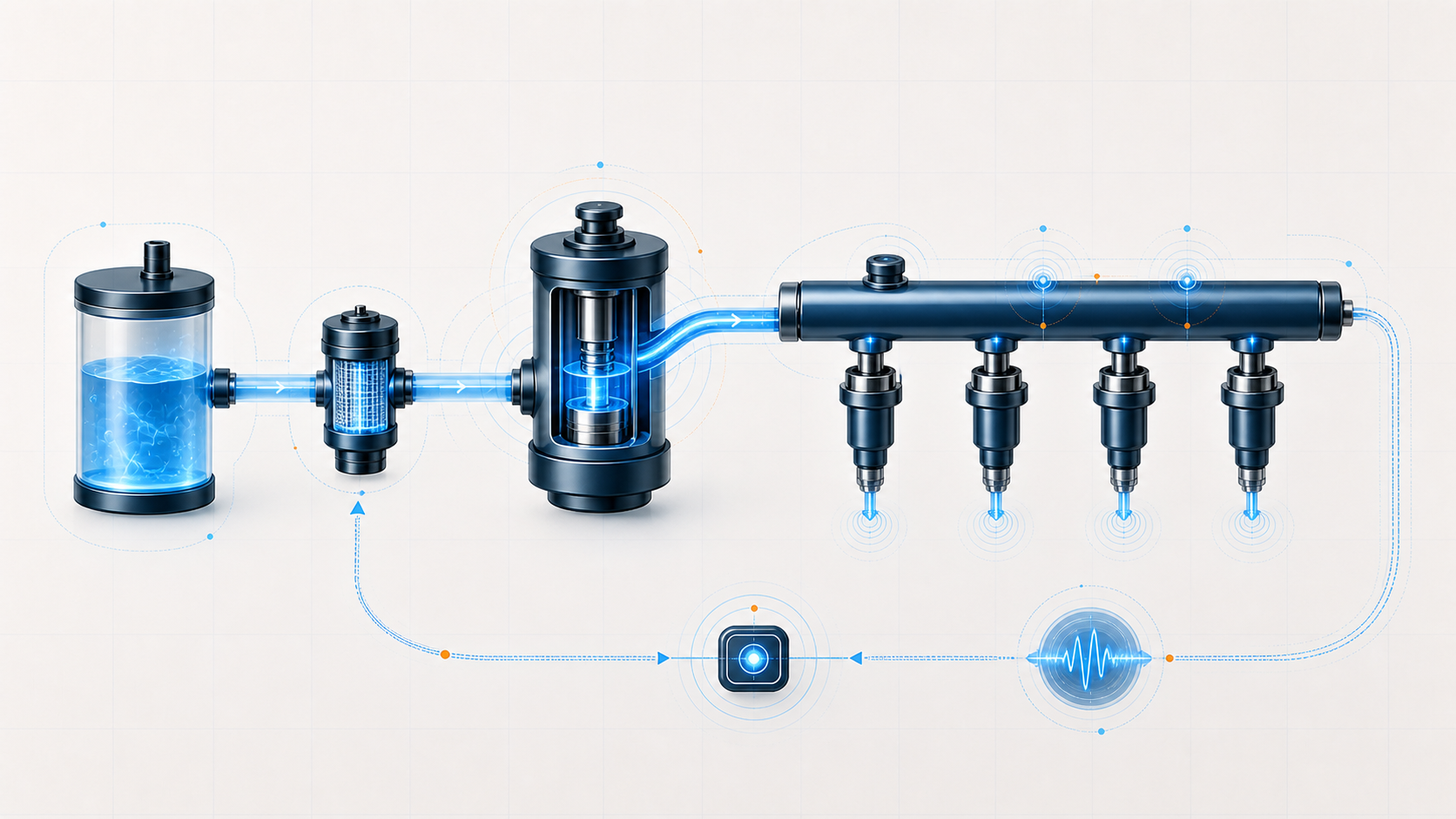

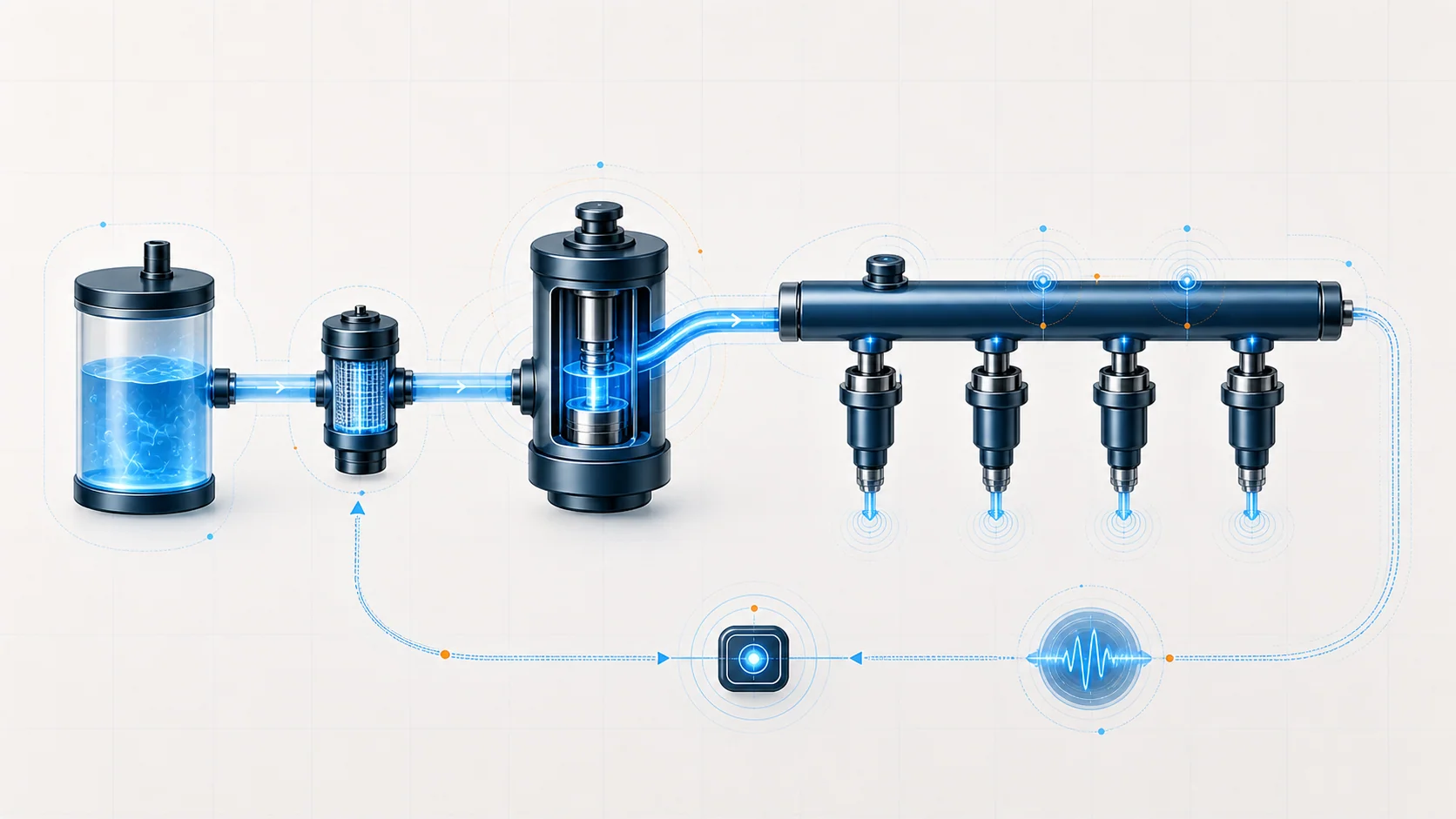

The main functional sections
The exact component design and location vary by model year and body configuration, but diagnosis revolves around these functional sections.
- Fuel tank, in-tank supply, and low-pressure lines: This side moves fuel from the tank to the engine compartment and must maintain an adequate, sealed supply to the high-pressure pump.
- High-pressure fuel pump and mechanical drive: The engine drives the pump mechanically. Pump control and the condition of its driving cam are both relevant when direct-injection pressure cannot follow the target.
- Direct-injection fuel rail and pressure feedback: The rail distributes high-pressure fuel to the injectors. Pressure sensing lets the PCM compare the system's response with commanded pressure.
- Direct injectors: Each injector meters fuel into one combustion chamber. Electrical operation, sealing, flow, and cylinder-to-cylinder consistency can all affect mixture and variation codes.
- PCM fuel control: The PCM combines operating conditions, pressure feedback, airflow information, and exhaust-sensor feedback to command pressure and injection.
- Upstream air-fuel and downstream oxygen feedback: Sensor information before and after the catalyst helps the PCM evaluate mixture behavior. An exhaust leak, sensor fault, or another primary engine problem can distort that evidence.
- Related air, ignition, EVAP, exhaust, and mechanical systems: These are not all fuel-system components, but a purge fault, intake leak, ignition problem, compression loss, valve-clearance issue, or exhaust fault can change the measured combustion result.
How pressure control and mixture feedback work together
The PCM calculates a fuel-pressure target and an injection requirement from current operating conditions. The low-pressure side feeds the high-pressure pump, the pump supplies the rail, and the pressure signal shows whether the system is responding. The injectors then meter fuel into individual cylinders.
Exhaust feedback provides a second view of the result. If the measured mixture requires excessive correction, the PCM can set a system-wide mixture DTC even when rail pressure appears plausible. If the downstream oxygen response shows an excessive rich-side post-catalyst correction, P2097 can set. If one cylinder's learned fuel contribution differs from the others, a cylinder air-fuel variation DTC can set.
These observations overlap, but they answer different questions:
- Rail-pressure data asks whether fuel pressure follows the command.
- Fuel-trim data asks whether the engine's overall mixture needs abnormal correction.
- Post-catalyst data asks whether the downstream exhaust response matches the expected result.
- Cylinder-variation data asks whether one cylinder behaves differently from the group.
The diagnostic goal is to determine which observation is primary and which is a consequence.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0087 | Direct-injection pressure lower than target | Whether low-pressure supply, leaks, pressure feedback, high-pressure pump control, pump drive, or another related fault prevents the rail from reaching the expected pressure |
| P0088 | Direct-injection pressure higher than target | Whether the pressure signal is believable and whether high-pressure control can reduce rail pressure as commanded |
| P0172 | System-wide rich mixture correction | Whether fuel pressure, injector delivery, airflow information, purge flow, oil or fuel contamination, and air-fuel feedback explain the rich result |
| P2097 | Post-catalyst fuel trim too rich | Whether primary mixture or cylinder faults, exhaust integrity, or sensor feedback explain the rich-side post-catalyst deviation |
| P219C | Cylinder 1 air-fuel variation | Whether cylinder 1 differs because of injector, ignition, compression, valve-clearance, intake, exhaust, or related sensor influences |
| P219E | Cylinder 3 air-fuel variation | The same cylinder-comparison logic as the code family, specifically focused on cylinder 3 for the verified four-cylinder source vehicle |
The categories prevent a common mistake: using one fuel-pressure result to explain every rich, downstream-feedback, or cylinder-specific DTC.
What the driver or technician may notice
Symptoms depend on when and how the fault occurs. Possible observations include:
- a malfunction indicator lamp with few other symptoms;
- hesitation, reduced power, or poor response under load;
- rough idle, uneven running, or a stall;
- a rich fuel odor or reduced fuel economy;
- an intermittent fault that appears only under operating conditions similar to the stored snapshot;
- related injector, ignition, misfire, pressure-sensor, air-fuel sensor, or cylinder-variation DTCs.
None of these symptoms identifies a failed pump or injector by itself. The stored code combination and captured operating data are more useful than the symptom alone.
Fuel safety comes before diagnosis
Gasoline is flammable, and the direct-injection side can retain hazardous pressure after the engine is switched off. Do not loosen a fuel connection to see whether pressure is present.
Work in a ventilated area away from ignition sources. Wear the protection specified by the applicable procedure, relieve fuel pressure by the approved method, and follow the required battery-disconnection sequence before opening the system. Use only fittings, gauges, and containment methods approved for the section being tested. After any line, pump, rail, or injector work, reassemble the system completely and perform the specified fuel-leak inspection before running the engine normally.
If liquid fuel leakage is present, stop and correct that hazard before continuing diagnosis.
Failure categories represented by these DTCs
1. The high-pressure side is not receiving enough fuel
Low direct-injection pressure can begin upstream of the high-pressure pump. An inadequate low-side supply, a restriction, a leak, or an out-of-fuel event can leave the pump unable to build the commanded rail pressure.
This is why a low rail-pressure code does not automatically condemn the high-pressure pump. First prove that the pump is being supplied correctly under the conditions that produce the fault.
2. High-pressure generation or control cannot follow the command
The high-pressure pump, its mechanical drive, its control function, rail-pressure feedback, and related circuits must work as a system. Pressure that stays below target and pressure that rises above target are different failure directions.
Compare command, response, and sensor plausibility before choosing a component. A mechanical drive concern, a control problem, and inaccurate feedback can produce different evidence even when the same pump appears in the diagnostic tree.
3. The engine is running rich, or the feedback says it is
P0172 is broader than a rail-pressure code. Excess fuel delivery can create a rich condition, but so can an injector problem, abnormal purge flow, contaminated oil or fuel, or misleading airflow and air-fuel feedback. The correct path checks the overall mixture and its inputs instead of assuming that rich always means high fuel pressure.
4. The downstream exhaust result does not match expectation
P2097 is a post-catalyst fuel-trim-too-rich fault. A primary rich-mixture problem, injector or ignition issue, misfire, exhaust leak or restriction, or sensor-feedback concern can create or distort that rich-side downstream result. Diagnose related upstream faults first rather than replacing the downstream sensor solely because its data exposed the problem.
5. One cylinder differs from the others
P219C and P219E belong to a cylinder air-fuel variation family. A cylinder-specific result can come from injector delivery, ignition, compression, valve clearance, or an intake or exhaust condition affecting that cylinder. It can also be influenced by an unresolved system-wide sensor or mixture fault.
Cylinder comparison is therefore a direction for isolation, not proof that the named cylinder needs an injector.
A practical diagnostic strategy
Step 1: Confirm applicability and preserve the evidence
Verify model year, body configuration, engine, transmission, and the service procedure that applies to the vehicle. Record confirmed and pending DTCs, freeze-frame or on-board snapshot data, fuel trims, pressure data, and relevant sensor values before clearing anything.
Step 2: Classify the code before testing parts
Place the concern into a working category:
- rail pressure too low;
- rail pressure too high;
- system-wide rich correction;
- post-catalyst mixture response;
- cylinder-specific air-fuel variation.
This determines whether the next useful evidence is pressure supply, pressure command and response, global mixture data, exhaust feedback, or cylinder comparison.
Step 3: Resolve related primary DTCs first
The verified procedures give priority to related fuel-pressure sensor, injector, ignition, misfire, air-fuel sensor, and other primary DTCs. A circuit or sensor fault can make later functional results unreliable. Diagnose the code combination as a hierarchy, not as six independent parts requests.
Step 4: Inspect for hazards and basic faults
Check for liquid fuel leakage before running functional tests. Inspect accessible lines, connections, recently disturbed components, electrical connectors, intake and exhaust areas, and the condition of fluids relevant to the applicable procedure. Do not disconnect pressurized components during this inspection.
Step 5: Separate low-pressure supply from direct-injection pressure
For a low-pressure complaint, prove that the high-pressure pump receives an adequate supply before judging its output. Then compare commanded and measured direct-injection pressure using the scan-tool data and function tests specified for the exact vehicle.
For a high-pressure complaint, determine whether the displayed pressure is plausible and whether the control system can move actual pressure toward the command. Do not treat a sensor value as a mechanical measurement until its plausibility has been checked.
Step 6: Diagnose mixture faults as a complete control loop
When the fault is rich or post-catalyst, review pressure, injector behavior, airflow information, purge influence, exhaust integrity, and upstream and downstream sensor feedback in the order specified by service information. Use captured conditions to reproduce the problem instead of relying only on warm idle data.
Step 7: Isolate cylinder-specific variation
For P219C or P219E, correct primary sensor, injector-circuit, ignition, and misfire faults first. Then compare the affected cylinder with the others using the applicable cylinder air-fuel test and follow-up checks. Injector function, ignition, compression, valve clearance, and local intake or exhaust effects may all need to be separated.
Step 8: Verify the repair, not just the absence of a code
After repair, perform the required leak check and restore every fuel connection and electrical connection. Complete any specified reset, learning, function test, or monitor verification. Confirm that commanded and actual pressure behave correctly, mixture or cylinder results pass, no related pending DTC returns, and readiness has advanced as expected.
Clearing the code and seeing the light remain off before the monitor runs is not repair verification.
Match the repair to the proven failure
The eventual repair may involve a leaking or restricted low-pressure connection, supply-side component, pressure sensor or circuit, high-pressure pump control, worn pump drive, injector or injector circuit, air-fuel or oxygen-sensor fault, exhaust leak, ignition problem, or mechanical cylinder condition. It may also involve correcting fuel or oil contamination or another system that distorted mixture feedback.
The correct repair is the one supported by the applicable test path. Replacing a high-pressure pump for every P0087, all injectors for every variation code, or an oxygen sensor for every P2097 skips the isolation work that these procedures are designed to perform.
Final takeaway
On the 2016-2024 Honda Civic 1.5 Turbo Gas, fuel diagnosis is not one pressure test and it is not one sensor reading. It is a comparison between low-side supply, commanded and actual direct-injection pressure, injector delivery, exhaust feedback, and cylinder-to-cylinder behavior.
Start with applicability and stored evidence, classify the DTC, make the system safe, resolve related primary faults, and isolate the failed section before replacing parts. The linked STEP DTC guides provide model-specific educational context; the exact service information for the vehicle being repaired controls the test conditions, specifications, component access, and repair verification.
