Applicability basis: Official Honda specifications and feature guides confirm that a turbocharged 1.5-liter gasoline engine was available in selected U.S.-market Civic trims across the 2016-2024 model-year range. The detailed diagnostic and service evidence used for this overview was verified for a 2024 Honda Civic Sedan L4-1.5L Turbo (L15B7). Exact scan-tool commands, thresholds, component locations, test conditions, and repair procedures must come from service information for the vehicle being repaired.

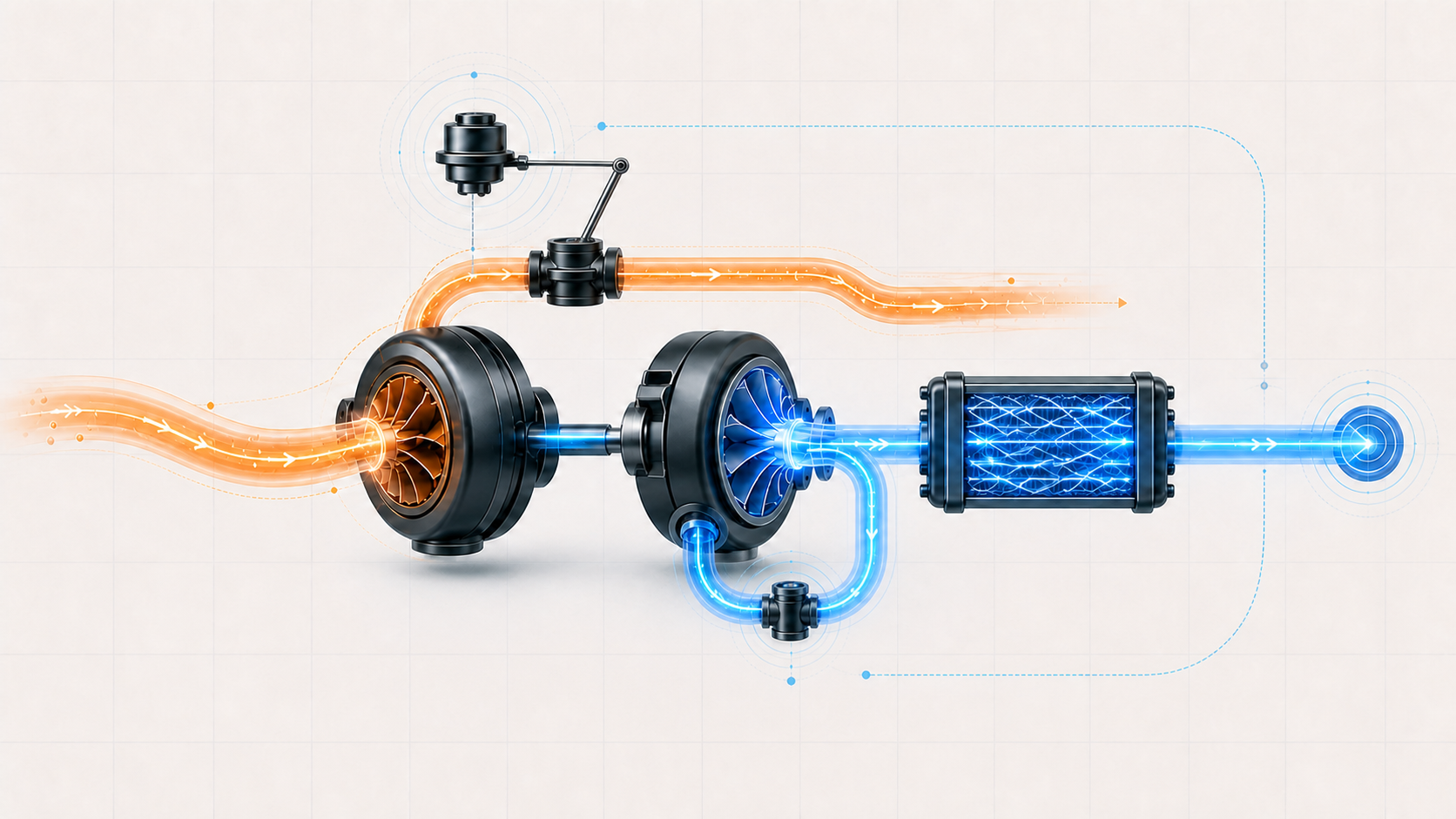

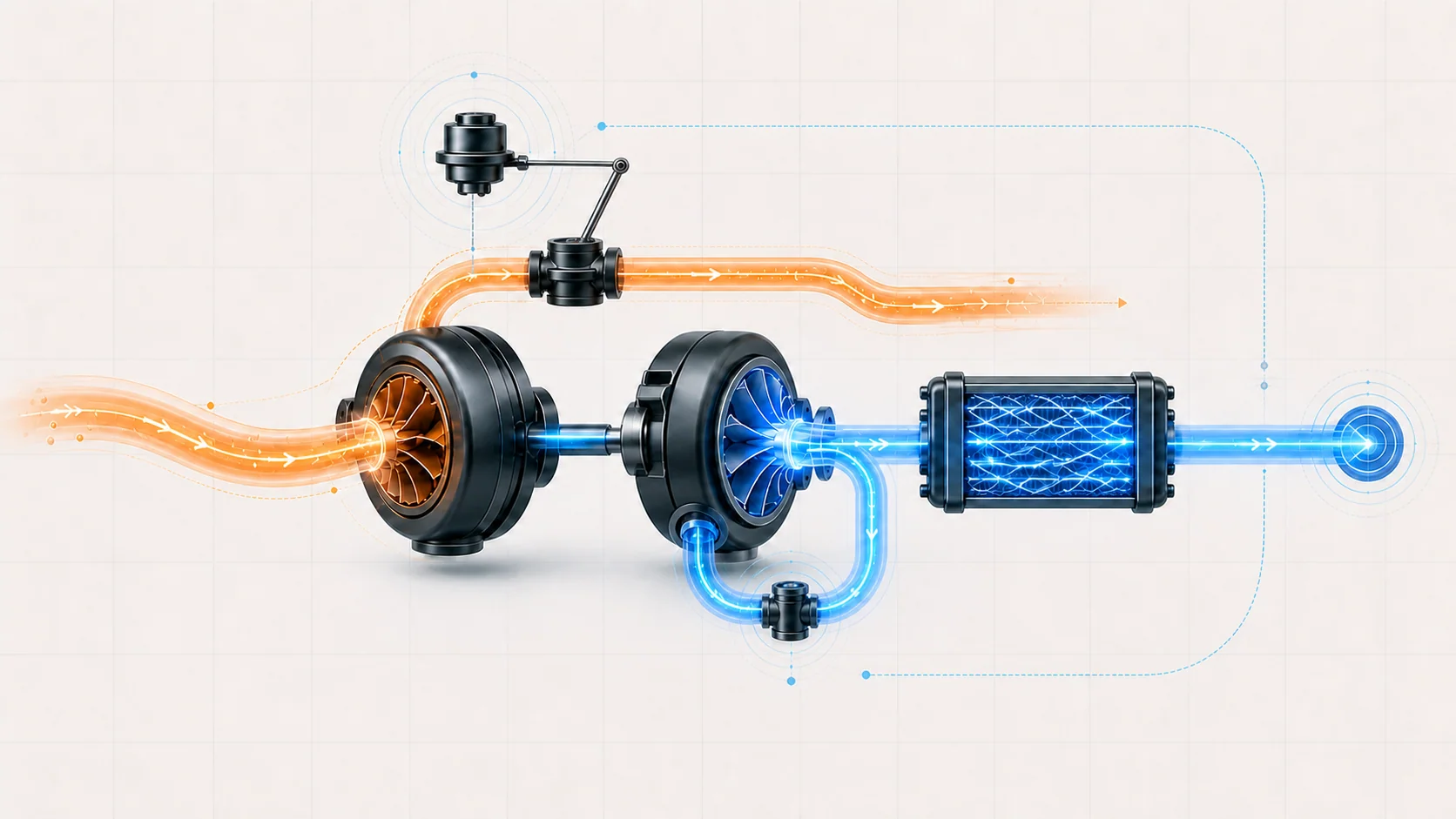

What the turbocharger system does
The turbocharger uses exhaust-gas energy to move more air through the engine than atmospheric pressure alone could provide. Exhaust flow spins a turbine. A shaft connects that turbine to a compressor, which draws in filtered air and pressurizes it. The compressed air then passes through the charge-air cooler and travels to the throttle body and intake manifold.
Producing pressure is only part of the job. The PCM must regulate boost so delivered airflow matches engine demand, and the bypass system must manage compressor-side pressure and drag during rapid throttle changes. On this Civic configuration, that regulation depends on several connected functions:
- The intake and charge-air path must be sealed and unrestricted.
- Exhaust flow must reach and drive the turbine without a disabling leak or restriction.
- The electric wastegate actuator must move the wastegate toward the commanded position and report believable position feedback.
- The bypass valve must manage compressor-side pressure when operating conditions change rapidly, especially during throttle closure.
- Airflow and pressure sensors must agree closely enough for the PCM to judge whether actual air delivery matches its model and boost target.
A turbo-related DTC identifies a monitored behavior that did not meet expectation. It does not, by itself, prove that the turbocharger assembly has failed.
The main functional sections
The exact hardware arrangement can vary by model year and configuration, but diagnosis revolves around these sections.
- Air inlet and airflow measurement: The air cleaner, inlet ducting, MAF sensing, and related connections establish the air entering the compressor. A restriction, leak, contamination, or implausible signal can distort the PCM's airflow calculation.
- Turbine and compressor: Exhaust energy spins the turbine and common shaft; the compressor raises intake-air pressure. Bearing, wheel, housing, or flow problems can reduce output, but mechanical failure is only one category of underboost cause.
- Charge-air cooler and pressure ducting: Pipes, hoses, joints, and the charge-air cooler carry compressed air to the throttle body. A leak here can vent air that the compressor produced, so the engine receives less airflow and pressure than commanded.
- Electric wastegate actuator and position feedback: The PCM commands wastegate movement to control how much exhaust goes through the turbine. Position feedback lets it compare requested movement with actuator response.
- Turbocharger bypass valve and control solenoid: The bypass path manages compressor pressure when the throttle closes or operating demand changes. A valve, solenoid, control-line, or hose fault can affect boost response and underboost diagnosis.
- Boost-pressure and airflow feedback: The turbocharger boost-pressure data channel gives the PCM a direct view of boost-system response. MAP, MAF, throttle, and engine-speed information provide separate manifold-pressure and airflow-model evidence. These inputs are related, but they are not interchangeable.
- Related PCV, EVAP, intake, and exhaust paths: Unmetered air, purge flow, crankcase ventilation, or an exhaust leak or restriction can change the same evidence used to judge turbo performance.
How the PCM regulates boost
Closing the wastegate routes more exhaust through the turbine, increasing turbine and compressor speed. Opening it allows more exhaust to bypass the turbine, reducing the energy available to the compressor. The PCM varies wastegate position instead of treating it as a simple on/off device.
The control decision depends on operating demand and sensor feedback. The PCM can compare target boost with actual pressure and can compare commanded wastegate movement with reported actuator position. It also checks whether airflow measured by the MAF sensor agrees with airflow inferred from manifold pressure and engine operation.
The bypass valve performs a different job. When the throttle closes while the compressor is moving a large volume of air, pressure can build on the compressor outlet side. Opening a bypass path helps manage that pressure and supports smoother response when demand returns. A bypass fault can therefore influence boost behavior without being a wastegate failure.
These comparisons overlap, but they answer different questions:
- Target versus actual boost asks whether the whole air-delivery system produced the requested pressure.
- Commanded versus reported wastegate position asks whether the actuator and its feedback followed the control request.
- MAF versus calculated airflow asks whether independent views of engine airflow agree.
- Intake-leak logic asks whether air is entering, leaving, or being estimated through a path the model does not expect.
The diagnostic task is to decide which mismatch is primary and which is a consequence.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0045 | Electric wastegate actuator motor-current or circuit fault | Whether the actuator, its motor circuits and connectors, or the control path can carry out the commanded wastegate test |
| P006A | MAF/MAP airflow correlation | Whether MAP and related inputs are credible, the intake and PCV paths are intact, and measured airflow responds plausibly |
| P0299 | Turbocharger underboost | Whether boost-pressure feedback is credible and whether intake supply, charge-air sealing, bypass control, wastegate response, purge plumbing, exhaust flow, and the turbocharger allow actual boost to reach its target |
| P2279 | Intake-air leak or unmetered-air pattern | Whether the intake, PCV, EVAP purge, throttle, and turbo-to-throttle air paths contain a leak or abnormal flow influence |
| P2563 | Wastegate actuator position feedback out of range | Whether the actuator position signal, its reference/signal/ground circuits, the turbocharger-side mechanism, or the control module path explains the abnormal feedback |
The code combination matters. An airflow-correlation or intake-leak fault can explain an underboost result without a failed turbo. An actuator circuit or position fault may make a boost-performance test unreliable until the electrical fault is resolved.
What the driver or technician may notice
Possible observations include:
- a malfunction indicator lamp with little immediate change in drivability;
- weak, delayed, or inconsistent acceleration under load;
- reduced-power operation or boost limited by the control strategy;
- an air-rush, hiss, whistle, or flutter associated with a leaking or incorrectly controlled air path;
- unstable idle or low-speed operation when unmetered air, PCV, or purge flow is involved;
- an intermittent fault that appears only under conditions similar to the stored snapshot;
- multiple airflow, pressure, purge, or actuator DTCs that must be diagnosed in priority order.
No single symptom proves a damaged turbocharger. Noise can come from an air leak, exhaust leak, bypass-control concern, or unrelated rotating component, and low power can originate outside the boost system.
Safety comes before boost diagnosis
Turbocharger and exhaust components can remain hot enough to cause severe burns after the engine is switched off. Allow the vehicle to cool as required by the applicable procedure before touching the turbocharger, catalyst, exhaust connections, or nearby shields.
Charge-air plumbing can be pressurized during operation. Do not loosen a hose, pipe, clamp, or sensor to check for boost while the engine is running or the system is pressurized. After any duct or hose work, use the specified installation method and confirm that every joint and retainer is secure before a loaded test.
Turbocharger service can also open engine-oil and coolant connections. Follow the applicable OEM procedure for fluid containment and refill, any bleeding or priming required for that configuration, leak checks, startup, resets, and learning operations. If oil leakage, coolant leakage, loose charge plumbing, damaged rotating parts, or exhaust leakage near hot components is present, correct the hazard before continuing a road or loaded test.
Failure categories represented by these DTCs
1. Air cannot reach the compressor correctly
A restricted air cleaner or inlet, damaged duct, loose connection, or implausible MAF signal changes the air available to the compressor and the information used to calculate load. This can produce an airflow-correlation fault, contribute to underboost, or make later boost conclusions unreliable.
2. Compressed air escapes before reaching the engine
A leak at a hose, pipe, joint, charge-air cooler, throttle connection, or related air path allows compressor output to escape. The turbo may work harder while manifold pressure still falls short of target. Proving charge-air integrity therefore comes before condemning the turbocharger for P0299.
3. Wastegate control does not follow the command
The actuator motor, wiring, connector, position-feedback circuits, wastegate mechanism, or control path can prevent correct movement or make reported position unreliable. P0045 focuses on actuator motor-current or circuit behavior; P2563 focuses on position feedback. These codes overlap around the wastegate but do not establish the same failure.
4. The bypass system does not manage compressor pressure correctly
A bypass valve, solenoid, hose, or control-line concern can change boost response, especially during rapid throttle transitions. A functional result must be interpreted with the valve, solenoid, and plumbing considered together; hearing or commanding one action does not prove the entire bypass path is sealed and mechanically sound.
5. The PCM's airflow model is being distorted
MAF, MAP, throttle, PCV, EVAP purge, and intake sealing all affect the PCM's view of airflow. P006A and P2279 can identify a disagreement or leak pattern that overlaps with poor boost. Resolve these model and air-path concerns before using P0299 alone to judge turbo output.
6. Exhaust energy cannot drive the turbine as expected
An exhaust leak before or around the turbine can reduce energy reaching it. A restriction can also alter flow and pressure relationships. Turbine, compressor, shaft, wastegate, or housing damage may cause low boost, but mechanical turbocharger replacement belongs after the accessible air, control, sensor, and exhaust checks support that conclusion.
A practical diagnostic strategy
Step 1: Confirm applicability and preserve evidence
Verify the exact model year, body configuration, engine, transmission, software/calibration context, and applicable service procedure. Record confirmed and pending DTCs, freeze-frame or on-board snapshot data, boost target and actual values, wastegate commands and feedback, airflow, manifold pressure, throttle position, engine speed, and relevant purge information before clearing anything.
Step 2: Classify and prioritize the code set
Separate the concern into working categories:
- actuator motor circuit or current;
- actuator position feedback;
- airflow correlation;
- intake or unmetered-air leak;
- target-versus-actual underboost.
Follow the related-code priorities in the applicable procedure. A MAP, BARO, purge, sensor-reference, or actuator-circuit fault can undermine the evidence used by an underboost monitor.
Step 3: Perform a careful visual inspection
With the system safe and cool, inspect the air cleaner and inlet, compressor connections, charge-air pipes and cooler, throttle-body joint, PCV and purge paths, bypass-control plumbing, electrical connectors, wastegate linkage area, and accessible exhaust joints. Look for recent service disturbance, loose retainers, oil or coolant leakage, rub-through, cracks, restrictions, and heat damage.
Do not treat oil film inside charge plumbing as automatic proof of turbo failure. Interpret its amount and location using the applicable inspection criteria and the engine's oil-consumption evidence.
Step 4: Prove sensor and circuit credibility
Resolve related input or reference faults before judging boost performance. Treat turbocharger boost-pressure feedback as distinct from MAP-based manifold-pressure and airflow-model evidence. Check whether each applicable airflow and pressure value is plausible under the specified conditions and whether it responds logically as operating conditions change. For P0045 or P2563, use the applicable actuator and circuit path to separate the turbocharger-side assembly, wiring, connector, and PCM branch.
Step 5: Separate charge-air integrity from control response
Use the approved leak-test method for the exact vehicle; do not improvise with uncontrolled shop air. Confirm that the inlet and charge-air system is sealed, then evaluate bypass-valve and wastegate operation with the specified scan-tool functions and observation method. A command without the expected response is a direction for isolation, not immediate authorization to replace the turbocharger.
Step 6: Compare command with actual performance
Reproduce the stored operating region only when it is safe and legal to do so. Compare target boost with the applicable boost-pressure feedback channel, then interpret wastegate command and feedback alongside MAF airflow, manifold pressure, throttle position, and engine speed. Determine whether the failure is persistent, load-dependent, temperature-dependent, or linked to a transition such as throttle closure.
Step 7: Evaluate exhaust flow and mechanical condition
If intake sealing, sensor credibility, bypass control, and wastegate electrical response are supported, inspect for exhaust leakage or restriction and follow the applicable mechanical turbocharger checks. Do not infer bearing, wheel, shaft, or housing failure from underboost alone.
Step 8: Verify the complete repair
After repair, secure every air, exhaust, oil, coolant, vacuum, and electrical connection disturbed. Complete required resets, learning procedures, fluid checks, and leak inspections. Reproduce the relevant monitor conditions, confirm command and response agree, confirm no related pending DTC returns, and make sure the vehicle no longer enters a boost-limiting strategy.
Clearing codes and seeing the warning light remain off before the monitor runs is not repair verification.
Match the repair to the proven failure
The repair may involve a damaged duct or charge-air joint, leaking cooler, bypass valve or solenoid, control hose, actuator circuit, connector, wastegate mechanism, airflow or pressure-sensor concern, PCV or purge fault, exhaust leak or restriction, turbocharger mechanical fault, or—only after the required branches pass—a control-module concern.
The correct repair is the one supported by the applicable test path. Replacing the turbocharger for every P0299, replacing the MAF sensor for every P006A, or replacing the actuator assembly for every P2563 skips the isolation that the monitors and procedures are designed to provide.
Final takeaway
On the 2016-2024 Honda Civic 1.5 Turbo Gas, boost diagnosis is a comparison between requested airflow and pressure, actual airflow and pressure, wastegate command and position, bypass behavior, and the integrity of the intake and exhaust paths.
Begin with applicability and stored evidence, resolve higher-priority input and circuit faults, inspect the complete air path, then separate leakage, control, sensor, exhaust, and mechanical causes. The linked STEP DTC guides provide model-specific educational context; the exact service information for the vehicle being repaired controls the specifications, commands, access procedures, and repair verification.
