What the oil-pressure monitoring system does
The oil-pressure monitoring system helps the powertrain control module (PCM) determine whether the engine-oil pressure signal is believable and whether the driver should be warned. It connects three different kinds of evidence: the engine's actual oil supply and pressure, the electrical signal produced by the engine oil pressure (EOP) sensor, and the warning or diagnostic information distributed to other modules and the instrument cluster.
Private service-information targets confirm 2015 and 2025 F-150 4WD 2.7L turbo endpoints, while the linked STEP guides use the 2015-2025 educational grouping. The detailed mechanical pressure-test procedure reviewed for this overview is from the exact 2025 application. Confirm the VIN, engine application, calibration, oil specification, sensor and connector design, control strategy, and current service procedure before testing. Exact values and procedures can differ within the grouped range.
An oil-pressure DTC does not identify a failed part by itself. A normal electrical signal cannot prove that oil pressure is mechanically correct, and a warning displayed in the cluster does not prove the cluster caused the warning. Diagnosis must separate mechanical pressure, sensor and circuit integrity, PCM interpretation, and message delivery.
The main functional sections
- Oil supply and pressure: Oil level, oil condition, pickup and flow paths, pump operation, restrictions, clearances, and leakage all influence the pressure available in the engine.
- Engine oil pressure sensor: The EOP sensor converts pressure at its measurement point into an electrical signal the PCM can evaluate.
- Reference, signal, and return circuits: The sensor requires intact electrical paths. Opens, shorts, poor terminal contact, corrosion, or shared-circuit problems can create a false pressure indication.
- PCM monitoring: The PCM evaluates the pressure signal against operating conditions and its diagnostic strategy. On applications with commanded oil-pressure control, the actual and commanded states must be considered together.
- Network and instrument-cluster warning: The PCM can distribute status or warning information to the cluster through the vehicle network. A display complaint can therefore be a result of a powertrain fault, a communication fault, or a display-side problem.
- Mechanical verification equipment: A correctly installed mechanical gauge gives an independent pressure measurement when the service procedure calls for it. This is the dividing line between an electrical indication problem and an actual lubrication-pressure problem.

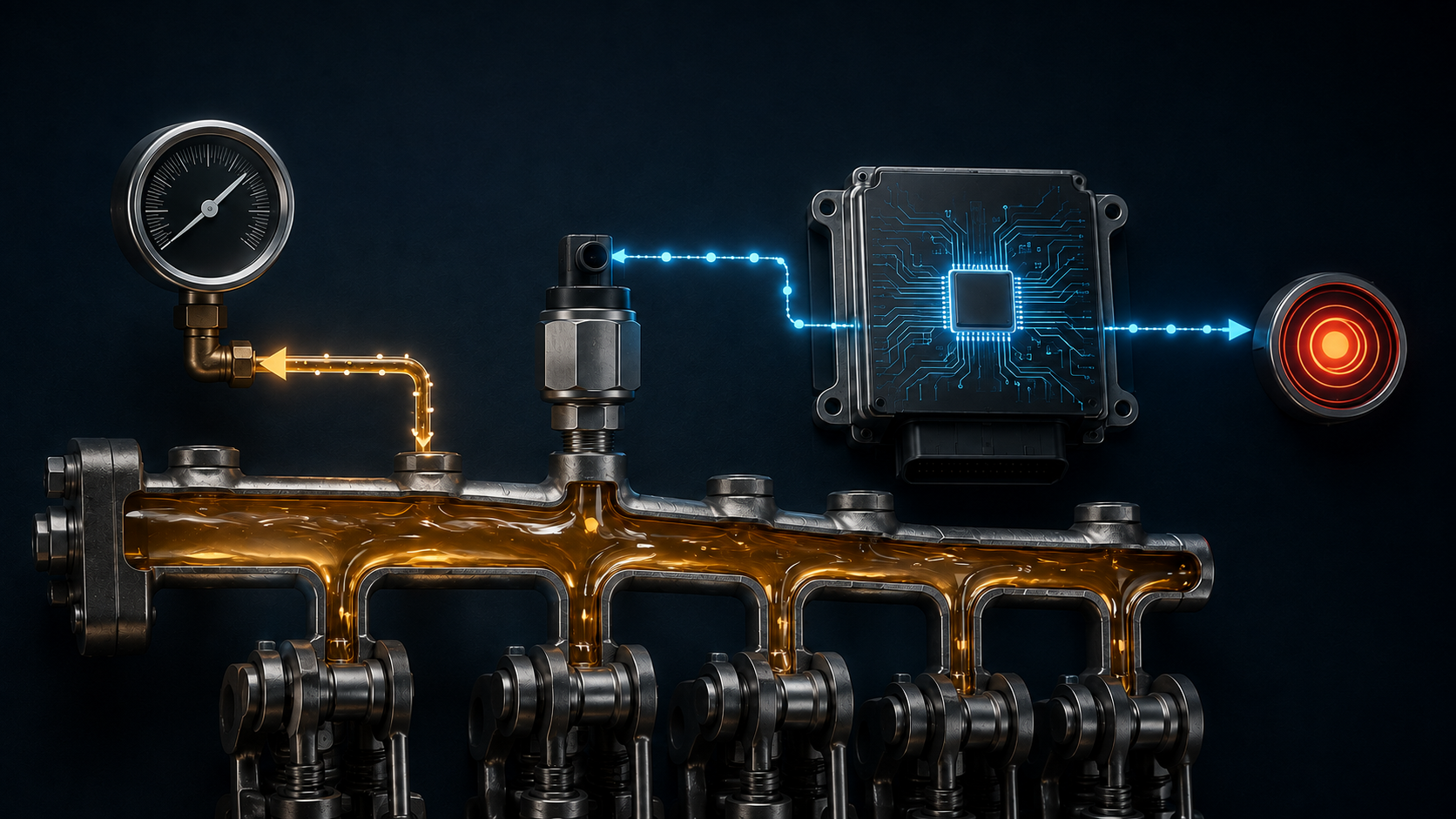

How mechanical pressure and the electrical signal work together
With the engine running, the lubrication system creates pressure as oil is moved through the engine. The EOP sensor reports the pressure-related condition to the PCM. The PCM uses that input with engine state and other information to decide whether the signal is plausible, whether a DTC should set, and whether a warning should be sent to the cluster.
This creates two diagnostic questions. First, is the engine actually producing the required oil pressure under the specified test conditions? Second, does the electrical signal accurately represent that pressure? A low signal can come from genuinely low pressure, but it can also come from a sensor, connector, reference, signal, or return-circuit fault. A range/performance fault can occur when the signal is present but does not behave as the monitor expects.
The exact 2025 pressure-test procedure also shows why control state matters: the applicable sensor and oil-pressure-control hardware must remain correctly configured while the mechanical measurement is made. That detail must not be generalized into a universal test method. Always use the procedure for the exact vehicle rather than improvising gauge connections or control commands.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0521 | Engine oil pressure sensor range/performance | Whether the pressure signal is plausible for the operating condition and whether the cause is mechanical pressure, sensor response, wiring, connection quality, power/ground integrity, or another input affecting the monitor |
| P0522 | Engine oil pressure sensor circuit low | Whether the low electrical input represents actual low pressure or a fault in the sensor, reference, signal, return, connector, shared circuit, or controller path |
P0521 is not an instruction to replace the sensor. P0522 is not proof that the pump has failed. Treat each code as a test direction: preserve the evidence, confirm the complaint, determine whether the signal or the pressure is wrong, and repair the proven cause.
What the driver or technician may notice
Possible observations include:
- an oil-pressure warning or message;
- a malfunction indicator lamp with P0521, P0522, or companion codes;
- a warning that appears only under a repeatable operating condition;
- a signal or warning that changes when the harness or connector is disturbed;
- abnormal mechanical noise when pressure is genuinely inadequate;
- no obvious drivability complaint even though the PCM has detected an electrical or plausibility fault;
- disagreement between scan data, a cluster warning, and a mechanically verified pressure reading;
- communication, power-supply, reference-voltage, or instrument-cluster codes that change diagnostic priority.
Do not use the absence of noise as proof that pressure is safe. Conversely, do not condemn internal engine parts from an electrical warning alone.
Safety before testing
If an oil-pressure warning is accompanied by abnormal mechanical noise, confirmed low pressure, or another sign of lubrication loss, shut the engine off and do not continue running it merely to gather more scan data. Continued operation can cause rapid engine damage.
Engine oil and nearby exhaust or turbocharger components can be hot. Allow safe cooling time, wear eye protection and suitable gloves, and keep clear of belts, fans, and other moving parts whenever the engine must run. A mechanical pressure gauge, hose, and adapter must be rated, secured, and installed exactly as the current service procedure requires. Check for leaks before raising engine speed, and never place your body in the path of pressurized oil.
The exact service procedure may require a specific electrical or battery state so the PCM cannot command an unexpected pressure-control condition during testing. Follow that procedure; do not disable circuits, unplug control hardware, or improvise a test configuration. Use terminal-safe probes and the correct wiring information for the exact vehicle.
Common failure categories
1. Oil level, condition, viscosity, or external leakage
An incorrect level, unsuitable or degraded oil, aeration, contamination, or a leak can change actual pressure. Verify the vehicle is positioned as specified, allow the required drain-back time, and check the oil using the exact service information. Correct an obvious basic condition before interpreting an advanced test, but preserve evidence if the level or oil condition may reveal the root cause.
2. Genuine mechanical pressure problem
Restricted oil supply, pump or pressure-control problems, excessive internal leakage, worn clearances, or other mechanical faults can produce inadequate pressure. A mechanical gauge test performed under specified conditions is the deciding evidence. Do not substitute a warning state, scan value, or generic specification for the exact mechanical test.
3. EOP sensor fault
The sensor can be biased, intermittent, internally open or shorted, contaminated at its connection, or unable to respond correctly. Prove the circuit and actual pressure before replacement. After replacement, inspect for leakage and verify that the signal and warning behavior are credible.
4. Connector or harness fault
Oil intrusion, water, corrosion, spread terminals, poor retention, chafing, heat damage, or an intermittent open or short can distort the signal. Inspect routing and terminal condition, then use directed circuit tests and a controlled wiggle test when appropriate. Avoid damaging terminals with oversized probes.
5. Reference, return, or shared-circuit problem
A shared reference or return fault can affect more than the oil-pressure input. Review companion DTCs and compare related sensor behavior before isolating one component. Repair the circuit that fails the test rather than replacing every sensor attached to it.
6. PCM, network, or cluster-side concern
The PCM interprets the sensor; the cluster displays information delivered through the vehicle network. If mechanically verified pressure and PCM evidence agree but the display does not, investigate message delivery, module power/ground, communication DTCs, and cluster operation. Controller replacement belongs at the end of a documented diagnostic path, not at the beginning.
A practical diagnostic workflow
1. Preserve the evidence
Record all module DTCs, status, freeze-frame or snapshot data, warning messages, engine temperature, engine speed, oil level and condition, and the circumstances that produced the complaint. Note recent oil service, engine repair, sensor work, harness work, collision damage, or jump-start history.
2. Decide whether it is safe to run the engine
Check the oil level and look for severe leakage before restarting. If the engine is noisy, pressure loss is strongly suspected, or the warning occurred with signs of mechanical distress, stop and move directly to the applicable mechanical inspection or pressure-test procedure.
3. Scan the complete vehicle
Do not read only powertrain codes. Network, cluster, power-supply, reference-circuit, or other sensor codes may explain why the warning and PCM evidence disagree. Resolve higher-priority communication or power faults before blaming the EOP sensor.
4. Inspect the basics
Verify oil level and condition, then inspect the sensor area, connector, accessible harness, grounds, and signs of leakage or recent disturbance. Look for a condition that changes with heat, vibration, engine movement, or harness position.
5. Separate the signal path from actual pressure
Use the exact wiring diagram and directed tests to evaluate the sensor circuits without damaging terminals or loading a controller circuit incorrectly. If the electrical evidence remains plausible but actual pressure is uncertain—or if the procedure directs it—perform the exact mechanical gauge test. The gauge result and electrical result must be compared under matching operating conditions.
6. Test the warning path only after the pressure evidence is clear
If the PCM sees a credible normal condition but the cluster continues to warn, diagnose the message and display path. If the PCM input itself is wrong, repair that input path first. This ordering prevents a visible warning from distracting you from the module that originated it.
7. Repair only the proven cause
Repair a terminal or wire that fails inspection or testing, replace a sensor that fails directed evaluation, or continue with the mechanical engine procedure when the independent pressure measurement is incorrect. Do not use parts substitution as the primary test.
8. Verify the repair
Restore all connectors and control hardware, confirm oil level and leak-free operation, clear DTCs only when appropriate, and repeat the conditions that produced the fault. Verify stable evidence in the PCM, correct cluster behavior, no returning codes, and—when measured—acceptable mechanical pressure under the exact specified conditions.
What not to do
- Do not keep a noisy engine running with an active oil-pressure warning.
- Do not assume a low sensor signal proves low mechanical pressure.
- Do not assume a normal-looking scan value replaces a mechanical test when the procedure requires one.
- Do not install a generic gauge or apply a generic pressure specification across 2015-2025.
- Do not unplug pressure-control hardware or alter battery state unless the exact procedure requires it.
- Do not pierce wires, spread terminals, or apply battery voltage to sensor or PCM circuits.
- Do not replace the PCM, cluster, sensor, or oil pump without evidence that isolates that component or system.
The diagnostic principle to remember
Treat oil-pressure diagnosis as three linked proofs: actual mechanical pressure, truthful electrical reporting, and correct warning delivery. Establish which proof fails before choosing a repair. This protects the engine, prevents an electrical fault from being mistaken for internal damage, and prevents a real lubrication problem from being dismissed as “just a sensor.”
