What the airflow and load sensing system does

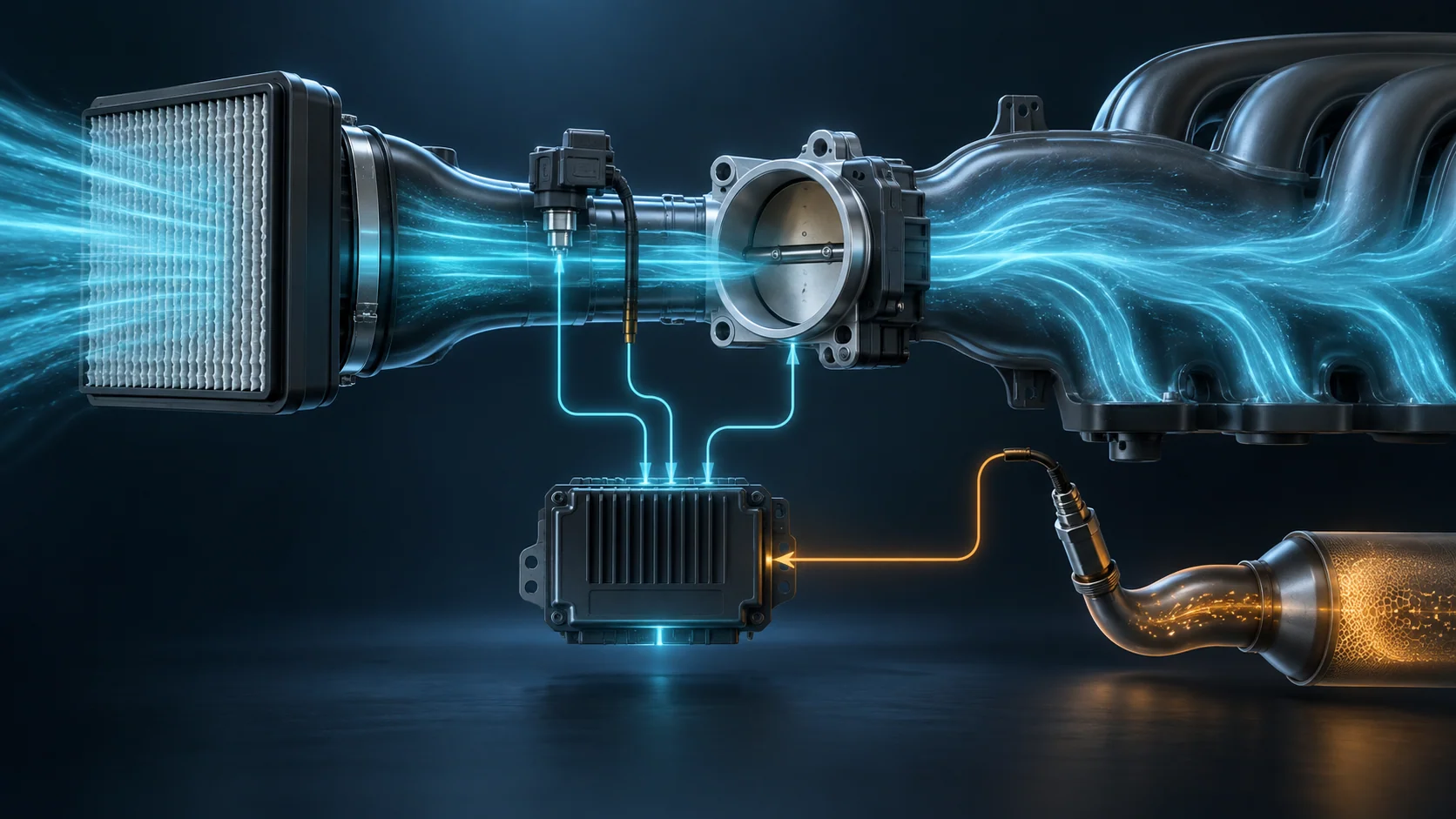

The airflow and load sensing system tells the powertrain control module (PCM) how much air the 7.3L engine is using and whether that air agrees with throttle position, engine speed, pressure-related evidence, temperature, and combustion feedback. The PCM uses that relationship to calculate engine load, command fuel and spark, control the electronic throttle, monitor emissions, and decide whether the engine is responding plausibly.
The linked STEP guides use the 2020-2025 Ford F-250 Super Duty 7.3L gasoline educational grouping. The detailed system and pinpoint-test evidence reviewed for this overview comes from the exact 2025 F-250 4WD Super Duty 7.3L application. Confirm the VIN, engine, calibration, sensor arrangement, connector information, and current service procedure before testing. Exact monitor enabling conditions, scan-data names, values, and procedures can differ within the grouped range.
An airflow or lean DTC does not prove that the MAF sensor has failed. The signal may be electrically correct but biased, air may bypass the measured path, the inlet may be restricted, the PCV or purge system may add unexpected flow, fuel delivery may be insufficient, or another input may make the PCM's comparison fail.
The main functional sections
- Air inlet, filter, housing, and ducting: These parts must deliver air without restriction, collapse, loose joints, damaged seals, or unintended openings.
- Mass air flow sensing: The MAF input represents air passing the measured inlet path. A contaminated element, disturbed flow, circuit fault, or air leak can make that evidence inaccurate.
- Throttle command and position: The electronic throttle body meters air. The PCM knows its command and monitors actual throttle position, so it can compare requested flow with engine response.
- Pressure, temperature, and engine-speed context: These inputs help the PCM estimate what airflow and load should be under the present operating condition.
- PCV, vacuum, and purge paths: These controlled paths can add air or vapor downstream of the measurement point. A leak, restriction, disconnection, or valve fault changes the expected relationship.
- Fuel and oxygen feedback: The PCM uses exhaust oxygen feedback and learned fuel correction to determine whether commanded fuel produced the expected mixture.
- Electrical paths and the PCM: Power, ground, reference, signal, return, terminal contact, and controller interpretation must all be trustworthy.
How the PCM decides whether the airflow is believable
The PCM does not judge one sensor in isolation. It predicts airflow for the current throttle opening, engine speed, operating state, and supporting inputs, then compares that model with measured evidence. The same approach lets it distinguish a direct circuit fault from a performance or rationality fault.
P0101 is a performance comparison. The MAF signal can still be present, yet the measured airflow differs too much from the PCM's modeled airflow. Contamination, an intake leak, a restriction, disturbed ducting, an intermittent connection, or a biased sensor can all create that result.
P0068 is a broader rationality comparison. The PCM checks whether throttle position agrees with MAF- or pressure-derived load evidence. An intake or PCV leak can add air where the model does not expect it, so a correctly moving throttle body does not eliminate the air path as a cause.
P0171 is fuel-feedback evidence. It indicates that Bank 1 adaptive fuel control has moved to its rich correction limit while trying to compensate for a lean result. That may be caused by unmetered air, incorrect airflow evidence, purge flow, an exhaust leak that affects oxygen-sensor interpretation, or insufficient fuel delivery. The code identifies a control limit; it does not name the failed part.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0068 | Throttle position does not agree with airflow/load evidence | Whether an intake, PCV, vacuum, crankcase-sealing, throttle, supporting-input, or circuit concern caused the rationality failure |
| P0101 | MAF range/performance | Whether measured airflow is credible for the operating condition and whether contamination, leakage, restriction, wiring, connector, or sensor evidence explains the mismatch |
| P0171 | Bank 1 adaptive fuel correction has reached its rich limit | Whether unmetered air, PCV or purge flow, exhaust leakage, MAF bias, injector operation, fuel pressure, or another fuel-delivery condition explains the lean correction |
These codes overlap, but they are not interchangeable. P0101 challenges the accuracy of airflow measurement. P0068 challenges the agreement among airflow/load and throttle evidence. P0171 reports the result of fuel control reaching a correction limit. Read them together, then use direct circuit or companion DTCs to establish priority.
What the driver or technician may notice
Possible observations include:
- a malfunction indicator lamp with little or no obvious drivability complaint;
- rough idle, hesitation, surge, stumble, stalling, or reduced power;
- hard starting or inconsistent response to throttle input;
- positive fuel correction that is strongest at idle or changes with engine speed and load;
- scan data that is fixed, implausible, slow, erratic, or inconsistent with related inputs;
- a concern that began after air-filter, inlet-duct, throttle-body, PCV, purge, engine, battery, or harness work;
- companion airflow, pressure, throttle, oxygen-sensor, purge, misfire, fuel-pressure, or circuit DTCs.
Symptoms help reproduce the fault, but they do not identify a failed component.
Common failure categories
1. Unmetered intake or vacuum air
A split duct, loose clamp, damaged gasket, cracked vacuum connection, intake-manifold leak, or disconnected hose can let air enter outside the expected path. A leak often has a larger fuel-trim effect at idle because the unmetered flow is a greater share of total airflow.
2. PCV or crankcase-sealing fault
Disconnected, restricted, damaged, or incorrect PCV parts can disturb both crankcase pressure and intake airflow. Oil-cap, valve-cover, hose, seal, and related crankcase faults can therefore contribute to P0068 or lean fuel correction.
3. Restriction or disturbed inlet flow
A restricted filter, collapsed or obstructed duct, damaged housing, improperly seated component, or buildup at the throttle body can reduce or distort airflow. Inspect the complete inlet path before cleaning or replacing a sensor.
4. MAF contamination, bias, or intermittent response
The MAF signal may be electrically present but wrong for the operating condition. Contamination, a damaged sensing element, poor terminal contact, or a harness fault that changes with engine movement can create a performance code without a hard open or short.
5. Purge, exhaust, or oxygen-feedback influence
A purge valve that flows when it should be closed can change mixture control. An exhaust leak can introduce oxygen and make the feedback appear lean. These paths must be tested from evidence rather than treated as automatic causes.
6. Fuel-delivery fault
Low fuel pressure, restricted delivery, an injector problem, or another bank-specific fuel issue can force the PCM to add fuel until its correction limit is reached. Prove fuel supply with the exact procedure before replacing injectors or a pump.
7. Connector, wiring, reference, or return fault
Terminal spread, corrosion, moisture, oil intrusion, heat damage, chafing, poor retention, or a shared electrical-path problem can bias or interrupt one or several inputs. A clean-looking connector is not proof of terminal contact.
8. Throttle, engine mechanical, or controller concern
Throttle deposits or a crankcase-sealing concern can make otherwise believable sensor data disagree. PCM replacement belongs at the end, after power, ground, circuits, air path, fuel delivery, and calibration requirements are proven.
A practical diagnostic strategy
1. Preserve the evidence
Record every module DTC and status before clearing anything. Save freeze-frame data, engine temperature, engine speed, load, throttle state, fuel trims, and the conditions that produced the complaint. Note recent service work.
2. Establish code priority
Handle power, ground, communication, shared reference/return, and direct sensor-circuit codes before treating a performance or rationality code as independent. A circuit fault can explain several downstream comparisons.
3. Inspect the full air path
Verify the correct filter and housing are seated. Inspect ducts, clamps, gaskets, the MAF mounting area, throttle-body connection, vacuum and PCV routing, purge plumbing, and accessible connectors. Look for rubbing, heat damage, contamination, or joints that move with engine torque.
4. Compare operating patterns
Use the exact procedure to compare MAF response, throttle position, engine speed, pressure-related evidence, and fuel correction at stable idle and a safe repeatable change in load. A lean correction that is much stronger at idle supports a different branch from a correction that remains similar as airflow rises.
5. Test for leaks or restrictions as directed
Use the approved visual, smoke, vacuum, or pressure method for the exact section being tested. Control pressure and isolate the system as instructed. A negative test proves only the area and conditions actually tested.
6. Prove electrical integrity
Follow the exact wiring diagram. Check terminal condition before measurement, then use the specified voltage, voltage-drop, continuity, response, or intermittent test. Watch scan data during controlled harness movement only when the procedure allows it.
7. Separate mixture feedback from its cause
For P0171, use freeze-frame and bank comparison to decide whether to pursue unmetered air, purge flow, exhaust leakage, MAF bias, fuel pressure, or injector operation. Do not replace an oxygen sensor merely because it reported a lean exhaust condition.
8. Repair the proven fault and verify
Repair the leak, restriction, terminal, wiring, sensor, valve, fuel-delivery, or mechanical condition that failed a test. Restore every duct and connector. Clear learned data only when the procedure requires it, repeat the relevant self-test or drive condition, and confirm that airflow/load evidence agrees, fuel correction is controlled, symptoms are gone, and the DTC does not return.
Safety before testing
Keep hands, tools, loose clothing, shop towels, smoke-test hoses, and test leads clear of belts, fans, the throttle plate, and the open intake whenever the engine can run. Never leave loose objects in an inlet. Reassemble the air path before running the engine unless the exact procedure specifies a controlled test configuration.
Allow hot engine and exhaust components to cool before working nearby. Use eye protection and follow the equipment manufacturer's instructions for smoke, vacuum, fuel-pressure, and electrical testing. Relieve fuel pressure when directed, control ignition sources, and contain fuel safely.
Use terminal-safe probes and the exact wiring diagram. Do not force probes into terminals, apply battery voltage to sensor or PCM circuits, clamp hard plastic lines, or exceed the pressure allowed by the service procedure.
What not to do
- Do not replace the MAF sensor from P0101 alone.
- Do not replace an oxygen sensor because P0171 says the exhaust is lean.
- Do not treat P0068, P0101, and P0171 as three names for the same fault.
- Do not ignore PCV, purge, intake-sealing, exhaust, or fuel-delivery evidence.
- Do not use unapproved cleaner on a sensing element or touch it with tools.
- Do not pressure-test the intake with unrestricted shop air.
- Do not copy pins, thresholds, PID names, or test values from another year or configuration.
- Do not condemn the PCM before the inputs, circuits, air path, and fuel system are proven.
The diagnostic principle to remember
Airflow diagnosis is a credibility test. Prove that the air path is intact, the electrical signals are trustworthy, measured airflow agrees with throttle and operating conditions, and fuel feedback responds for a physically explainable reason. When those proofs are separated, P0068, P0101, and P0171 become useful directions instead of parts-replacement instructions.
