Quick answer
The 5.7-liter HEMI uses heated oxygen sensors before and after the Bank 1 catalytic converter so the powertrain control module (PCM) can judge sensor readiness, exhaust feedback, and catalyst oxygen-storage performance. P0135 and P0141 identify heater-performance fault categories; P0420 reports a failed catalyst-efficiency monitor. None of these codes, by itself, identifies the failed part.
Applicability and service-information boundary
This overview applies to the 2019-2024 Ram 1500DT 5.7 HEMI Gas configuration. Authorized vehicle records confirm Ram 1500 Truck 4WD applications with the 5.7-liter eTorque MHEV powertrain at the 2019 and 2024 endpoints. Detailed system operation and diagnostic evidence for this overview was verified on the 2024 application.
Sensor design, exhaust layout, wiring, calibration, monitor conditions, scan-tool functions, and service procedures can change by model year and equipment. Use current service information for the exact truck whenever a test requires a value, connector, command, drive cycle, or removal procedure.
What the system is trying to determine
This system answers three connected questions: are the oxygen sensors warm enough to provide repeatable evidence, do their circuits and signals behave credibly, and is the catalytic converter storing oxygen as expected?

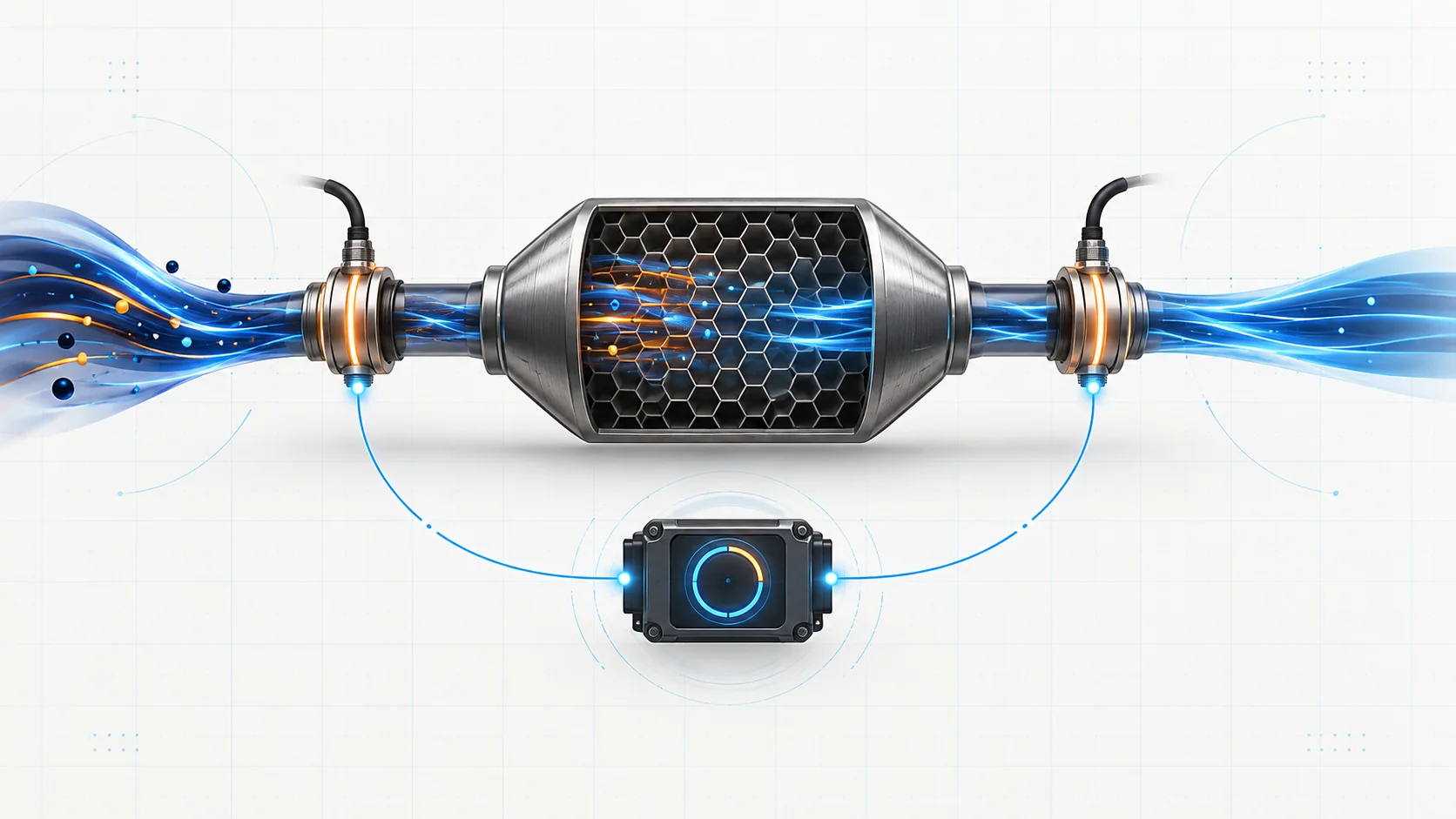

The upstream Bank 1 sensor is located before the catalytic converter and responds directly to the exhaust leaving the engine. Its information gives the PCM fast feedback about combustion and mixture behavior. The downstream Bank 1 sensor sees exhaust after it has passed through the catalyst. Its pattern lets the PCM evaluate how strongly the converter buffers the oxygen changes arriving from the engine.
The PCM does not judge the catalyst from one voltage snapshot. It first needs believable sensor and heater operation. During a valid monitoring window it then compares upstream and downstream activity over a calibrated period. If the downstream pattern becomes too similar to the upstream pattern, the PCM can interpret that as reduced catalyst oxygen-storage performance. The exact calculation and pass/fail boundary are calibration details, not universal field specifications.
Why the sensor heaters matter
An oxygen sensor must reach an effective operating temperature before its output can be used reliably. Exhaust heat contributes, but it changes with cold starts, idle time, load, and ambient conditions. An internal positive-temperature-coefficient heater helps warm the sensing element quickly and maintain a controlled operating state.
The PCM controls heater output and evaluates whether the circuit behaves as expected. A heater-control open, excessive circuit resistance, poor ground path, loose or corroded terminal, heat-damaged harness, failed heater element, or controller-side fault can prevent the sensor from becoming ready. An electrical heater problem can also distort the evidence used by another diagnostic.
That makes P0135 and P0141 enabling-system codes, not automatic sensor-replacement instructions. Prove circuit integrity under the appropriate load, inspect terminal fit and routing, and isolate the sensor before considering the PCM. Diagnose active heater and signal faults before using the same sensor data to condemn a catalyst.
How oxygen storage separates a healthy catalyst from an aging one
A three-way catalytic converter temporarily stores and releases oxygen while promoting reactions that reduce harmful exhaust gases. That storage action buffers the rapid oxygen changes visible before the converter. When the engine and sensors are operating credibly, a healthy catalyst therefore tends to produce a calmer downstream pattern than the upstream pattern.
As the converter ages, becomes contaminated, overheats, breaks internally, or otherwise loses useful oxygen-storage capacity, more of the upstream exhaust pattern can pass through. Downstream activity then begins to resemble upstream activity. The PCM uses that relationship as monitor evidence, but the comparison is only meaningful when both sensors, their heaters and circuits, the exhaust path, and engine combustion are trustworthy.
What the related DTCs tell you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0135 | Bank 1 upstream O2 heater performance | Whether the upstream heater element, control and ground paths, connector/terminal condition, wiring, or controller-side operation explains the fault |
| P0141 | Bank 1 downstream O2 heater performance | Whether the downstream heater and its monitored circuits can make the post-catalyst sensor ready without an electrical fault |
| P0420 | Bank 1 catalyst efficiency | Whether credible upstream and downstream evidence still shows reduced catalyst oxygen-storage performance after sensor faults, exhaust leaks, engine conditions, and physical damage are excluded |
P0135 and P0141 identify heater-performance categories. P0420 identifies the result of a system monitor. A code names the evidence path that failed; it does not select the replacement part.
What the driver or technician may notice
- a malfunction indicator lamp with otherwise normal operation;
- increased fuel consumption, roughness, hesitation, or an exhaust odor when an underlying mixture or combustion problem is present;
- multiple O2-sensor, fuel-trim, misfire, or catalyst codes rather than one isolated DTC;
- a catalyst-area rattle, restricted-power complaint, or heat discoloration when the converter is physically damaged;
- a pending code or stored operating record even when the symptom cannot be reproduced in the bay;
- monitor readiness that remains incomplete after codes or battery power were cleared.
These observations do not prove one repair. Preserve the original scan and stored operating conditions before clearing codes.
Common failure categories
Heater power, control, ground, wiring, or terminal faults
A heater circuit can show voltage with no load yet fail when current is required. Corrosion, water intrusion, poor terminal tension, high resistance, damaged insulation, exhaust heat, or harness contact with a sharp or moving part can interrupt normal heater operation. One circuit fault may also influence how another sensor diagnostic interprets the signal.
Inspect first, then use the current load-capable test method. Do not apply battery voltage, use an unsuitable test light, or pierce sealed wiring unless the exact service procedure permits it.
The sensor signal is not credible
A signal circuit that is open, shorted, biased, slow, or electrically noisy can misrepresent the exhaust. A sensor may also remain connected yet respond poorly because of age or contamination from oil, coolant, excessive fuel, sealants, or outside chemicals. Replacement history matters: pairing one new sensor with an aged sensor in the comparison path can change the relationship the monitor sees.
Evaluate signal behavior as a pattern under a controlled operating condition. One instantaneous value and visual appearance alone are weak evidence.
A real mixture or combustion problem changes the exhaust
Injector, ignition, airflow, purge, fuel-pressure, cam-control, or engine-mechanical faults can create exhaust that is genuinely rich, lean, or oxygen-heavy. Misfire adds oxygen while also sending unburned fuel and heat toward the catalyst. Oil consumption, coolant entry, or excessive fueling can contaminate sensors and permanently damage converter material.
Resolve active misfire, mixture, injector, and relevant engine faults before making a catalyst verdict. A replacement converter can fail again if the root cause remains.
Exhaust leakage changes what the sensors see
Air entering through a leak can change oxygen content near a sensor and disturb the upstream/downstream relationship. Check joints, flanges, damaged tubing, sensor threads, and the converter boundary. A leak that is quiet at idle may still matter under the pressure and pulsation present during the original failure condition.
Use a safe, suitable leak-test method and repair leakage before evaluating catalyst efficiency.
The catalytic converter is damaged or has lost capacity
A converter can lose efficiency through aging, contamination, severe overheating, impact damage, internal breakage, or prolonged exposure to a rich mixture or misfire. Inspect for dents, holes, leakage, rattling, internal breakup, or abnormal discoloration. Visible damage still requires a root-cause check.
Replace a catalytic converter only after the inputs used by the monitor and the upstream causes of damage have been proven. P0420 is not an automatic converter-replacement instruction.
A practical system-first diagnostic strategy
1. Preserve evidence and confirm applicability
Confirm the exact model, engine, exhaust configuration, calibration status, and current service information. Save the complete module scan, confirmed and pending DTCs, freeze-frame or failure-record data, monitor status, fuel trims, misfire information, and relevant upstream/downstream sensor data before clearing anything.
2. Establish code priority
Handle active heater, signal, reference, power, ground, misfire, injector, fuel-trim, and engine-mechanical faults that can invalidate catalyst evidence. P0135 and P0141 do not prove that a heater element is open. P0420 should not outrank faults that make its sensor inputs untrustworthy.
3. Inspect the exhaust and harness environment
With the system cool, inspect wiring routing, connectors, terminal locks, heat shielding, sensor installation, exhaust joints, impact damage, leakage evidence, converter condition, and areas disturbed by recent work. Look for oil, coolant, or excess-fuel contamination and review sensor or converter replacement history.
4. Prove heater and signal integrity
Use the exact procedure to command or observe heater operation and prove the heater element and circuit under load. Then evaluate whether each signal responds plausibly to real exhaust changes. Separate a genuine mixture condition from an electrically forced reading. Leave controller replacement until the sensor, wiring, connector, and terminal paths have been isolated.
5. Compare sensor positions and operating patterns
Graph upstream and downstream activity together during a stable, appropriate operating condition. Look for a pattern that follows one sensor, one bank, both banks, or a particular engine operating region. The comparison is useful only when the sensors are ready and the monitor conditions are valid.
6. Prove the engine and exhaust are not misleading the monitor
Test for exhaust leakage, active mixture-control problems, misfire, oil or coolant consumption, excessive fueling, and other engine conditions supported by the scan evidence. Correct these causes and re-evaluate sensor behavior before deciding that catalyst oxygen storage is low.
7. Evaluate the catalyst only with valid inputs
After the sensors, heaters, circuits, exhaust path, and engine condition are credible, use the manufacturer-specified catalyst test or monitor. A converter decision belongs at the end of the diagnostic path, not at the beginning.
8. Verify the complete repair
Reconnect every sensor and retainer, restore shields and harness routing, clear codes only when directed, and complete any required setup. Reproduce the stored operating region or perform the current verification routine. Confirm that the relevant monitor completes, sensor behavior remains plausible, and no pending or confirmed DTC returns. A cleared warning lamp with an incomplete monitor is not a verified repair.
Safety around oxygen sensors and catalysts
Exhaust manifolds, pipes, sensors, and catalytic converters can remain hot long after shutdown. Allow the system to cool, wear appropriate eye and hand protection, and keep flammable material away. Support the truck at approved lifting points with equipment rated for its weight; never work beneath a vehicle supported only by a jack.
The verified applications include eTorque stop/start hardware. Before underbody or underhood work, place the truck in the safe service state required by current service information and verify that the engine cannot restart unexpectedly. Running tests place the technician near fans, belts, hot exhaust, and moving driveline parts. Secure leads and hoses, maintain ventilation, and use exhaust extraction in an enclosed work area.
Final takeaway
On the 2019-2024 Ram 1500DT 5.7 HEMI Gas, the upstream heater, downstream heater, oxygen-sensor signals, engine condition, exhaust path, and catalytic converter form one evidence chain. P0135 and P0141 indicate that sensor readiness may be unreliable. P0420 indicates that the completed catalyst monitor judged the upstream/downstream relationship unacceptable; it does not identify the failed part.
Preserve the operating evidence, establish DTC priority, prove heater and signal circuits, inspect for leaks and contamination, correct engine causes, and evaluate catalyst performance only after its inputs are credible. The linked STEP guides provide model-specific educational paths; current service information for the exact truck controls specifications, commands, connectors, service procedures, and final verification.
