What the EVAP system does

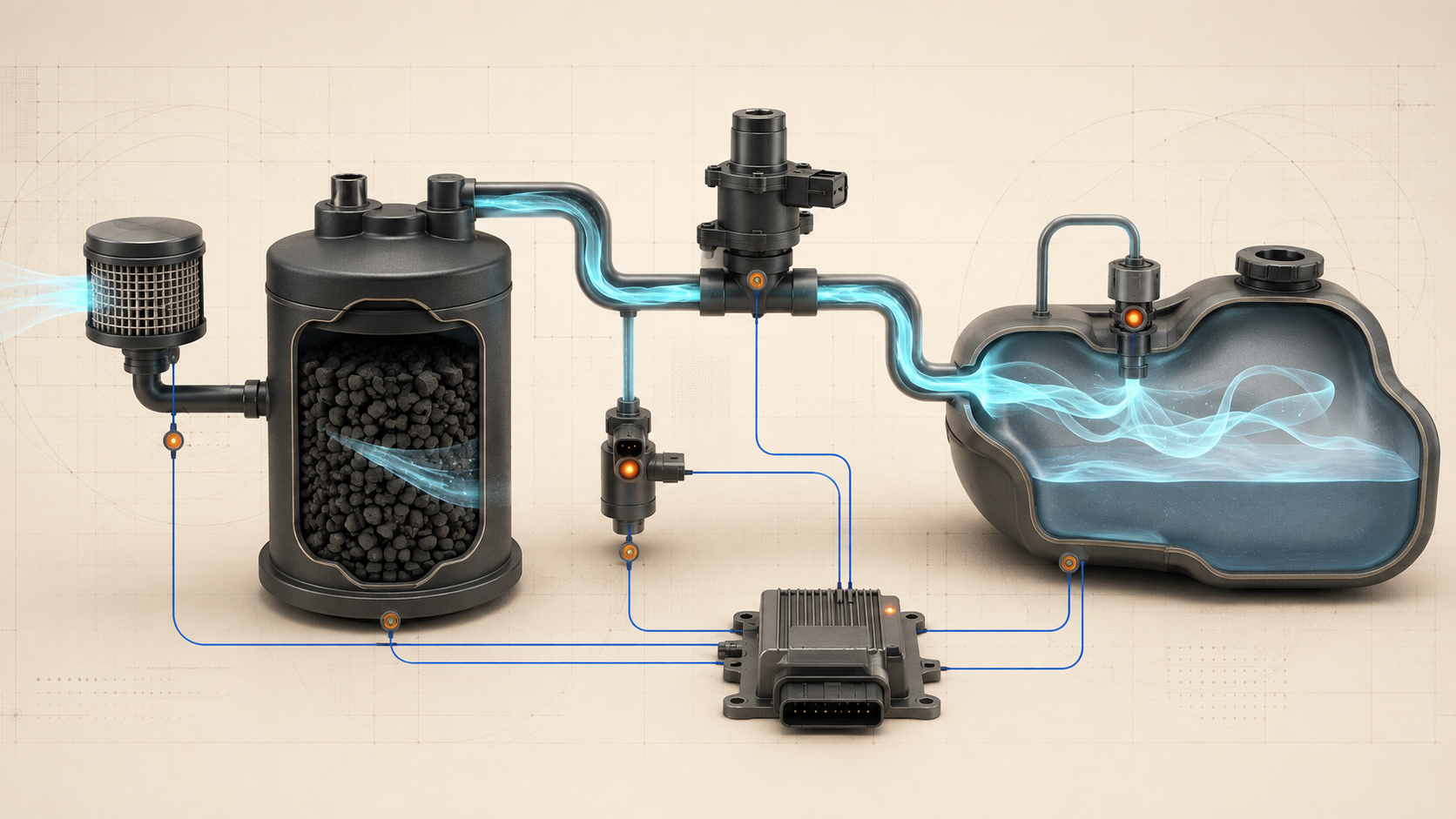

The evaporative-emissions (EVAP) system keeps gasoline vapor from venting directly to the atmosphere. On the Ram 1500DT 3.6-liter application, the system stores vapor in a charcoal canister, meters that vapor into the intake through a purge solenoid, and lets the powertrain control module (PCM) check whether the sealed vapor path behaves as expected.
The linked STEP guides use the 2019-2025 educational vehicle grouping. Private service-information targets confirm the 3.6L eTorque configuration at 2019, 2022, and 2025, while the detailed operation and diagnostic procedures reviewed for this overview are from the exact 2025 application. Confirm the VIN, emissions label, fuel-filler design, calibration, component locations, and current service procedure before testing. Do not carry connector details, scan-tool commands, or test limits from one model year to another without verification.
An EVAP DTC describes a failed system check. It does not identify a failed part by itself. A loose sealing surface, damaged hose, restricted fresh-air path, incorrect purge flow, biased pressure signal, electrical fault, or a problem elsewhere in the fuel-vapor path can produce similar evidence.
The main functional sections
- Fuel tank and filler path: The tank, filler tube, cap or capless sealing unit, check valves, and vapor-separation hardware must contain fuel and route vapor without allowing liquid fuel into the vapor path.
- Charcoal canister: Activated charcoal stores fuel vapor while the engine is off or when the PCM is not commanding purge.
- Fresh-air inlet and filter: Clean atmospheric air enters through the filtered vent path when stored vapor is drawn from the canister. A blocked filter or hose can create abnormal vacuum and misleading purge or leak-test results.
- Evaporative System Integrity Monitor (ESIM): The ESIM uses pressure- and vacuum-responsive valves and an electrical switch so the PCM can evaluate system sealing during the appropriate operating and engine-off conditions.
- Purge solenoid and hoses: The normally closed, pulse-width-controlled purge solenoid connects the canister vapor path to intake-manifold vacuum. The PCM varies purge flow according to operating conditions.
- Fuel tank pressure sensor: The PCM watches tank-pressure change to decide whether commanded purge produced the expected response and whether pressure is recovering when purge decreases.
- PCM diagnostics: The controller evaluates circuit integrity, purge response, system sealing, prerequisite DTCs, enable conditions, and post-repair monitor results.
How vapor storage and purge work
Fuel naturally produces vapor in the tank. Instead of releasing it outside, the tank routes it through vapor lines to the charcoal canister. The canister holds the hydrocarbons until the PCM decides that the engine can consume them without upsetting combustion or emissions control.
When conditions are suitable, the PCM pulses the purge solenoid. Intake-manifold vacuum then draws fresh air through the filtered vent path, through the canister, and toward the engine. The fresh air carries stored fuel vapor into the intake, where the engine burns it. Purge is therefore part of fuel control: too little flow may leave vapor trapped, while too much or unintended flow can act like an uncontrolled fuel or vacuum input.
The pressure sensor lets the PCM check the result instead of relying only on the purge command. As purge flow increases, tank pressure should move in the expected direction; as purge flow decreases, the system should recover in a believable way. A restriction, disconnected hose, leaking path, stuck valve, weak vacuum source, or biased sensor can prevent that expected change.
How the system checks for leaks
The ESIM provides the PCM with sealing evidence under defined conditions. The diagnostic strategy uses pressure or vacuum created by fuel-temperature changes and controlled purge operation to determine whether the system can reach and retain the expected state. Large-leak and small-leak monitors describe different levels of failed sealing evidence; they are not direct measurements of a visible hole size.
Monitor results depend on prerequisites. Fuel level, temperature, recent refueling, battery condition, ambient conditions, other active DTCs, and whether the vehicle completed the required engine-off period can affect whether a test runs. A repaired truck may need the exact verification routine or a complete monitor opportunity before readiness changes.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0441 | Purge-system performance | Whether commanded purge creates and releases the expected tank-pressure change, with an unrestricted fresh-air, canister, purge, manifold-vacuum, and pressure-sensor path |
| P0455 | Large-leak detection | Whether the vapor system is grossly open or unable to establish and retain the state required by the large-leak monitor |
| P0456 | Small-leak detection | Whether the sealed system can pass the more sensitive leak check after prerequisite conditions and larger-fault checks are satisfied |
Work these codes as a connected system. P0441 can be caused by a flow restriction or weak purge response even when the system is sealed. P0455 and P0456 can be caused by sealing faults even when the purge solenoid responds electrically. Related purge-circuit, pressure-sensor, fuel-cap, or general EVAP codes may change the correct test order.
What the driver or technician may notice
Common observations include:
- a malfunction indicator lamp with no obvious drivability complaint;
- a fuel-vapor odor near the truck when an actual vapor leak is present;
- hard starting, rough idle, rich or lean correction, or stumbling after refueling if purge flow is uncontrolled;
- an EVAP monitor that remains incomplete;
- a code that returns only after an overnight soak or another specific monitor opportunity;
- visible hose, connector, filler-seal, or canister damage;
- companion purge-solenoid, pressure-sensor, mixture, or electrical DTCs.
Odor is a safety clue, not proof of the leak location. Stop and correct any liquid-fuel leak before continuing EVAP diagnosis.
Safety before testing
Work in a well-ventilated area away from flames, sparks, hot surfaces, and other ignition sources. Fuel vapor is flammable. Wear eye protection and follow the current procedure before opening any fuel or vapor connection. If the truck must be raised, support it at approved lifting points; never rely on a jack alone.
Use only equipment approved for EVAP testing. Never apply unregulated shop air or oxygen directly to the EVAP system, and do not use an improvised smoke source or excessive pressure. An approved leak-detection machine may use shop air as its supply when connected and operated exactly as specified by the tool and current service procedure. Do not introduce liquid into the canister or pressure sensor.
The eTorque system adds high-current electrical hardware and automatic engine-management behavior. Confirm the applicable disable and wake-up precautions before working around the engine, starter-generator equipment, or related wiring. Keep the key and scan-tool commands under the technician's control.
Common failure categories
1. Filler sealing or refueling-path fault
A damaged cap seal, capless door, filler neck, check valve, or disturbed refueling component can leave the system open. Inspect the exact design fitted to the truck. Dirt on a sealing surface can matter even when nothing appears broken.
2. Split, disconnected, or pinched vapor line
Hoses and formed tubes can crack, rub through, disconnect, kink, or be routed incorrectly after repair work. Inspect from the tank and filler area through the canister and purge path. Do not stop at the first accessible hose.
3. Purge solenoid or vacuum-source problem
The solenoid may leak when commanded closed, fail to open, respond inconsistently, or have an electrical fault. The manifold port or hose can also be restricted even when some vacuum is present. Separate command, electrical control, sealing, and actual flow.
4. Canister, ESIM, or fresh-air restriction
Dust, debris, liquid-fuel saturation, physical damage, or an internal valve problem can block ventilation or prevent the ESIM from changing state correctly. If liquid fuel is found in the vapor path, identify the entry point and correct the underlying refueling-path, valve, routing, or component fault before replacing affected parts.
5. Fuel tank pressure sensor or circuit fault
A biased signal can make correct purge look weak or make a pressure change appear implausible. Verify reference, ground, signal behavior, connector condition, and mechanical pressure response using the exact directed test before replacing the sensor.
6. Intermittent sealing or operating-condition problem
Temperature, fuel movement, a marginal seal, loose connection, or harness motion may make the fault intermittent. Preserve freeze-frame and monitor evidence before disturbing the system.
A practical diagnostic sequence
1. Preserve the evidence
Scan all modules before clearing codes. Save freeze-frame or snapshot data, monitor status, fuel level, temperature, recent refueling history, and all active, pending, and stored DTCs. Ask when the lamp appeared and whether the truck had just been fueled or serviced.
2. Establish code priority and applicability
Confirm the VIN and emissions configuration, then check current service information and applicable bulletins. Address power, ground, purge-circuit, pressure-sensor, and other prerequisite faults in the order specified for the truck.
3. Inspect the complete vapor path
Check the filler seal, tank-area plumbing, canister, ESIM, filter, purge lines, manifold connection, electrical connectors, and evidence of previous work. Look for liquid-fuel leakage, impact damage, rubbed hoses, dirt intrusion, pinched lines, and loose fittings.
4. Separate sealing from purge flow
Use the directed leak test to decide whether the closed vapor path is sealed. Use scan data and the specified purge test to decide whether commanded flow changes tank pressure as expected. A smoke result does not prove purge performance, and a purge command does not prove the system is sealed.
5. Test components only after the system split
Once the evidence points to a branch, test the purge solenoid, ESIM, pressure sensor, fresh-air path, or suspect section using the current procedure. Verify electrical feeds under the specified conditions and use terminal-safe probing. Avoid replacing a canister, sensor, or solenoid solely because its name appears in the DTC description.
6. Verify the repair
After repair, restore every connection, clear codes only when appropriate, and run the specified verification or forced monitor if available. Confirm that the system holds the required state, purge response is credible, no fuel odor or leak remains, the relevant monitor completes, and no new DTC sets.
Repair direction by confirmed cause
- Clean or repair the correct filler sealing surface or replace a damaged cap/capless component when its sealing fault is proven.
- Repair vapor tubes and hoses with the specified parts and routing; avoid generic hose that can collapse or react with fuel vapor.
- Replace a purge solenoid only after command, circuit, vacuum source, sealing, and flow tests support it.
- Correct a restricted filter or vent path and determine why debris or liquid entered before replacing affected canister or ESIM components.
- Repair pressure-sensor circuits or replace the sensor only after comparing its electrical signal with actual system-pressure behavior.
- Do not replace the PCM until its powers, grounds, circuits, inputs, outputs, and the directed diagnostic path support that conclusion.
Final takeaway
The Ram EVAP system is a controlled vapor circuit: the tank and canister store vapor, the filtered vent path lets it move, the purge solenoid meters it into the engine, the pressure sensor reports the response, and the ESIM helps the PCM judge sealing. Diagnose those functions separately but in order. Preserve the monitor evidence, verify the full vapor path, distinguish a leak from a flow problem, test only the branch supported by the data, and complete the exact post-repair verification before returning the truck to service.
