What the fuel system does
The 2.7-liter EcoBoost fuel system has to move gasoline from the tank, raise it to the pressure required for direct injection, meter it into each cylinder, and continually correct delivery as engine load and operating conditions change. The powertrain control module (PCM) coordinates the low-pressure supply, the engine-driven high-pressure pump, fuel-pressure feedback, fuel-temperature information, and individual injector control with airflow and exhaust feedback.
Private service-information targets confirm 2015 and 2025 F-150 4WD 2.7L turbo endpoints, while the linked STEP guides use the 2015-2025 educational grouping. The detailed system description reviewed for this overview is from the exact 2025 application. Confirm the VIN, engine application, calibration, fuel-system layout, connector information, and current service procedure before testing or replacing anything. Exact values and procedures can differ within the grouped range.
A fuel-related DTC identifies the behavior the PCM could not verify. It does not automatically prove that the fuel pump, pressure sensor, injector, or PCM has failed. A rich-mixture code, a sensor-circuit code, and an injector-circuit code describe three different diagnostic categories even though they belong to the same fuel system.
The main functional sections
- Low-pressure supply: The in-tank pump assembly supplies fuel toward the engine. Its job is different from the high-pressure stage, so a technician should not treat one pressure reading as proof that both stages work correctly.
- High-pressure pump and volume control: An engine-driven fuel injection pump receives low-pressure fuel and raises it for gasoline direct injection. The PCM regulates rail pressure by controlling how much fuel enters the pumping chamber.
- High-pressure rail and FRP feedback: The high-pressure rail distributes fuel to the direct injectors. A separate FRP sensor tells the PCM whether high-pressure rail pressure follows the requested operating condition.
- Low-pressure FRPT sensing: The FRPT sensor reports low-side fuel pressure and fuel temperature for pump-control and diagnostic decisions. P0183 concerns its temperature-signal circuit, not the separate high-pressure FRP signal.
- Direct fuel injectors: Each injector meters fuel directly into a cylinder. The PCM controls injector opening and monitors the electrical behavior of the injector-driver circuits.
- Airflow and exhaust feedback: Airflow, manifold pressure, temperature, oxygen-sensor feedback, and learned fuel trims help the PCM decide whether commanded fuel delivery produced the expected mixture.
How fuel delivery and feedback work together

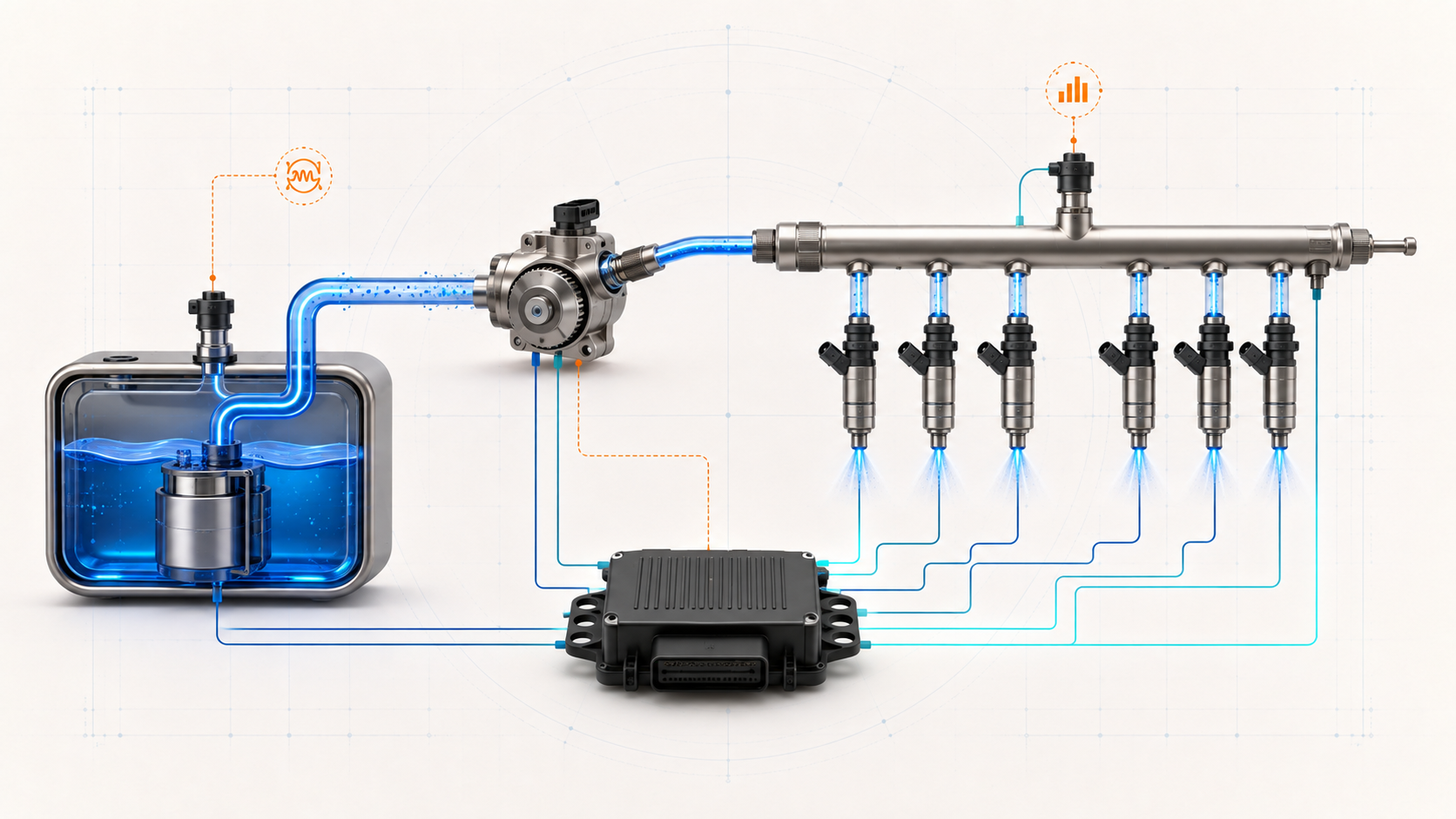

The low-pressure pump feeds the engine-driven high-pressure pump. The high-pressure pump then supplies the rail, and the rail supplies the direct injectors. The PCM compares fuel-pressure feedback with the pressure needed for current speed and load and adjusts the high-pressure pump's volume control. It also changes injector timing and on-time to meter the required fuel into each cylinder.
This is a closed control loop, not a collection of independent parts. If air measurement is wrong, injector delivery is incorrect, purge flow is excessive, fuel pressure is incorrect, or exhaust feedback is biased, the PCM may add or subtract fuel and store a rich or lean code. If a pressure or temperature signal circuit is open or shorted, the PCM may receive implausible information even though the mechanical fuel path is intact. If an individual injector circuit does not respond to command, the engine can misfire even when rail pressure and overall fuel trims appear reasonable.
That distinction should set the diagnostic order: first decide whether the code reports system mixture, sensor-circuit integrity, or an individual actuator circuit. Then test the branch that matches the evidence.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0172 rich-running fuel control concern | Bank 1 system too rich | Whether fuel delivery, purge flow, air measurement, exhaust feedback, fuel quality, or another input caused the PCM to reach its correction limit |
| P0172 diagnostic guide | Directed rich-mixture diagnosis | How to preserve operating evidence and separate pressure, injector, intake, purge, feedback, and fuel-quality causes without guessing |
| P0183 | Fuel rail temperature circuit high | Whether the FRPT temperature signal, reference/return circuits, connector, sensor, or module-side circuit explains the high signal |
| P0204 cylinder 4 injector circuit | Cylinder 4 injector circuit | Whether wiring, terminal fit, injector electrical behavior, or the PCM driver prevents the injector circuit from responding correctly |
| P0204 diagnostic guide | General injector-circuit strategy | How to prove circuit integrity and protect the injector and PCM before a component decision |
P0172 is not an injector-replacement instruction. P0183 is not proof that the fuel is physically too hot. P0204 is not proof that the cylinder 4 injector is clogged. Each code narrows the type of evidence needed; none names the failed part by itself.
What the driver or technician may notice
Possible observations include:
- a malfunction indicator lamp with few immediate symptoms;
- rough idle, hesitation, reduced power, or a misfire sensation;
- difficult starting or other drivability effects when the fault is active;
- fuel odor or poor fuel economy during a genuine rich condition;
- fuel trims that change with load, temperature, or engine speed;
- a fault that appears only when a connector or harness changes with heat or movement;
- companion misfire, air-measurement, oxygen-sensor, purge, fuel-pressure, or reference-voltage codes.
Symptoms help reproduce the failure but do not identify the failed component. A rough-running engine can result from incorrect total fuel delivery, one injector circuit, ignition, air, compression, or misleading sensor input.
Safety before fuel-system testing
Gasoline and fuel vapor are flammable, and both the low-pressure and direct-injection sides may retain pressure after the engine is switched off. Work in a ventilated area away from sparks, open flame, hot surfaces, and unapproved electrical equipment. Wear eye protection, contain released fuel, and follow the exact pressure-relief procedure before opening any line or rail connection.
Allow hot engine and turbocharger-area components to cool before reaching into the harness or fuel system. Support the vehicle correctly if access underneath is required. Inspect for external leakage before running the engine, and stop testing if a leak is found.
Direct-injection injectors and the pump control solenoid can be damaged by incorrect power application. Do not apply battery voltage directly across injector or fuel-volume-regulator terminals. Use terminal-safe probes and the directed circuit test; never guess at pins or use a jumper that can overload a PCM driver.
Common failure categories
1. Low-pressure supply or fuel-quality problem
Restricted supply, weak pump output, damaged lines, contamination, incorrect fuel, or an external leak can prevent the high-pressure stage from receiving stable fuel. Verify the low-pressure side with the correct procedure before condemning the engine-driven pump.
2. High-pressure generation or control problem
The high-pressure pump, its mechanical drive, volume-control solenoid, rail, or pressure-feedback path can keep actual pressure from following command. Diagnose requested-versus-actual behavior under the specified conditions. Do not open a pressurized direct-injection system merely because a scan value looks unusual.
3. Rich-mixture input or feedback problem
P0172 can be driven by too much fuel, but it can also result from purge flow, incorrect airflow or pressure information, biased exhaust feedback, intake or exhaust sealing problems, fuel contamination, or learned corrections based on bad inputs. Check companion codes and compare both banks and operating conditions where applicable.
4. FRPT sensor or circuit fault
P0183 begins as a signal-circuit diagnosis. An open circuit, short to voltage, damaged reference or return path, corrosion, poor terminal fit, harness movement, or a failed sensor can create a high reading. Prove the circuit before interpreting the displayed temperature as a real thermal condition.
5. Individual injector circuit fault
P0204 concerns the cylinder 4 injector circuit. Harness damage, connector or terminal trouble, an electrically faulty injector, or a PCM driver concern can prevent correct operation. Use scan evidence, a harness movement test, isolated circuit checks, and the exact injector test before replacing a part.
6. Injector flow or mechanical engine problem
An injector can fail a directed flow or power-balance test without producing the same evidence as an electrical circuit fault. Likewise, compression, valve timing, ignition, or air faults can imitate a fueling problem. Use power balance, misfire evidence, and mechanical checks to keep these categories separate.
A practical diagnostic sequence
1. Preserve the complete evidence
Scan all modules before clearing codes. Save freeze-frame or snapshot data, code status, fuel trims, pressure data, temperature inputs, misfire information, and the operating condition in which the fault set. Record recent fuel-system, engine, wiring, or calibration work.
2. Establish code priority
Address power, ground, reference-voltage, communication, and direct circuit faults before relying on performance data influenced by those circuits. If P0172 is accompanied by P0183, P0204, misfire, airflow, pressure, purge, or oxygen-sensor codes, use the service-information priority rather than treating every code as a separate failed part.
3. Perform safety and visual checks
Check for fuel leakage, damaged or incorrectly routed lines, loose intake plumbing, disturbed connectors, heat or abrasion damage, poor terminal fit, and signs of contamination. Verify oil and coolant condition and inspect the intake and exhaust paths when mixture evidence points beyond the fuel hardware.
4. Separate the diagnostic category
For P0172, determine whether the rich evidence is present at idle, under load, during purge, or across a wider range. For P0183, verify whether the temperature signal is electrically plausible before discussing fuel temperature. For P0204, prove the individual injector circuit and cylinder contribution rather than substituting a general fuel-pressure test.
5. Evaluate the low- and high-pressure stages
Use the exact test equipment and current procedure. Confirm the low-pressure supply first, then compare commanded and actual high-pressure behavior under the required conditions. A correct low-side result does not prove the high side, and a rail-pressure concern does not identify the pump until the control and feedback paths are checked.
6. Test circuits without damaging components
Use the correct wiring diagram, terminal-safe probes, and isolated continuity, short, load, or voltage-drop tests as directed. Move the harness while watching relevant data when the concern is intermittent. Do not apply direct battery power to injectors or the volume regulator, and do not condemn the PCM until circuits, connectors, component load, powers, and grounds are proven.
7. Confirm the component or system cause
Use the applicable injector balance, power-balance, pressure, leakdown, purge, fuel-quality, or sensor test only after the earlier branch supports it. Reproduce the original operating condition where safe. If evidence points outside fuel delivery, diagnose the air, exhaust, ignition, or mechanical cause before replacing fuel-system parts.
8. Verify the repair
After the confirmed repair, clear codes or learned values only when the procedure requires it. Repeat the relevant self-test or monitor, check for leaks, confirm stable pressure and fuel control, and verify that the original code and symptoms do not return. Make sure no new circuit, mixture, misfire, or pressure code was introduced.
Repair direction by confirmed cause
- Repair leakage, damaged lines, poor fuel quality, or low-pressure supply faults before evaluating the high-pressure pump.
- Repair reference, signal, return, power, ground, connector, terminal, or harness faults before replacing a sensor or injector.
- Replace an FRPT sensor only when its circuit and response fail the directed test.
- Replace an injector only when the electrical or flow evidence identifies that injector and its circuit has been proven.
- Repair purge, intake, exhaust, airflow, oxygen-feedback, ignition, or mechanical faults when they explain the mixture evidence.
- Replace or service high-pressure components only after supply, mechanical drive, control, feedback, and requested-versus-actual pressure evidence support that decision.
- Do not replace the PCM until its powers, grounds, circuits, inputs, outputs, and current diagnostic path support that conclusion.
Final takeaway
The fuel system works as a chain: low-pressure supply feeds the high-pressure stage, the rail distributes fuel, the injectors meter it, and the PCM uses pressure, temperature, airflow, and exhaust feedback to correct delivery. Diagnose the code category before diagnosing the part. Separate a system-rich condition from an FRPT signal fault and an individual injector-circuit fault, then prove supply, control, feedback, and component operation in that order. That approach avoids unnecessary pump, sensor, injector, and PCM replacement while protecting a pressurized direct-injection system from unsafe testing.
