Quick answer
The 3.6-liter Pentastar uses heated oxygen sensors before and after the catalytic converters so the powertrain control module (PCM) can evaluate sensor readiness, exhaust oxygen patterns, and catalyst oxygen-storage performance. P0031, P0032, P0135, and P0141 describe heater-circuit or heater-performance fault categories; P0138 describes a downstream signal that is electrically high or behaves as high; P0420 and P0430 report failed catalyst-efficiency monitors for Bank 1 and Bank 2. None of these codes, by itself, identifies the failed part.
Applicability and service-information boundary
This overview applies to the 2019–2024 Ram 1500 Classic 3.6L Pentastar Gas configuration. Authorized vehicle records confirm Ram 1500 Classic Truck 4WD applications with the 3.6-liter engine at the 2019 and 2024 endpoints. Detailed system-operation and diagnostic evidence for this overview was verified on the 2024 application.
Sensor design, exhaust layout, wiring, calibration, monitor conditions, scan-tool functions, and service procedures can vary by model year and equipment. Use current service information for the exact truck whenever a test requires a value, connector, command, drive cycle, component location, or removal procedure.
What the system is trying to determine
The oxygen-sensor and catalyst-monitoring system answers three connected questions:
- Are the sensors warm enough and electrically healthy enough to provide believable evidence?
- Do the upstream and downstream signals respond plausibly to the exhaust reaching them?
- Are the Bank 1 and Bank 2 catalytic converters storing oxygen strongly enough to buffer normal exhaust changes?

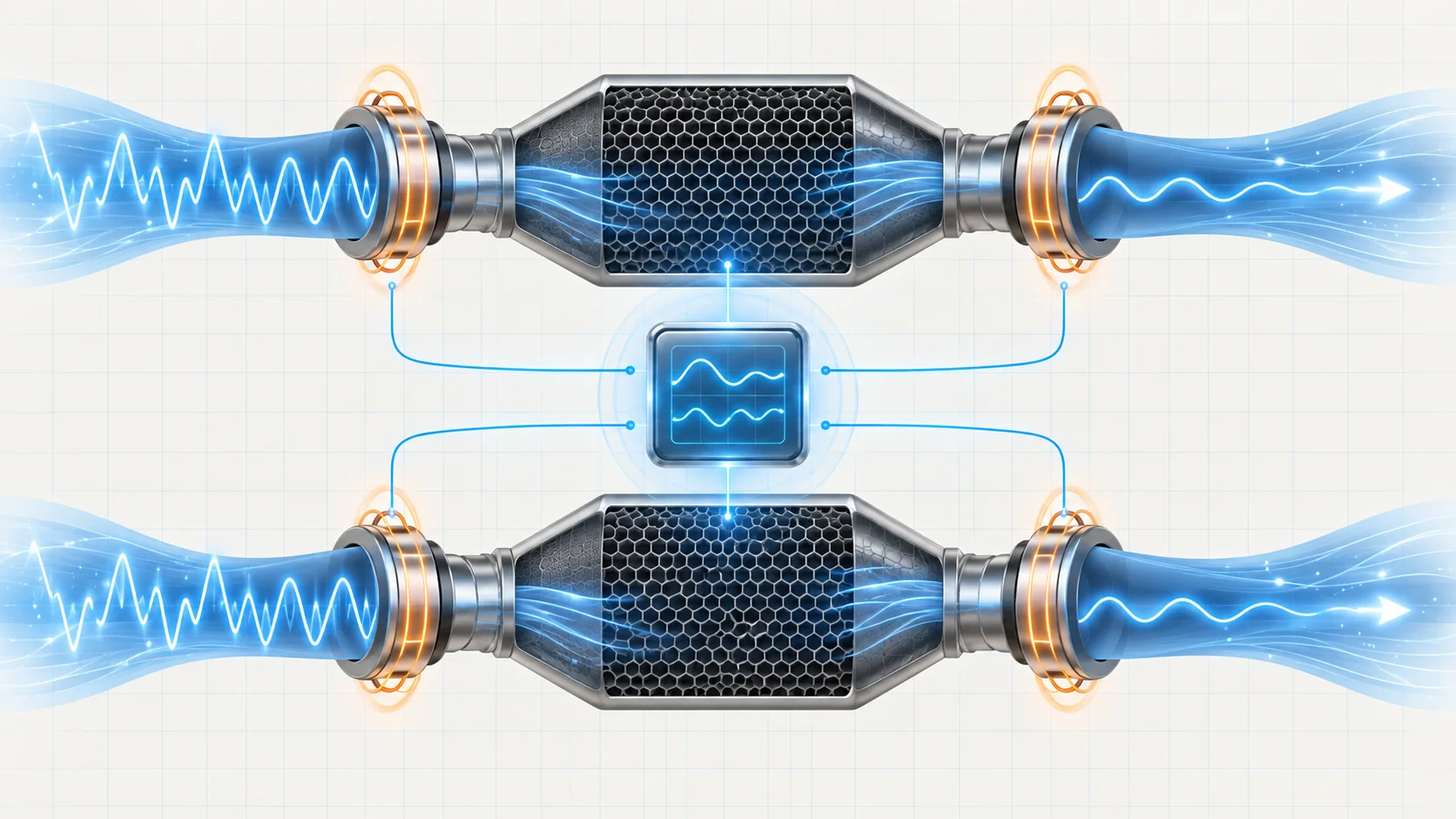

An upstream sensor samples exhaust before its bank's converter. It reacts directly to oxygen changes produced by combustion and mixture control. A downstream sensor samples exhaust after the converter. When the engine and sensors are operating correctly, its pattern provides evidence about how effectively the catalyst is absorbing and releasing oxygen.
The PCM does not condemn a catalyst from one voltage snapshot. It first needs credible heater, circuit, and signal operation. During a valid monitoring window it compares upstream and downstream activity over a calibrated interval. If the downstream pattern becomes too similar to the upstream pattern, the PCM can interpret that relationship as reduced oxygen-storage performance. The exact calculation and pass/fail boundary are calibration details, not universal shop specifications.
Why the sensor heaters matter
An oxygen sensor must reach an effective operating temperature before its output can be evaluated reliably. Exhaust heat helps, but it changes with cold starts, idle time, load, and ambient conditions. Each sensor therefore includes a heater that lets the sensing element warm quickly and remain in a controlled operating range.
The PCM controls heater output and evaluates the electrical path and temperature response. A control wire shorted low or high, an open or high-resistance path, a poor ground, a loose or corroded terminal, heat-damaged wiring, a failed heater element, or a controller-side fault can prevent normal readiness. A heater or signal circuit fault can also invalidate evidence needed by a catalyst monitor.
That is why a heater DTC is not an automatic instruction to replace the sensor. The technician must distinguish circuit behavior from the sensor element itself and diagnose active sensor faults before using the same data to judge a converter.
How oxygen storage separates a healthy catalyst from an aging one
A three-way catalytic converter temporarily stores and releases oxygen while promoting reactions that reduce harmful exhaust gases. This storage action smooths the rapid oxygen changes visible before the converter. With credible sensor inputs, a healthy converter therefore tends to produce a more stable downstream pattern than the upstream pattern.
As a converter ages, becomes contaminated, overheats, breaks internally, or otherwise loses useful oxygen-storage capacity, more of the upstream pattern can pass through. The downstream signal then begins to resemble the upstream signal. That relationship is meaningful only when the sensors, heaters, circuits, exhaust path, and engine combustion are trustworthy.
Bank-specific catalyst codes help localize the failed monitor, not necessarily the failed part. A problem common to the engine, fuel control, or service history may affect both banks, while a local exhaust leak, sensor fault, or converter problem may affect only one side.
What the related DTCs tell you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0031 | Bank 1 upstream heater circuit low | Whether a shorted control path, sensor heater, connector, wiring, or controller-side condition explains the low-circuit evidence |
| P0032 | Bank 1 upstream heater circuit high | Whether a high/open control path, ground problem, sensor heater, connection, or controller-side condition explains the high-circuit evidence |
| P0135 | Bank 1 upstream heater performance | Whether the commanded heater produces the expected sensor-temperature response and whether the circuit can carry the required current |
| P0138 | Bank 1 downstream signal high | Whether the exhaust is genuinely rich at that position or a signal, return, heater, connection, sensor, or controller fault is forcing misleading evidence |
| P0141 | Bank 1 downstream heater performance | Whether the post-catalyst sensor heater and its monitored electrical paths can make the sensor ready normally |
| P0420 | Bank 1 catalyst efficiency | Whether valid upstream/downstream evidence still shows reduced Bank 1 oxygen-storage performance after other causes are excluded |
| P0430 | Bank 2 catalyst efficiency | Whether valid upstream/downstream evidence still shows reduced Bank 2 oxygen-storage performance after other causes are excluded |
The code identifies the evidence path that failed. It does not choose the replacement part.
What the driver or technician may notice
- a malfunction indicator lamp with otherwise normal operation;
- increased fuel consumption, roughness, hesitation, or an exhaust odor when an underlying mixture or combustion problem is present;
- multiple oxygen-sensor, fuel-trim, misfire, or catalyst codes rather than one isolated DTC;
- a catalyst-area rattle, reduced-power complaint, or heat discoloration when a converter is physically damaged or restricted;
- a pending code or stored operating record even when the symptom cannot be reproduced in the bay;
- monitor readiness that remains incomplete after codes or battery power were cleared.
These observations do not prove one repair. Preserve the original scan and stored operating conditions before clearing codes.
Common failure categories
Heater power, control, ground, wiring, or terminal faults
A heater circuit can show voltage with no load yet fail when current is required. Corrosion, water intrusion, poor terminal tension, high resistance, damaged insulation, exhaust heat, or harness contact with a sharp or moving part can disrupt normal heater operation. Because sensor diagnostics are interdependent, one circuit fault can also affect how another monitor interprets the signal.
Inspect first, then use the current load-capable test method. Do not apply battery voltage, use an unsuitable test light, or pierce sealed wiring unless the exact service procedure permits it.
The sensor signal is not credible
A signal or return circuit that is open, shorted, biased, or electrically noisy can misrepresent the exhaust. A sensor may remain connected yet respond poorly because of age or contamination from oil, coolant, excess fuel, sealants, or outside chemicals. Replacement history also matters: one new sensor paired with an aged sensor in the comparison path can change the relationship the monitor sees.
Evaluate signal behavior as a pattern under a controlled operating condition. One instantaneous value and visual appearance alone are weak evidence.
A real mixture or combustion problem changes the exhaust
Injector, ignition, airflow, purge, fuel-pressure, cam-control, or engine-mechanical faults can create exhaust that is genuinely rich, lean, or oxygen-heavy. Misfire adds oxygen while also sending unburned fuel and heat toward the catalyst. Oil consumption, coolant entry, or excessive fueling can contaminate sensors and permanently damage converter material.
Resolve active misfire, mixture, injector, and relevant engine faults before making a catalyst verdict. A replacement converter can fail again if the root cause remains.
Exhaust leakage changes what the sensors see
Air entering through an exhaust leak can change oxygen content near a sensor and disturb the upstream/downstream relationship. Check joints, flanges, damaged tubing, sensor threads, and converter boundaries. A leak that is quiet at idle may still matter under the pressure and pulsation present during the original failure condition.
Use a safe, suitable leak-test method and repair leakage before evaluating catalyst efficiency.
The catalytic converter is damaged or has lost capacity
A converter can lose efficiency through aging, contamination, severe overheating, impact damage, internal breakage, or prolonged exposure to a rich mixture or misfire. Inspect for dents, holes, leakage, rattling, internal breakup, or abnormal discoloration. Visible damage still requires a root-cause check.
Replace a converter only after the inputs used by the monitor and the upstream causes of damage have been proven. P0420 and P0430 are not automatic converter-replacement instructions.
A practical system-first diagnostic strategy
1. Preserve evidence and confirm applicability
Confirm the exact model, engine, exhaust configuration, calibration status, and current service information. Save the complete module scan, confirmed and pending DTCs, freeze-frame or failure-record data, monitor status, fuel trims, misfire information, and relevant sensor data before clearing anything.
2. Establish code priority
Handle active heater, signal, reference, power, ground, misfire, injector, fuel-trim, and engine-mechanical faults that can invalidate catalyst evidence. P0420 or P0430 should not outrank faults that make their sensor inputs untrustworthy.
3. Inspect the exhaust and harness environment
With the system cool, inspect wiring routing, connectors, terminal locks, heat shielding, sensor installation, exhaust joints, impact damage, leakage evidence, converter condition, and areas disturbed by recent work. Look for oil, coolant, or excess-fuel contamination and review sensor or converter replacement history.
4. Prove heater and signal integrity
Use the exact procedure to command or observe heater operation and prove the heater element and circuit under load. Then determine whether each signal responds plausibly to real exhaust changes. Separate a genuine mixture condition from an electrically forced reading. Leave controller replacement until the sensor, wiring, connector, and terminal paths have been isolated.
5. Compare banks, sensor positions, and operating patterns
Graph upstream and downstream activity together during a stable, appropriate operating condition. Compare Bank 1 with Bank 2 and look for a pattern that follows one sensor, one bank, both banks, or a particular engine operating region. The comparison is useful only when the sensors are ready and the monitor conditions are valid.
6. Prove the engine and exhaust are not misleading the monitor
Test for exhaust leakage, active mixture-control problems, misfire, oil or coolant consumption, excessive fueling, and other engine conditions supported by the scan evidence. Correct these causes and re-evaluate sensor behavior before deciding that catalyst oxygen storage is low.
7. Evaluate the catalyst only with valid inputs
After the sensors, heaters, circuits, exhaust path, and engine condition are credible, use the manufacturer-specified catalyst test or monitor. A converter decision belongs at the end of the diagnostic path, not at the beginning.
8. Verify the complete repair
Reconnect every sensor and retainer, restore shields and harness routing, clear codes only when directed, and complete any required setup. Reproduce the stored operating region or perform the current verification routine. Confirm that the relevant monitor completes, sensor behavior remains plausible, and no pending or confirmed DTC returns. A cleared warning lamp with an incomplete monitor is not a verified repair.
Safety around oxygen sensors and catalysts
Exhaust manifolds, pipes, sensors, and catalytic converters can remain hot long after shutdown. Allow the system to cool, wear appropriate eye and hand protection, and keep flammable material away. Support the truck at approved lifting points with equipment rated for its weight; never work beneath a vehicle supported only by a jack.
Running tests place the technician near fans, belts, hot exhaust, and moving driveline parts. Secure leads and hoses, maintain ventilation, and use exhaust extraction in an enclosed work area. Follow current service information before disconnecting power or performing any test that could start or move the vehicle.
Final takeaway
On the 2019–2024 Ram 1500 Classic 3.6L Pentastar Gas, the sensor heaters, upstream and downstream signals, engine condition, exhaust path, and two catalytic converters form one evidence chain. Heater and signal codes mean that sensor evidence may be unreliable; catalyst-efficiency codes mean that a completed monitor judged the upstream/downstream relationship unacceptable. Neither conclusion identifies the failed part by itself.
Preserve the operating evidence, establish DTC priority, prove heater and signal circuits, inspect for leaks and contamination, correct engine causes, and evaluate catalyst performance only after its inputs are credible. The linked STEP guides provide model-specific educational paths; current service information for the exact truck controls specifications, commands, connectors, service procedures, and final verification.
