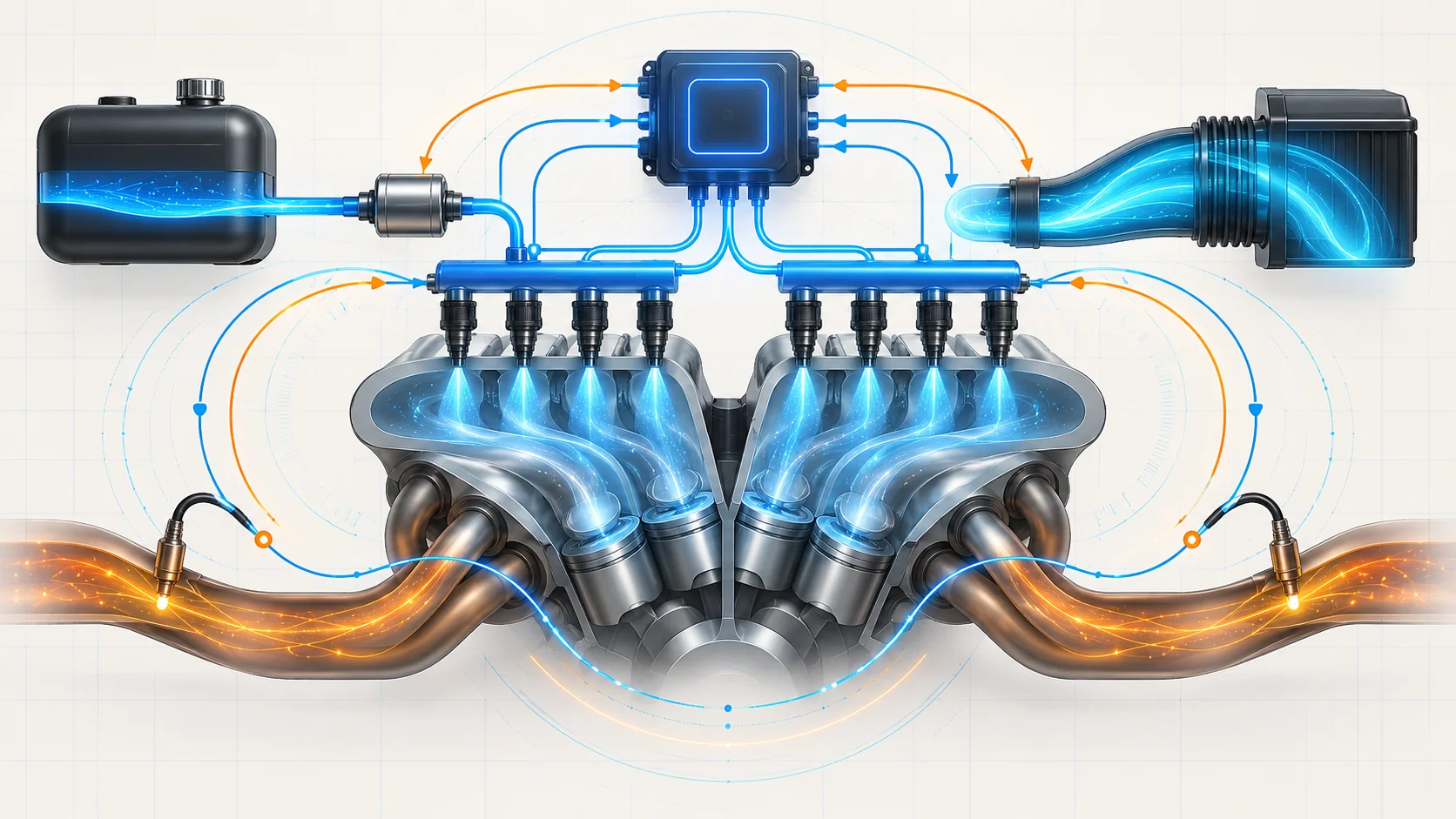

What the system does
The fuel delivery and air-fuel control system has to supply clean gasoline, meter it into the engine, and continually correct the commanded mixture as airflow, load, temperature, purge flow, and combustion conditions change. The powertrain control module (PCM) coordinates injector operation with intake information and exhaust oxygen feedback, then learns correction over time.
Exact 2019 and 2024 application endpoints support this 2019-2024 STEP vehicle profile. Detailed diagnostic evidence for this overview was verified on the exact 2024 Ram 1500 Classic Truck 4WD 5.7L application. Before using an exact value, connector view, component location, command, or service procedure, verify the VIN, model year, calibration, installed configuration, and current service information for the truck being repaired.
A fuel-trim DTC reports that the controller had to correct the mixture beyond a calibrated boundary. It does not identify the failed part. P0171 and P0174 point to lean correction on different banks; P0175 points to rich correction on Bank 2. The technician still has to prove whether air, fuel, purge, exhaust feedback, wiring, or engine condition caused the result.
Main functional sections
- Fuel supply: The tank module, pump, pickup, lines, electrical feed, fuel quality, and pressure regulation have to provide stable delivery across starting, idle, cruise, and load.
- Fuel metering: The injectors must receive correct electrical control and deliver an appropriate, consistent amount of fuel to each cylinder.
- Air and load information: Intake pressure, airflow, temperature, throttle state, engine speed, and load help the PCM calculate the starting fuel command.
- Exhaust feedback: Upstream oxygen sensors report whether combustion is trending richer or leaner than the target so the PCM can correct the command. Downstream feedback can contribute to catalyst-related correction but does not replace upstream mixture evidence.
- Adaptive correction: Short-term fuel trim reacts to the current error. When a correction persists, the PCM can move part of it into long-term trim. The combined pattern is a diagnostic clue, not a component test.
- Vapor influence: Purge flow introduces stored fuel vapor into the intake. Uncommanded or excessive purge can shift the mixture and can be mistaken for an injector, sensor, or fuel-supply problem.
How the feedback loop works
The PCM estimates the fuel required for the air entering the engine and commands injector pulse width. Once the system is in closed loop, oxygen-sensor feedback shows whether the result is richer or leaner than intended. Short-term trim adjusts quickly; long-term trim represents a learned correction that has persisted.
Positive correction means the PCM is adding fuel relative to its base calculation. Negative correction means it is subtracting fuel. That direction is useful, but the number alone does not identify the cause. Unmetered air, restricted delivery, incorrect fuel, purge flow, biased load information, exhaust leakage, oxygen-sensor circuit trouble, injector flow, ignition, and engine mechanical faults can all influence the feedback loop.
Bank behavior narrows the field. A large correction on one bank favors a bank-specific air leak, exhaust leak, injector issue, sensor path, or mechanical condition. Similar correction on both banks raises the priority of shared air measurement, fuel supply, purge, fuel quality, or another common influence. Idle-versus-load behavior adds another dimension, but it must be interpreted with freeze-frame data and the exact service procedure.
What the related DTCs tell you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0171 | Bank 1 lean correction | Whether unmetered air, purge influence, restricted or incorrect fuel delivery, an exhaust or oxygen-feedback problem, injector behavior, wiring, or engine condition caused Bank 1 correction to reach its limit |
| P0174 | Bank 2 lean correction | Whether a Bank 2-specific fault or a shared intake, airflow, fuel, purge, exhaust-feedback, electrical, or mechanical problem explains the lean result |
| P0175 | Bank 2 rich correction | Whether excess fuel, injector leakage, purge flow, restricted air, biased sensor information, exhaust restriction, oxygen-feedback error, wiring, or engine condition caused the PCM to remove excessive fuel |
P0171 is not proof of a Bank 1 oxygen-sensor failure. P0174 is not an instruction to replace Bank 2 injectors. P0175 is not proof that fuel pressure is high. Each code identifies the failed control result and bank; the cause remains to be tested.
What the driver or technician may notice
Possible observations include:
- a malfunction indicator lamp with little immediate drivability change;
- rough idle, hesitation, surge, stumble, hard starting, stalling, or reduced power;
- a fuel odor, dark exhaust, poor fuel economy, or rough hot restart with a rich condition;
- positive or negative fuel trim concentrated on one bank or shared by both banks;
- a trim pattern that changes significantly between idle and a stable raised-speed or loaded condition;
- symptoms that appear after refueling, during purge operation, at low fuel level, under load, or after intake, exhaust, injector, or wiring work;
- companion airflow, pressure, purge, oxygen-sensor, injector, misfire, voltage, or communication codes.
Symptoms can help reproduce the fault, but they do not identify the failed component. The same rough idle can result from unmetered air, excess fuel, ignition, wiring, or a mechanical cylinder problem.
Safety before testing
Gasoline and fuel vapor ignite easily, and the system can retain pressure after the engine is switched off. Work in a ventilated area away from flames, sparks, smoking, hot surfaces, and unapproved electrical equipment. Wear suitable eye or face protection and gloves, contain released fuel, clean spills immediately, and follow the exact pressure-relief procedure before opening any line, rail, pump, or injector connection.
Inspect for external leakage before running the engine and stop testing if a leak is found. Let hot engine and exhaust components cool before working nearby. Support the vehicle correctly if access underneath is required.
Use terminal-safe probes and the exact wiring information. Do not force test leads into terminals, apply improvised power to injector or control circuits, or probe PCM terminals. A generic connector view or procedure from another model year is not a safe substitute for current service information for the exact truck.
Common failure categories
1. Unmetered air or intake leakage
A split hose, intake-manifold leak, brake-booster leak, crankcase-ventilation fault, loose duct, or sealing problem can add air the PCM did not account for. A bank-specific leak may affect one side more strongly; a shared leak can affect both banks. A condition that is most pronounced at idle can support this branch, but the pattern is not a standalone parts test.
2. Fuel supply or fuel-quality problem
A weak pump, restricted pickup or line, poor electrical supply, pressure-control problem, low fuel level, contamination, or incorrect fuel can create a lean correction, especially under demand. Fuel composition can also affect the learned result. Prove delivery in the stored operating condition before replacing supply components.
3. Injector flow or leakage problem
A restricted injector can drive its bank lean; a leaking injector can drive it rich and may affect hot restart or fuel odor. Electrical command, injector flow, leakage, and cylinder contribution are separate questions. Do not replace an injector until the supported test branch identifies it.
4. Purge-system influence
A purge valve that does not seal, incorrect vapor flow, or contaminated vapor plumbing can change mixture without a primary injector or pump failure. Because purge influence varies with operating state, compare command, observed behavior, and the exact directed test rather than pinching hoses or applying generic vacuum values.
5. Airflow, pressure, or temperature input bias
Incorrect MAP, MAF, coolant-temperature, or related load information can make the PCM calculate the wrong base fuel command. Compare related data for plausibility and test the circuit before condemning the sensor.
6. Exhaust or oxygen-feedback problem
An exhaust leak can introduce oxygen and create a false lean indication. A restricted exhaust, biased oxygen sensor, heater problem, damaged wiring, poor terminal fit, or slow feedback can distort correction in either direction. A fuel-trim code records the controller response; it does not prove the reporting sensor caused it.
7. Ignition or engine mechanical problem
Weak ignition, compression loss, valve-timing trouble, air restriction, or another combustion fault can change exhaust oxygen and fuel correction. Misfire data, cylinder contribution, compression, and mechanical evidence keep a combustion problem from being misdiagnosed as fuel delivery.
8. Wiring, connection, or controller problem
Corrosion, spread terminals, abrasion, heat damage, poor grounds, reference or signal faults, and intermittent harness movement can corrupt sensor or actuator behavior. The PCM belongs at the end of a proven diagnostic path after powers, grounds, circuits, inputs, outputs, and loads pass their directed checks.
A practical diagnostic strategy
1. Preserve the evidence
Scan all modules before clearing codes or resetting learned values. Save DTC status, freeze-frame data, short- and long-term trims for both banks, oxygen-sensor response, MAP and MAF data where applicable, purge command, coolant temperature, system voltage, fuel level, misfire information, and the speed and load at which the fault set. Record recent fueling, intake, exhaust, engine, calibration, or wiring work.
2. Establish code priority
Address low voltage, lost communication, shared-power, reference-voltage, direct sensor or actuator circuit faults, and related fuel/air codes before trusting performance data influenced by those systems. Follow the current service-information priority when several codes are present.
3. Check safety and visible evidence
Look for fuel leakage, damaged lines, loose intake plumbing, split vacuum or crankcase-ventilation hoses, disturbed purge plumbing, connector damage, heat exposure, abrasion, contamination, a loose oil cap or dipstick, and exhaust leakage. Visual evidence should choose the next test, not replace it.
4. Compare banks and operating conditions
Determine whether the correction is isolated to Bank 1, isolated to Bank 2, or similar on both banks. Compare the stored condition with idle, the applicable stable raised-speed condition, and load only when the exact procedure allows it. Bank and condition patterns help rank branches; they do not authorize a parts replacement.
5. Separate air, fuel, purge, and feedback
Use evidence-supported tests for intake sealing, fuel delivery and quality, injector balance or leakage, purge sealing, airflow/load plausibility, exhaust leakage or restriction, and oxygen-sensor response. Do not use an exact value from another year or configuration. A single plausible PID does not prove the entire system.
6. Verify electrical integrity
Inspect connector and terminal condition, then test powers, grounds, signals, control circuits, and harness movement with the correct terminal-safe method. Do not bypass loads or assume a good visual inspection proves circuit integrity.
7. Check ignition and engine mechanics when indicated
If fuel and air evidence does not explain the result, use misfire, cylinder-contribution, compression, leakage, valve-timing, and exhaust-flow evidence to evaluate combustion and mechanical causes. Unburned oxygen from a misfire can resemble a lean mixture at the sensor.
8. Verify the repair
Correct the proven cause, inspect for leakage, and clear codes or learned values only when the exact procedure directs it. Repeat the applicable self-test or safe drive condition, confirm that trims and oxygen feedback normalize, verify restored drivability, and re-scan all modules. A cleared lamp or a monitor that has not rerun is not proof of repair.
Repair direction by confirmed cause
- Repair intake, vacuum, brake-booster, crankcase-ventilation, or sealing leaks when they explain the bank and operating-condition pattern.
- Correct fuel contamination, line restriction, pump supply, pressure-control, or electrical-feed faults before replacing unrelated sensors.
- Clean, repair, or replace an injector only when electrical, balance, flow, or leakage evidence identifies the fault.
- Repair purge sealing or control only after observed flow and the exact directed test support that branch.
- Repair exhaust leaks or restrictions and oxygen-sensor circuits before using the sensor output as reliable mixture evidence.
- Repair power, ground, reference, signal, connector, terminal, or harness faults before replacing a sensor or controller.
- Correct ignition, compression, valve-timing, air-restriction, or other mechanical faults when they explain the feedback result.
- Do not replace the PCM until its powers, grounds, circuits, loads, inputs, outputs, and applicable diagnostic path support that conclusion.
Final takeaway
The Ram 1500 Classic 5.7L fuel and air-fuel control system is a supply chain and a feedback loop. The pump and lines deliver fuel, injectors meter it, air and load inputs establish the command, and oxygen feedback lets the PCM make short- and long-term corrections. P0171 and P0174 ask why one bank required excessive positive correction; P0175 asks why Bank 2 required excessive negative correction. None identifies the failed part by itself. Preserve the stored condition, compare banks, separate shared causes from bank-specific causes, and prove air, fuel, purge, feedback, electrical, and mechanical branches in that order of evidence. That approach prevents unnecessary oxygen-sensor, injector, pump, and PCM replacement while keeping gasoline-system work safe.
