What the misfire monitor is actually measuring

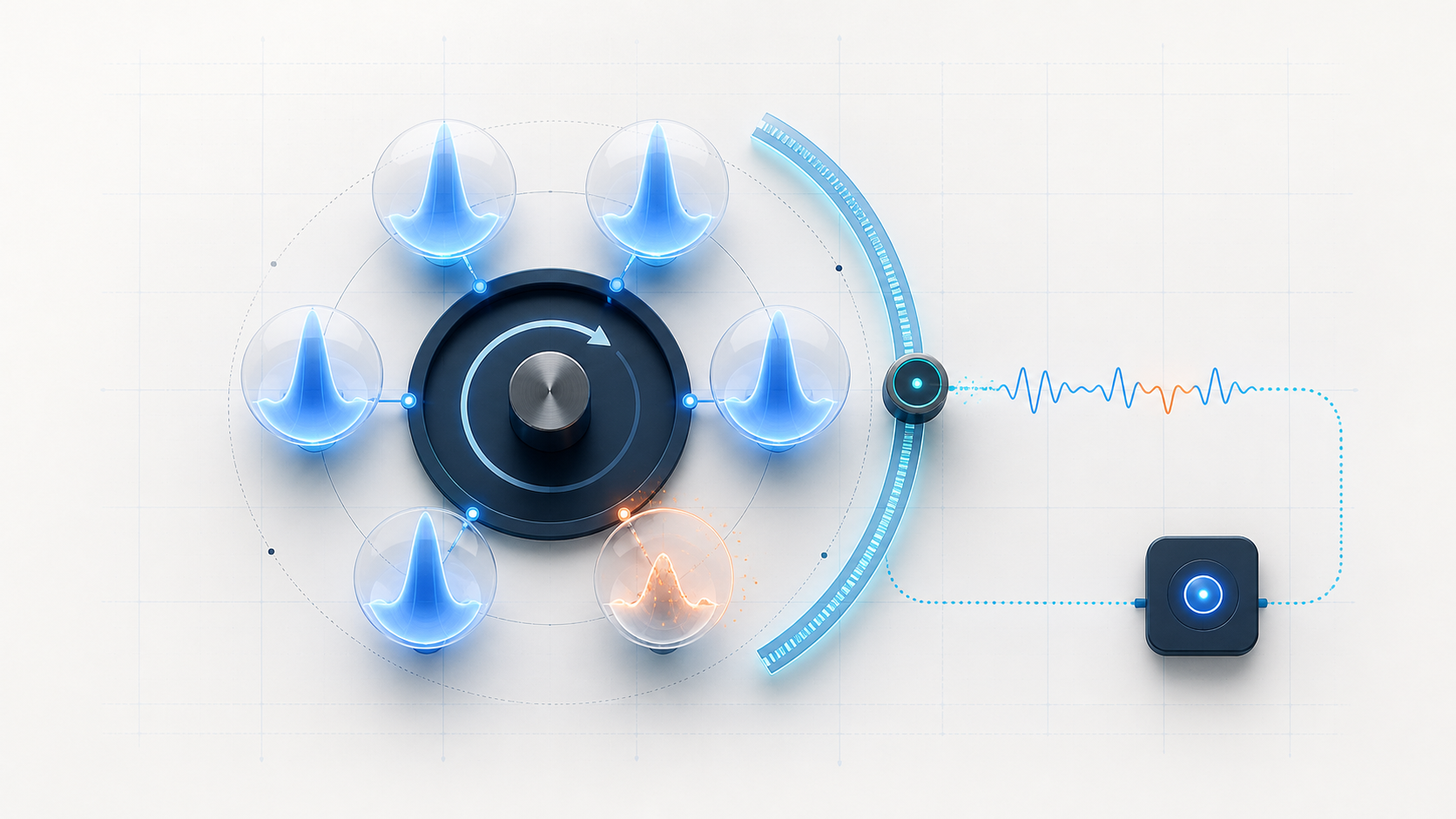

A combustion misfire is a weak, late, incomplete, or missing power event. The powertrain control module (PCM) does not look inside the cylinder and identify the failed spark plug, injector, valve, or gasket. It infers the event from what the crankshaft does after each cylinder should have contributed torque.
The crankshaft-position (CKP) sensor gives the PCM a high-resolution view of crankshaft position and rotational speed. Under normal combustion, each cylinder produces a predictable acceleration contribution. When one contribution is weaker than expected, crankshaft speed changes abruptly in the corresponding part of the firing sequence. The PCM compares that variation with its learned crankshaft pattern, engine speed, load, and other operating information and assigns a misfire count.
That distinction controls the diagnosis: a P0300-series code reports a crankshaft-speed disturbance attributed to combustion timing. It does not prove which component caused it. Ignition, fuel, air, compression, valve operation, cam timing, oil control, coolant entry, signal quality, and even some non-combustion vibration can produce a similar result.
The system in functional layers
- Combustion inputs: The cylinder needs the correct air charge, fuel quantity and atomization, spark energy and timing, compression, valve motion, and mechanical timing.
- Crankshaft measurement: The CKP sensor, tone wheel, wiring, connectors, and PCM input must produce a stable crankshaft-speed reference.
- Cylinder identification: Camshaft information and the firing sequence allow the PCM to associate a speed disturbance with a particular cylinder.
- Learned correction: The PCM accounts for small normal variations in the crankshaft target. The applicable cam/crank relearn supports misfire monitoring after certain sensor, flywheel, timing, phaser, or valvetrain work.
- Fault response: The PCM accumulates misfire information under defined operating conditions. A severe catalyst-damaging event can flash the malfunction indicator lamp, and the control strategy may temporarily stop fueling an affected cylinder.
Each layer has to be credible. A healthy coil cannot correct low compression. A good compression reading cannot prove injector delivery. A relearn cannot repair a damaged tone wheel or unstable CKP signal.
What the related DTCs tell you
| DTC | Diagnostic pattern | What it directs you to prove |
|---|---|---|
| P0300 | Multiple or changing-cylinder misfire | Whether a shared air, fuel, oil, timing, coolant, electrical, mechanical, or vibration-related condition explains the pattern before several cylinder-specific parts are replaced |
| P0301 | Cylinder 1 misfire | Whether ignition, injector delivery, intake sealing, compression, valve operation, wiring, or another local condition follows cylinder 1 |
| P0302 | Cylinder 2 misfire | Whether the fault remains with cylinder 2 and which local or bank-related subsystem changes the result |
| P0304 | Cylinder 4 misfire | Whether cylinder 4 has a repeatable ignition, fuel, air, compression, valvetrain, or circuit problem |
| P0305 | Cylinder 5 misfire | Whether the cylinder 5 result can be isolated by evidence rather than by replacing a likely part |
| P0306 | Cylinder 6 misfire | Whether cylinder 6 has a local fault or is one part of a wider bank or engine pattern |
P0300 often points toward something shared by several cylinders, while a stable cylinder-specific code often points toward a local ignition, injector, sealing, or valvetrain problem. Those are useful tendencies, not rules. A vacuum leak can affect one cylinder most strongly, one failed mechanical component can disturb other cylinders, and a common oil or timing problem can initially look cylinder-specific.
What the driver or technician may notice
Possible observations include:
- a steady or flashing malfunction indicator lamp;
- rough idle, shaking, hesitation, surging, reduced power, or stalling;
- an intermittent miss only when cold, hot, accelerating, cruising, decelerating, or operating at a particular speed and load;
- fuel odor, poor fuel economy, hard starting, or extended cranking;
- one cylinder accumulating counts consistently, several cylinders on one bank, or changing cylinders across both banks;
- a miss after fuel, ignition, intake, valve-train, timing, sensor, battery, or PCM work;
- no obvious symptom even though a pending code and stored failure record show that the monitor detected an event.
The operating condition matters as much as the cylinder number. A cold-start-only misfire, a high-load misfire, and a hot-idle misfire should not begin with the same assumptions.
Safety comes before misfire diagnosis
A flashing malfunction indicator lamp can indicate a severe misfire capable of overheating the catalytic converter. Reduce engine load and stop operation as soon as it is safe when the engine is shaking heavily, power is sharply reduced, raw fuel is evident, or the lamp continues flashing. Do not keep driving only to see whether the code clears.
The verified 3.6-liter application uses eTorque stop/start hardware. Before underhood work, put the vehicle in the safe service state required by current information and verify that the engine cannot restart unexpectedly. Do not improvise battery-isolation or high-voltage procedures, and do not touch orange cables or eTorque components unless the exact service task requires it and the technician is qualified.
Running tests place the technician near belts, pulleys, the cooling fan, hot exhaust parts, and secondary ignition voltage. Secure clothing, leads, and tools; keep clear of moving parts; and use equipment rated for the test. Disable fuel or ignition only through the specified procedure.
Fuel and fuel vapor are flammable, and the fuel system can remain pressurized with the engine off. Work in a ventilated area away from sparks and flame. Relieve pressure, contain leakage, and use eye and skin protection before opening the system. Current service information controls the exact method.
Failure categories represented by a P0300-series fault
1. Ignition energy is missing or weak
A worn or contaminated spark plug, excessive gap, damaged insulator, weak coil, poor coil power supply, control-circuit fault, loose terminal, moisture, or tracking path can reduce spark energy. Heat and cylinder pressure can expose a weakness that is invisible at idle.
A controlled coil or plug swap can be useful when the parts are interchangeable and serviceable. Mark the components, move only one variable at a time, reproduce the same operating condition, and see whether the misfire follows. A swap result is evidence, not permission to ignore plug-well contamination, connector fit, power supply, or mechanical condition.
2. Fuel quantity or delivery is wrong
A restricted supply, weak pump, contaminated fuel, pressure problem, leaking injector, restricted injector, poor electrical control, or unequal injector delivery can create a lean, rich, or inconsistent cylinder. Review fuel-trim and oxygen-sensor behavior together with misfire counts, but remember that a misfiring cylinder can send unused oxygen into the exhaust and make the mixture appear lean.
Use the directed fuel test to separate system pressure and volume from cylinder-specific injector behavior. Do not condemn an injector from a resistance check or sound alone, and do not open a pressurized system without the correct safety procedure.
3. The air charge is uneven or uncontrolled
An intake leak, manifold or runner sealing problem, PCV or purge flow issue, throttle/airflow problem, exhaust restriction, or coolant entry can change one cylinder, one bank, or the whole engine. Smoke testing and inspection are most useful when they match the suspected leak path and the stored operating condition.
4. Valve timing, valve lift, or oil control is incorrect
The 3.6-liter diagnostic path includes oil condition and pressure, cam response, and variable valve lift/valvetrain checks where equipped. Low, contaminated, aerated, or incorrect oil; pressure loss; restricted passages; control-solenoid problems; cam-phaser response; rocker or lash-adjuster faults; or shifted mechanical timing can change cylinder filling and combustion.
These faults may affect one cylinder, a bank, or several cylinders. Check oil level, condition, specification, service history, and related cam, oil-pressure, or valve-control DTCs before replacing ignition parts repeatedly.
5. The cylinder cannot seal or compress the charge
Valve leakage, valve-train damage, ring or piston damage, head-gasket leakage, a cracked component, or another mechanical problem can create a persistent misfire. A compression comparison is a screening test. A leakage test helps locate whether pressure is escaping through the intake valve, exhaust valve, crankcase, cooling system, or an adjacent cylinder.
Use the exact test setup and interpretation for the truck. One low reading should be repeated and evaluated with engine condition, cranking speed, valve operation, and leakage evidence before disassembly.
6. Crankshaft measurement or learned correction is unreliable
A CKP circuit problem, poor connection, target damage, excessive runout, incorrect installation, unstable cranking speed, or electrical interference can corrupt misfire detection. After relevant CKP, CMP, flywheel, timing, phaser, or valvetrain work, the PCM may require the applicable cam/crank relearn.
The relearn is a setup procedure, not a repair. It cannot stabilize a failing sensor, straighten a damaged target, restore mechanical timing, or cure a real combustion fault.
7. A non-combustion disturbance is imitating a misfire
The PCM is evaluating crankshaft acceleration, so severe wheel imbalance or braking vibration, a damaged belt, or a binding belt-driven accessory can sometimes disturb the signal enough to complicate diagnosis. Consider this category only after the event pattern and service information support it; it should not become a shortcut around normal combustion checks.
A practical system-first diagnostic strategy
Step 1: Confirm the exact truck and preserve the evidence
Verify model year, engine, eTorque configuration, drivetrain, calibration, fuel, oil, recent repairs, and applicable service information. Save the complete module scan, confirmed/pending/history codes, freeze-frame or failure-record data, and misfire information before clearing anything. Note engine speed, load, temperature, vehicle speed, fuel level, fuel trims, and whether the event occurred during start, idle, acceleration, cruise, or deceleration.
Step 2: Decide whether continued running is safe
If the MIL is flashing or the engine is shaking severely, limit operation. Check for raw fuel, abnormal mechanical noise, low oil pressure, overheating, or another condition that makes further running unsafe. Catalyst protection and engine protection take priority over reproducing the complaint.
Step 3: Classify the pattern
Ask whether the same cylinder repeats, several cylinders share one bank, or counts move across the engine. Compare current counts with the stored failure record. Determine whether the miss is load-related, speed-related, temperature-related, fuel-level-related, or associated with stop/start operation.
The pattern sets the efficient branch. A stable single-cylinder event supports controlled local comparisons. A changing multiple-cylinder event supports shared air, fuel, oil, timing, electrical, or mechanical checks first.
Step 4: Prioritize related faults and obvious shared conditions
Resolve higher-priority circuit, voltage, crank/cam signal, airflow, fuel-control, oil-pressure, cam-timing, or valve-control faults as directed. Inspect battery condition, grounds, recent work, harness routing, intake connections, coolant level, oil level and condition, and signs of fuel or coolant contamination. Do not erase evidence or disturb several components at once.
Step 5: Reproduce the original operating region with scan data
When it is safe, monitor misfire counts and relevant fuel, airflow, oxygen-sensor, cam, and engine-speed information while reproducing the stored condition. Use the exact data names and test limits for the truck. A smooth idle after clearing codes does not disprove a high-load or cold-start event.
Step 6: Test the most likely local cause with one controlled change
For a repeatable cylinder-specific event, inspect the plug, coil, well, connector, and nearby harness. If current service information permits a swap, move one known comparable component and repeat the same operating condition. If the misfire follows, confirm the component and its environment before replacement. If it stays, return the parts to a known configuration and continue to injector, air-sealing, and mechanical checks.
Step 7: Prove fuel and air rather than guessing
Use fuel quality, trim, oxygen-sensor, pressure/volume, leak-down, and injector-comparison evidence as appropriate. Check for intake, PCV, purge, exhaust, or coolant paths that fit the cylinder/bank pattern. Interpret lean-looking exhaust data cautiously because incomplete combustion leaves oxygen in the exhaust.
Step 8: Check compression, leakage, oil control, and valvetrain condition
When ignition and fuel evidence do not explain a persistent cylinder, compare compression and follow with leakage or valvetrain inspection as directed. For bank or multiple-cylinder patterns, evaluate oil pressure, cam response, valve-lift control, timing, and shared oil passages before condemning several individual components.
Step 9: Evaluate CKP integrity and relearn history
If the misfire appeared after flywheel, sensor, timing, phaser, or valvetrain work—or the event pattern does not match combustion evidence—inspect the crankshaft signal path and target as directed. Perform the applicable cam/crank relearn only after the signal and mechanical system are credible and every prerequisite is satisfied.
Step 10: Verify the complete repair
Reconnect and secure every disturbed connector, coil, injector, hose, intake joint, shield, retainer, and ground. Complete any required setup or relearn. Clear codes when directed, repeat the relevant self-test, and reproduce the original operating region. Confirm that misfire counts remain normal and that no related pending or confirmed DTC returns.
A cleared warning lamp, a brief smooth idle, or a code that has not yet rerun is not repair verification.
Match the repair to the proven failure
The supported repair may be a terminal or harness repair, corrected intake leak, proper oil service, restored oil pressure or valve-control operation, ignition-component replacement, injector or fuel-delivery repair, corrected cooling-system leak, repaired valve train or timing hardware, CKP/target repair, or a completed relearn after the underlying system is sound.
Avoid common shortcuts:
- replacing all coils or plugs because several cylinders are listed;
- replacing an injector because the exhaust data looks lean during a misfire;
- using a coil swap without reproducing the same load and temperature;
- clearing codes before saving freeze-frame and misfire evidence;
- treating P0300 as proof of bad fuel or a vacuum leak;
- treating a cylinder-specific code as proof of a plug, coil, or injector;
- repeating a cam/crank relearn to hide an unstable signal or mechanical problem;
- continuing to run a severe flashing-MIL misfire and damaging the catalyst.
Final takeaway
On the 2019-2025 Ram 1500DT 3.6 Pentastar, the misfire monitor is a crankshaft-speed measurement system watching the result of combustion. It can identify a multiple-cylinder pattern or attribute a disturbance to a cylinder, but it cannot name the failed part.
Start with severity, the complete code set, stored operating evidence, and the cylinder pattern. Then use controlled tests to separate ignition, fuel, air, oil/valve-control, mechanical sealing, crankshaft-signal, and learned-correction causes. Finish by reproducing the original condition and confirming that the monitor remains clean. The linked STEP DTC guides provide model-specific educational paths; current service information for the exact truck controls values, commands, connectors, eTorque safety procedures, disassembly, setup, and final verification.
