Vehicle group: 2010-2016 Honda CR-V 2.4 Gas
Start with the generation split
The 2010-2016 STEP vehicle group does not contain one safely interchangeable fuel-system procedure. The verified 2010 2.4-liter source describes a PCM-controlled in-tank pump supplying the injectors. The verified 2015 and 2016 CR-V 4WD K24W9 configuration uses gasoline direct injection, including a mechanically driven high-pressure pump, pressure-control solenoid, high-pressure rail, rail-pressure feedback, and direct injectors. The collected evidence does not independently establish the exact architecture for every 2011-2014 configuration, so identify those vehicles from their engine code and applicable service information rather than assigning them to either example by year alone.
That distinction changes the diagnostic plan. Low-pressure supply, mixture feedback, injector operation, and exhaust feedback matter across the range, but P0087, P0088, P2623, direct-injection pressure data, and high-pressure-pump checks belong to the later direct-injection configuration. Confirm the model year, drivetrain, engine code, emissions label, and applicable service information before choosing a procedure. Do not apply a 2016 K24W9 pressure test or connector check to an earlier engine because the public vehicle category shares the same displacement.
The detailed service-information evidence used here was verified on a 2016 Honda CR-V 4WD with the K24W9 engine. The detailed P0172, P2097, and P219A diagnostic paths in the review package are also exact-2016 evidence; this overview uses them only for high-level diagnostic categories. Exact DTC availability, specifications, scan-tool functions, connector identities, component locations, and repair procedures must come from service information for the vehicle being repaired.
What the fuel system must accomplish
The system has to deliver a controlled amount of gasoline to each cylinder while the PCM evaluates whether combustion matches the command. The fuel path and the feedback path work together:
- The in-tank pump and low-pressure circuit must provide a clean, sealed, adequate supply.
- On the later direct-injection engine, the high-pressure stage must raise and regulate rail pressure as load changes.
- The injectors must deliver the commanded quantity consistently.
- Airflow, air-fuel, and oxygen-sensor information must be believable enough for the PCM to judge mixture control.
- Ignition, EVAP purge, intake, exhaust, and base-engine condition must be sound because faults in those systems can imitate a fuel-delivery problem.
A DTC identifies a monitored behavior that did not meet expectation. It does not identify the part that must be replaced.

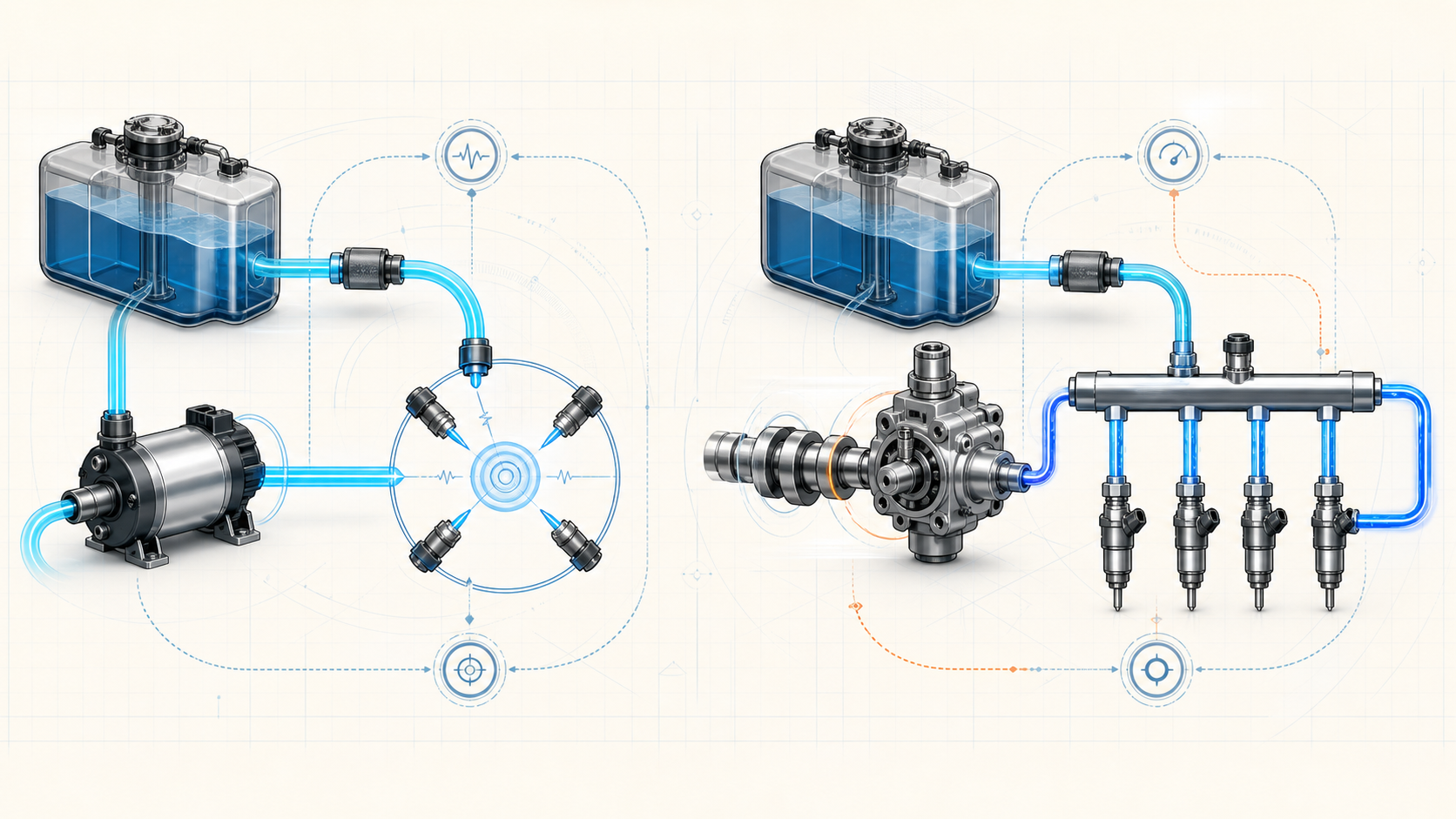

The verified 2010 fuel-supply architecture
On the verified 2010 target, the PCM controls the in-tank pump through PGM-FI relay logic. The pump supplies fuel to the injectors when the engine is being started or is running, and the PCM also controls injector operation and fuel cut-off. Diagnosis therefore begins with pump power and command, delivery pressure and volume, injector operation, mixture feedback, and the condition of the related electrical and mechanical systems.
There is no verified mechanically driven high-pressure stage in the captured 2010 system description. If a vehicle matches that architecture and has a rich-mixture, post-catalyst, or cylinder-balance code, do not introduce late direct-injection components into the diagnostic plan. Use the pressure specification, electrical path, and injector procedure for its exact configuration. For 2011-2014, determine the installed architecture first.
The 2015-2016 K24W9 direct-injection architecture
The verified late system has two pressure sections.
- Low-pressure supply: The in-tank pump moves fuel through the low-pressure circuit to the engine. A restriction, weak supply, leak, contaminated fuel, or electrical control problem can leave the next stage without enough fuel.
- Mechanically driven high-pressure pump: A cam on the engine drives the pump. The PCM controls a fuel-control solenoid while rail-pressure feedback shows how the high-pressure side responds.
- Joint pipe, fuel rail, and direct injectors: High-pressure fuel is delivered to the rail and metered directly into the combustion chambers.
- Rail-pressure feedback: The pressure signal lets the PCM compare actual system response with its target. The signal must be proven plausible before it is treated as a mechanical pressure measurement.
The high-pressure pump is only one part of that loop. Low-side supply, pump drive, pump control, rail-pressure sensing, wiring, connections, injectors, and PCM command can all change the pressure result.
How pressure control and mixture feedback relate
Pressure data and mixture data answer different questions.
- Rail-pressure data asks whether the fuel-pressure system follows the command.
- Fuel-trim data asks whether the engine needs abnormal correction to reach the expected mixture.
- Post-catalyst data asks whether downstream exhaust behavior matches the expected result.
- Cylinder-variation data asks whether one cylinder behaves differently from the group.
These observations can overlap without sharing one root cause. Low rail pressure can affect mixture under load. An injector can change one cylinder without producing a global pressure fault. An exhaust leak or biased sensor can distort feedback even when fuel delivery is mechanically correct. A compression or ignition problem can look like a fueling imbalance because the exhaust result changed.
The diagnostic goal is to decide which observation is primary and which is a consequence.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0087 | Direct-injection rail pressure below expected | On an applicable late direct-injection vehicle, whether low-side supply, leakage, pressure feedback, pump control, pump drive, or another related fault prevents pressure from following the target |
| P0088 | Direct-injection rail pressure above expected | On an applicable late direct-injection vehicle, whether the pressure signal is believable and whether high-pressure control can reduce pressure as commanded |
| P0172 | System-wide rich correction | Whether fuel pressure and quality, injector delivery, airflow information, purge flow, oil contamination, or air-fuel feedback explains the rich result |
| P2097 | Post-catalyst rich feedback | Whether exhaust integrity and upstream or downstream sensor evidence explain the completed monitor result after primary mixture faults are addressed |
| P219A | Cylinder-to-cylinder air-fuel variation | Whether compression, valve clearance, deposits or oil influence, injector behavior, ignition, or another cylinder-specific condition makes one cylinder differ from the group |
| P2623 | High-pressure-pump control circuit | On an applicable late direct-injection vehicle, whether relay feeds, control wiring, connections, pump-control circuitry, or PCM control prevents expected operation |
P2623 is especially easy to misread. It names the high-pressure-pump spill-valve function, but the verified diagnostic path includes relay power, control feeds, wiring, terminals, and module-side checks. It is not permission to replace the pump without circuit evidence.
What the driver or technician may notice
Possible observations include:
- a malfunction indicator lamp with few other symptoms;
- hard starting, a no-start, or an intermittent stall;
- hesitation, weak response, or reduced power under load;
- rough idle or uneven cylinder contribution;
- a rich fuel odor or reduced fuel economy;
- a fault that appears only under conditions similar to the stored snapshot;
- related injector, ignition, misfire, pressure-sensor, purge, air-fuel-sensor, or oxygen-sensor DTCs.
None of these symptoms proves that a pump or injector has failed. The code combination and captured operating conditions are more useful than the symptom alone.
Fuel safety comes before diagnosis
Gasoline is flammable, and the direct-injection side can retain hazardous pressure after the engine is switched off. Do not loosen a line to see whether pressure is present.
Work in a ventilated area away from ignition sources. Wear the protection required by the applicable procedure, relieve pressure by the approved method, and follow the specified battery-disconnection sequence before opening the system. Keep exposed fittings and lines clean, use the approved tools and containment method, and replace seals or one-time components when the service procedure requires it.
After any line, pump, rail, or injector work, assemble the system completely and perform the specified leak inspection before normal operation. If liquid fuel leakage is present, stop and correct the hazard before continuing diagnosis.
Common failure categories
1. Low-pressure supply cannot support engine demand
A weak pump, restriction, electrical supply problem, poor connection, leak, contaminated fuel, or an out-of-fuel event can reduce delivery. On the late engine, that upstream problem can prevent the mechanically driven pump from reaching its target. On the early engine, it can directly affect injector supply.
This is why low rail pressure on a direct-injection vehicle does not automatically condemn the high-pressure pump. Prove the supply entering that pump first.
2. High-pressure generation or control cannot follow the command
On the late K24W9 system, the pump drive, control solenoid, rail-pressure feedback, power and control circuits, and PCM command work as a unit. Pressure that remains below target and pressure that remains above target are different failure directions.
Compare command, response, and sensor plausibility before selecting a component. A worn drive, control-circuit problem, stuck control function, inaccurate signal, and inadequate low-side supply can create different evidence even though the pump appears in each diagnostic tree.
3. The mixture is rich, or the feedback says it is
P0172 is broader than a pressure code. Excess fuel delivery can create a rich result, but so can an injector concern, abnormal purge flow, contaminated oil or fuel, incorrect airflow information, or biased air-fuel feedback. The correct path checks the control loop rather than assuming that rich always means excessive fuel pressure.
4. The downstream exhaust result is unexpected
P2097 is a post-catalyst rich-side feedback fault. The downstream sensor reports evidence; it does not automatically identify itself as the failed part. Exhaust leakage or restriction, primary mixture faults, and upstream or downstream sensor behavior must be separated with a completed monitor and the applicable diagnostic path.
5. One cylinder differs from the others
P219A is a comparison code. Compression, valve clearance, deposits, oil-related contamination, injector behavior, ignition, or a local intake or exhaust effect can change one cylinder's contribution. Resolve primary injector-circuit, ignition, misfire, and sensor faults before treating the variation result as an injector verdict.
6. Electrical control is interrupted
Relay feeds, fuses, wiring, terminals, connector fit, and PCM control can prevent the late high-pressure-pump solenoid or the low-pressure pump from operating correctly. A circuit code requires voltage-drop, continuity, terminal, and command evidence from the exact wiring diagram; replacing the mechanical component does not repair an open feed.
A practical diagnostic strategy
Step 1: Identify the architecture before selecting a test
Confirm model year, drivetrain, engine code, and emissions configuration. Decide whether the vehicle has the early single-stage supply or the late K24W9 direct-injection system. Open service information for that exact configuration.
Step 2: Preserve the evidence
Record confirmed and pending DTCs, freeze-frame or on-board snapshot data, fuel trims, relevant pressure data, and upstream/downstream sensor information before clearing anything. Intermittent faults are much harder to reproduce after their conditions are erased.
Step 3: Classify the code
Place the concern into a working category:
- low-pressure supply or pump control;
- direct-injection pressure below target;
- direct-injection pressure above target;
- system-wide rich correction;
- post-catalyst feedback;
- cylinder-specific variation;
- high-pressure-pump control circuit.
That classification determines whether the next useful evidence is supply pressure, pressure command and response, electrical control, global mixture data, exhaust feedback, or cylinder comparison.
Step 4: Resolve related primary DTCs first
Pressure-sensor, injector-circuit, ignition, misfire, airflow, air-fuel-sensor, purge, and power-supply faults can make later functional results unreliable. Diagnose the code combination as a hierarchy, not as separate requests to replace parts.
Step 5: Inspect for hazards and basic faults
Check for liquid fuel leakage before running functional tests. Inspect accessible lines, quick-connect fittings, recently disturbed components, pump and sensor connectors, intake and exhaust areas, and related fluid condition. Do not disconnect a pressurized component during this inspection.
Step 6: Separate supply from high-pressure control
On the late direct-injection engine, prove adequate low-side supply before judging high-pressure output. Then compare commanded and measured direct-injection pressure using the function test and conditions specified for the exact vehicle.
For a high-pressure complaint, determine whether the displayed signal is plausible and whether actual pressure responds in the correct direction. For an early engine, stay within its single-stage pressure and pump-control procedure.
Step 7: Diagnose mixture faults as a complete loop
For a rich or post-catalyst concern, review fuel delivery, injector behavior, airflow information, purge influence, exhaust integrity, and sensor feedback in the order specified by service information. Reproduce the captured operating condition instead of relying only on warm-idle data.
Step 8: Isolate cylinder variation
For P219A, correct primary circuit, ignition, misfire, and sensor faults first. Then compare cylinders with the applicable test. Mechanical condition, valve clearance, deposits, injector behavior, and oil influence may need to be separated before a repair is justified.
Step 9: Verify the repair
After repair, perform the required leak check and restore every fuel and electrical connection. Complete any specified reset, learning, functional test, or monitor verification. Confirm that pressure behavior, fuel-trim or cylinder results, and related pending DTCs are normal under the conditions that originally produced the fault.
Clearing a code and seeing the light remain off before the monitor runs is not repair verification.
Match the repair to the proven failure
The eventual repair may involve a low-pressure pump or its electrical supply, a restricted or leaking line, a pressure sensor or circuit, high-pressure-pump control, mechanical pump drive, injector or injector circuit, purge valve, airflow input, air-fuel or oxygen sensor, exhaust leak, ignition problem, or mechanical cylinder condition. It may also involve correcting fuel or oil contamination.
The correct repair is the one supported by the applicable test path. Replacing a high-pressure pump for every P0087, an oxygen sensor for every P2097, or injectors for every P219A skips the isolation work the procedures are designed to perform.
Final takeaway
Fuel diagnosis on the 2010-2016 Honda CR-V 2.4 Gas starts by recognizing that one range label does not make its procedures interchangeable. The verified 2010 example centers on in-tank supply, injector operation, and mixture feedback. The verified 2015-2016 K24W9 system adds a mechanically driven high-pressure stage and rail-pressure control. Vehicles from intervening years must be identified by their installed engine and service information before either diagnostic model is used.
Identify the exact configuration, preserve the evidence, classify the DTC, make the system safe, resolve related primary faults, and isolate the failed section before replacing parts. The linked STEP guides provide model-specific educational context; exact service information for the vehicle being repaired controls specifications, test conditions, component access, and repair verification.
