What the fuel and air-fuel control system does
The 5.0-liter Coyote fuel system has to move gasoline from the tank, maintain adequate supply to the engine, meter fuel cylinder by cylinder, and correct the mixture as load and operating conditions change. The powertrain control module (PCM) coordinates fuel delivery, injector operation, measured airflow, exhaust feedback, and learned fuel correction. On later direct-injection-equipped trucks, that coordination also includes high-pressure generation and pressure feedback.
Ford application information confirms 5.0L F-150 endpoints at both ends of the 2015-2025 range. The 2015 5.0L uses sequential multi-port injection; Ford introduced dual port and direct injection for the 2018 5.0L. Detailed system and diagnostic evidence for this overview was verified on the exact 2025 F-150 4WD 5.0L application. Before using exact values or opening the system, verify the VIN, model year, calibration, installed injection architecture, connector information, specifications, and current service procedure for the truck being repaired. High-pressure and direct-injector details below apply only to trucks equipped with that later architecture.
A fuel or mixture DTC reports a monitored result that did not meet expectation. It does not select the replacement part. The related codes cover four different evidence paths: P0087 concerns pressure performance, P0174 concerns bank 2 adaptive mixture correction, P0183 concerns a temperature-signal circuit, and P0201 concerns the cylinder 1 injector circuit.
The main functional sections
- Low-pressure supply: The in-tank pump, pickup, filter, lines, electrical feed, and fuel quality determine whether the engine receives stable supply. A high-pressure complaint can begin on this side of the system.
- Injection architecture: Early-range trucks use sequential multi-port injection. From 2018, the 5.0L uses both port and direct injection. Confirm the installed system before choosing pressure, injector, connector, or safety procedures.
- Later high-pressure generation and control: On direct-injection-equipped trucks, a high-pressure stage supplies the direct injectors. The exact 2025 strategy reviewed here regulates delivery and monitors whether actual pressure follows the requested condition.
- Pressure and temperature feedback: Applicable pressure and pressure/temperature sensing give the PCM feedback for control and fault detection. An electrically high temperature signal is a circuit clue first, not proof that the fuel is physically too hot.
- Cylinder-by-cylinder injection: The PCM controls each applicable injector circuit to deliver the calculated quantity at the required time. Circuit operation, injector flow, and cylinder mechanical condition are related but separate diagnostic questions. The P0201 direct-injector path discussed below is exact to the later system reviewed.
- Air measurement and mixture feedback: Airflow, intake integrity, purge flow, oxygen-sensor response, and learned fuel trims help the PCM judge whether commanded fuel produced the expected mixture.
- Adaptive correction: Short- and long-term correction lets the PCM compensate within limits. When correction reaches a calibrated boundary, the code identifies the failed control result; diagnosis still has to find whether air, fuel, ignition, exhaust feedback, wiring, or engine mechanics caused it.

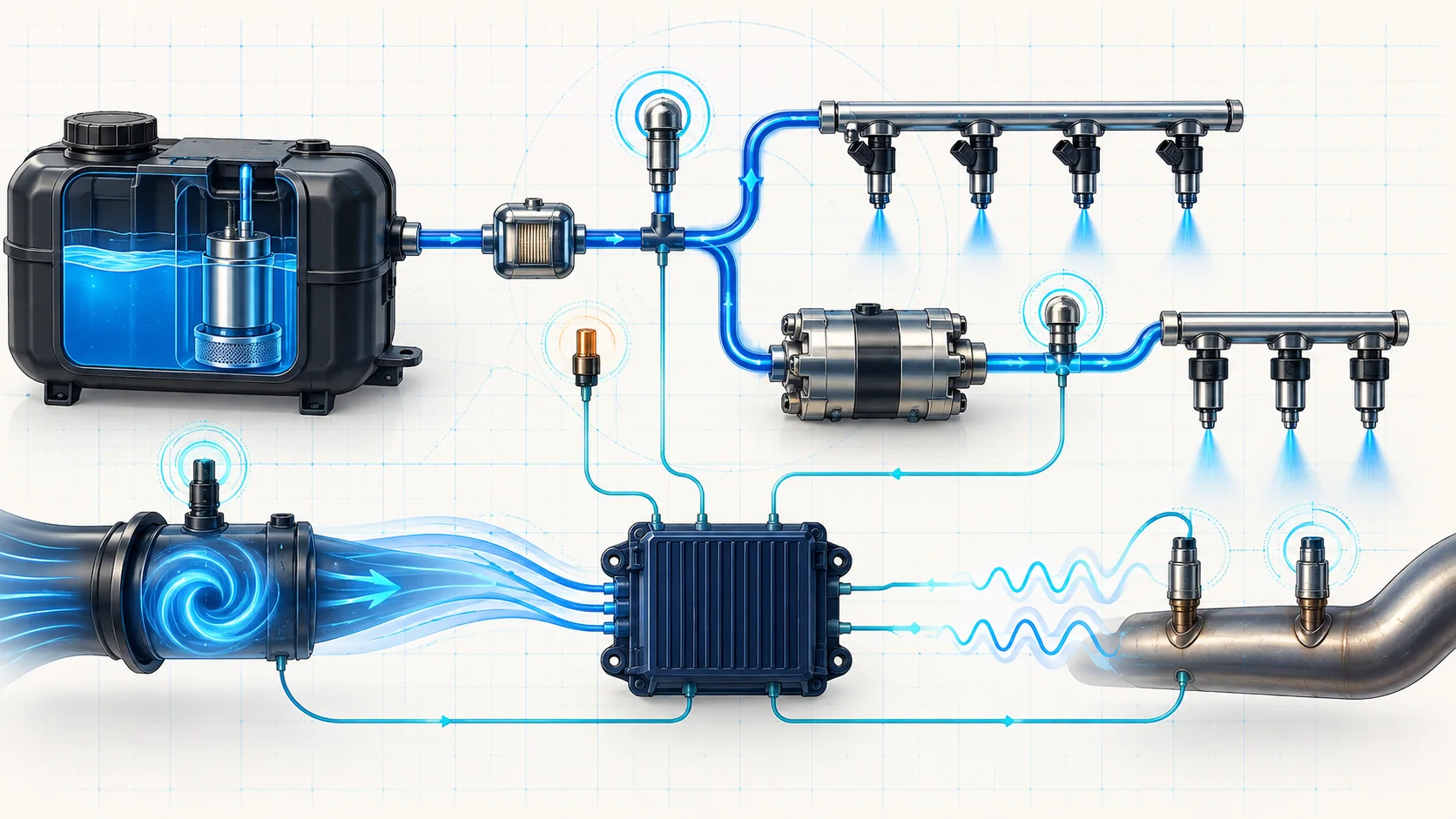

How supply, pressure, injection, and feedback work together
Fuel supply must reach the applicable injection system without restriction, aeration, electrical weakness, or leakage. The PCM calculates required fuel from speed, load, temperature, and airflow, commands injector operation and, where fitted, high-pressure control, then evaluates available pressure and exhaust response. Learned correction reflects how much the controller had to adjust to keep the mixture near its target.
This is a chain and a feedback loop. On a later direct-injection-equipped truck, weak low-side supply can make high-side pressure fall under load, while a biased pressure signal can make a mechanically sound system appear wrong. On any applicable architecture, one injector circuit can fail while overall delivery appears plausible. Unmetered air, purge flow, an exhaust leak, weak ignition, incorrect airflow data, or a mechanical cylinder problem can drive fuel trims without a primary pump failure.
That interaction is why the code family and captured operating condition should choose the next test. Starting with the most expensive component named near a code wastes evidence and often wastes parts.
What the related DTCs are telling you
| DTC | Diagnostic category | What it directs you to prove |
|---|---|---|
| P0087 | Fuel pressure too low | Whether supply, the installed pressure-generation and control hardware, feedback, leakage, electrical control, or the recorded operating condition explains why pressure could not be maintained |
| P0174 | Bank 2 too lean | Whether unmetered air, intake or PCV leakage, purge flow, fuel delivery, airflow data, exhaust feedback, ignition, fuel quality, or engine condition caused bank 2 correction to reach its rich limit |
| P0183 | Fuel-temperature signal circuit high | Whether an open, short to voltage, reference or return problem, connector fault, harness movement, or sensor fault explains the high electrical indication |
| P0201 | Cylinder 1 injector circuit | Whether the control or return circuit, terminal fit, injector, or PCM driver prevents the applicable cylinder 1 injector circuit from responding correctly; the reviewed 2025 path is for the direct injector |
P0087 is not an instruction to replace the high-pressure pump. P0174 is not proof that an oxygen sensor is bad. P0183 is not proof of overheated fuel. P0201 is not proof that cylinder 1 has a clogged injector. Each code narrows the evidence path, but none completes the diagnosis.
What the driver or technician may notice
Possible observations include:
- a malfunction indicator lamp with little immediate change in drivability;
- extended crank, hard starting, hesitation, reduced power, rough idle, stalling, or a pressure drop that appears only under load;
- rough running, a cylinder-specific miss, stumble, or surge with an injector-circuit concern;
- fuel trims that are strongly positive on one bank or both banks;
- a lean condition that is most pronounced at idle or changes as engine speed and load rise;
- an implausible fuel-temperature value compared with ambient and other temperature inputs;
- a fault that reacts to heat, vibration, connector movement, fuel level, or recent service;
- companion pressure-sensor, pump-control, injector, misfire, airflow, purge, oxygen-sensor, voltage, or communication codes.
Symptoms help reproduce the fault but do not identify the failed part. The same hesitation or lean indication can come from supply, air, ignition, exhaust, electrical, or mechanical faults.
Safety before testing
Gasoline and fuel vapor ignite easily, and the system can retain pressure after the engine is switched off. Work in a ventilated area away from flame, sparks, hot surfaces, smoking, and unapproved electrical equipment. Wear suitable eye or face protection and gloves, contain released fuel, clean spills immediately, and follow the exact pressure-relief procedure before opening any line, rail, pump, sensor, or injector connection.
Inspect for external leakage before running the engine. Stop testing if a leak is found. Let hot engine and exhaust parts cool before working nearby, and support the vehicle correctly if access underneath is required.
On later direct-injection-equipped trucks, injectors and pump-control components can be permanently damaged by improvised power application. Do not apply battery voltage directly to an injector or fuel-volume-control circuit. Use terminal-safe probes, the correct wiring information, and the directed test for the exact truck.
Common failure categories
1. Low-pressure supply or fuel-quality problem
A weak in-tank pump, restricted pickup or filter, damaged line, poor electrical supply, low fuel level, contamination, incorrect fuel, or leakage can starve the injection system. On a later direct-injection-equipped truck, prove low-side delivery under the condition that produced the fault before condemning high-pressure hardware.
2. High-pressure generation or control problem
On a later direct-injection-equipped truck, the high-pressure pump, its mechanical drive, fuel-volume control, pressure-feedback path, or internal leakage can keep actual pressure from following command. Requested-versus-actual data is useful only when the correct PID, operating condition, and service specification for that installed system are used.
3. Unmetered air, PCV, purge, or intake problem
An intake leak, disconnected duct, PCV fault, purge valve stuck open, damaged vacuum hose, or manifold sealing problem can add air the PCM did not account for. A fault that is more influential at idle than at a raised engine speed can support this branch, but use the source procedure and compare both banks before deciding.
4. Airflow or exhaust-feedback problem
Contaminated or biased airflow information, an exhaust leak, oxygen-sensor wiring trouble, or a feedback fault can distort mixture correction. P0174 records the correction limit; it does not distinguish the reporting fault from the condition being reported.
5. Pressure or temperature sensor circuit problem
An open circuit, short, corrosion, poor terminal fit, damaged reference or return path, harness movement, or failed sensor can create implausible data. Treat P0183 as circuit evidence first and interpret displayed temperature as a physical condition only after signal integrity is established.
6. Individual injector circuit or flow problem
P0201 concerns the applicable cylinder 1 injector circuit. On the exact 2025 system reviewed, the path addresses the direct injector. A control/return-circuit fault, connector problem, electrically faulty injector, or PCM driver can prevent correct operation. Injector flow, leakage, deposits, and cylinder contribution require different evidence; do not confuse a circuit result with a mechanical flow result or assume the same injector architecture on an early-range truck.
7. Ignition or engine mechanical problem
Weak ignition, compression loss, valve-timing trouble, or another cylinder fault can leave oxygen in the exhaust and influence fuel correction. Misfire data and mechanical evidence keep a combustion problem from being misdiagnosed as fuel supply.
A practical diagnostic sequence
1. Preserve the evidence
Scan all modules before clearing codes or resetting learned values. Save DTC status, freeze-frame data, requested and actual pressure, pressure and temperature PIDs, short- and long-term trims for both banks, oxygen-sensor response, misfire counters, system voltage, fuel level, and the load and temperature at which the fault set. Record recent fueling, wiring, intake, engine, calibration, or collision work.
2. Establish code priority
Address low voltage, lost communication, shared-power, reference-voltage, and direct circuit faults before trusting performance data influenced by those circuits. Follow the current service-information priority when several codes are present.
3. Perform safety and visual checks
Check for fuel leakage, damaged or incorrectly routed lines, loose intake plumbing, split vacuum or PCV hoses, disturbed purge plumbing, connector damage, terminal problems, heat exposure, abrasion, contamination, oil-cap or dipstick sealing issues, and exhaust leaks. Visual evidence should choose tests, not replace them.
4. Separate supply from pressure generation
For P0087, identify the installed fuel architecture first. On a later direct-injection-equipped truck, determine whether the high-pressure stage receives adequate low-side supply. Then compare requested and actual pressure using the exact procedure and, when directed, an independent mechanical measurement. A good low-side result does not prove the high side, and low pressure does not identify the failed component by itself.
5. Use fuel trims as direction, not a verdict
For P0174, compare bank 1 with bank 2 and compare idle behavior with the directed raised-speed condition. A one-bank pattern differs from a condition affecting both banks. A change with engine speed can help separate unmetered-air influence from load-sensitive supply, airflow, feedback, ignition, or mechanical causes, but it is not a standalone parts test.
6. Treat circuit codes as circuit evidence
For P0183, compare the temperature input with other temperature information, then test the signal, reference, return, connector, and harness as directed. For P0201, verify which injector circuit applies to the exact truck, then test its control/return paths, terminal fit, injector electrical behavior, and driver control before replacing any component. A controlled harness-movement test can expose an intermittent fault when the source procedure calls for it.
7. Test the branch supported by evidence
Use the applicable pressure, volume, leakdown, fuel-quality, purge, airflow, circuit-load, injector, ignition, compression, or exhaust test only after the preceding evidence supports that branch. Do not substitute a generic specification, connector view, or procedure from another model year.
8. Verify the repair
After correcting the proven cause, inspect for leakage, clear codes or learned values only when instructed, repeat the applicable self-test or safe drive condition, and confirm stable pressure control, plausible temperature data, correct injector operation, normalized fuel correction, and restored drivability. Re-scan all modules. A cleared lamp or a code that has not yet rerun is not repair verification.
Repair direction by confirmed cause
- Correct leakage, contamination, damaged lines, fuel-quality problems, or low-side supply faults before evaluating high-pressure components.
- Repair power, ground, reference, return, signal, connector, terminal, or harness faults before replacing a sensor or injector.
- Replace a pressure/temperature sensor only when circuit integrity and sensor response fail the directed test.
- Replace an injector only when electrical or flow evidence identifies it and the related circuit has been proven.
- On a direct-injection-equipped truck, service the high-pressure pump or control hardware only after supply, mechanical drive, control, feedback, and requested-versus-actual evidence support that decision.
- Repair intake, PCV, purge, airflow, exhaust-feedback, ignition, compression, or timing faults when they explain the mixture evidence.
- Do not replace the PCM until powers, grounds, circuits, loads, inputs, outputs, and the applicable diagnostic path support that conclusion.
Final takeaway
The 5.0L Coyote fuel and air-fuel control system works as a chain and a feedback loop: supply feeds the installed injection architecture, injectors meter fuel, and the PCM evaluates available pressure, temperature, airflow, exhaust response, and learned correction. Early sequential multi-port and later dual port/direct-injection trucks do not share every component or test. Classify the failed evidence and verify the installed system before testing parts. P0087 asks why pressure missed its target, P0174 asks why bank 2 correction reached its limit, P0183 asks why a temperature circuit appears electrically high, and P0201 asks why one injector circuit did not respond correctly. Proving supply, control, feedback, air integrity, and circuit operation in the correct branch prevents unnecessary pump, sensor, injector, oxygen-sensor, and PCM replacement while keeping work on a pressurized gasoline system safe.
