2016-2024 Honda Civic 2.0 Gas Engine Timing, VTC, and Position System: How It Works and How to Diagnose It

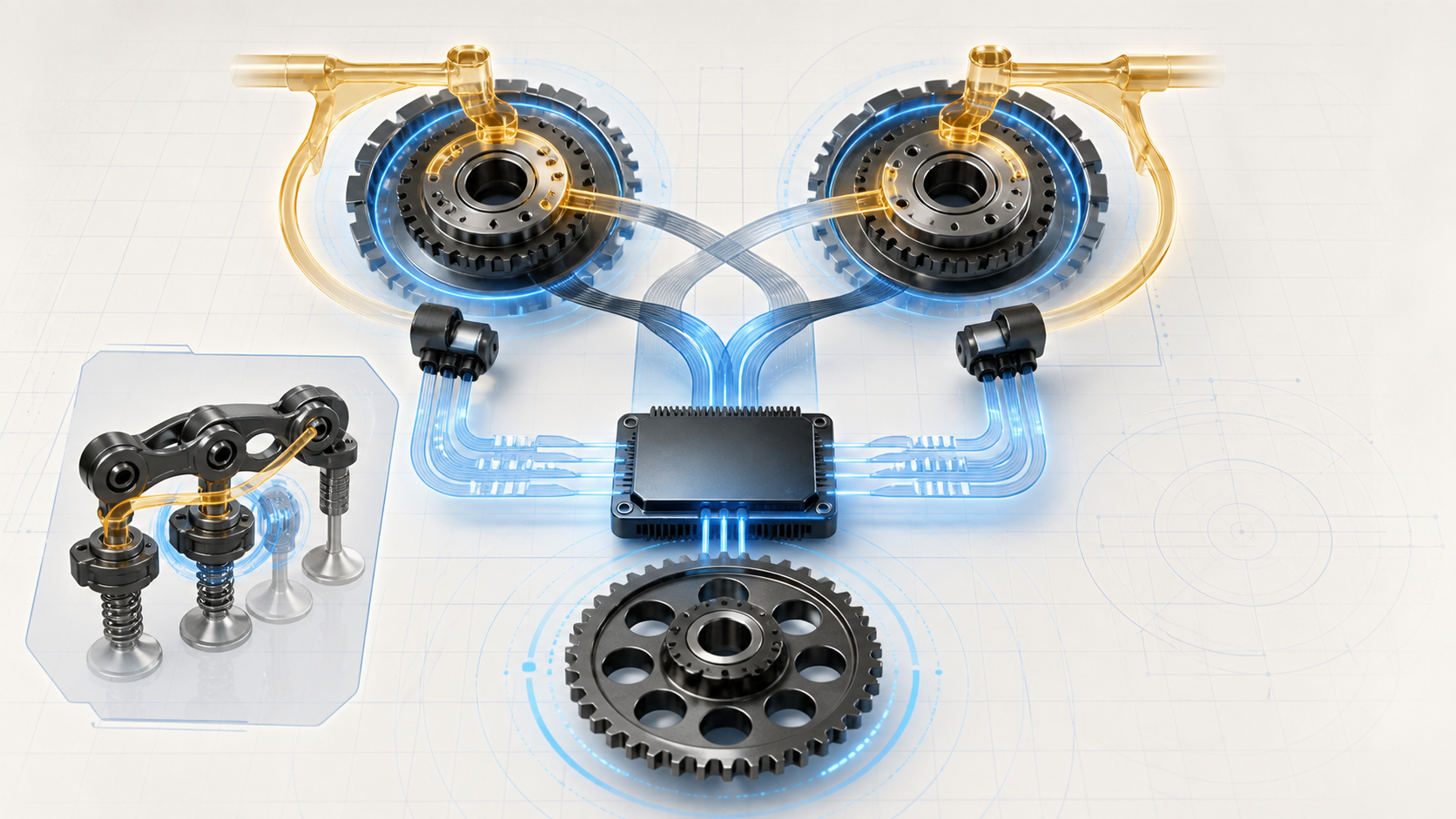

What this system does

The engine has to coordinate three related functions. The mechanical timing drive keeps the crankshaft and camshafts in their correct base relationship. The variable timing and lift systems alter valve operation when operating conditions call for it. The position sensors let the powertrain control module (PCM) verify engine speed, cylinder phase, and actual camshaft movement.

On this 2.0-liter engine, Honda uses both VTC and VTEC functions:

1. The crankshaft position (CKP) sensor provides the primary rotational reference.
2. Camshaft position (CMP) sensors report the intake and exhaust camshaft positions.
3. The PCM commands VTC oil control solenoid valves to route engine oil within the cam actuators.
4. The VTC actuators advance or retard camshaft phase relative to base timing.
5. The PCM compares commanded cam position with the position calculated from CKP and CMP signals.
6. The VTEC rocker-arm oil control system uses commanded oil pressure to change the active rocker-arm arrangement and valve-lift behavior.

These functions share oil, sensors, control logic, and mechanical hardware, but they do not fail in the same way. A sensor circuit DTC, a cam-phase performance DTC, a rocker-arm pressure DTC, and a mechanical correlation DTC direct the technician to different proof steps. None identifies a failed part by itself.

The main functional sections

• Mechanical timing drive: The crankshaft, cam chain, tensioning hardware, camshafts, indexed targets, and cam actuators establish base timing. Incorrect assembly, wear, damage, or movement can shift the crank-to-cam relationship even when all electrical circuits work.
• CKP and CMP signal channels: Each channel includes a sensor, its power and ground or return paths, signal circuit, connector, harness, the rotating pulse plate or target, and the PCM input. The PCM evaluates a repeating pulse pattern, not merely the presence of voltage at a connector.
• VTC actuators: The intake-side and exhaust-side actuators change camshaft angle. They must unlock, move smoothly through their controlled range, hold a stable position, and return or lock as the strategy requires.
• VTC oil control: PCM-controlled solenoid valves meter pressurized engine oil to the appropriate side of each actuator. Oil level, condition, viscosity, pressure, a restricted passage, debris, or a sticking valve can therefore affect cam response without setting a simple electrical circuit code.
• VTEC rocker-arm control: A rocker-arm oil control valve and integrated solenoid route oil pressure to the switching mechanism. The PCM commands the change according to operating conditions and monitors pressure feedback.
• PCM command and feedback logic: The PCM uses CKP/CMP information and other engine inputs to command valve operation, evaluate actual response, detect pulse interruptions, and judge phase plausibility.

Normal operation in four layers

1. Base mechanical timing remains correct

Before variable timing can work, the cam chain and indexed components must keep the crankshaft and camshafts in their intended base relationship. VTC can move a camshaft through a controlled range; it cannot compensate for an incorrectly installed chain, a shifted target, damaged indexing, excessive mechanical movement, or an actuator assembled in the wrong reference position.

2. CKP and CMP signals establish position

The CKP signal gives the PCM the detailed rotational reference used for engine speed and crank position. The CMP signals identify the camshaft phases relative to that reference. A usable signal must have the expected pulse pattern and remain stable during cranking, running, heat, vibration, and commanded cam movement.

The PCM can detect more than a completely missing signal. It can recognize an intermittent pulse interruption or a crank-to-cam phase relationship that no longer matches the expected window. That distinction is why an intermittent circuit code should not be diagnosed as if it were automatically a slipped chain, and a phase code should not be diagnosed before direct signal faults are understood.

3. VTC uses oil pressure to change cam phase

When operating conditions call for a phase change, the PCM commands a VTC oil control solenoid valve. The valve directs oil to an advance or retard chamber in the actuator, and the actuator changes the camshaft angle. The PCM watches the cam signal to determine whether actual phase follows the request.

This is a command-versus-response system. A correct electrical command cannot move an actuator if oil supply is inadequate or the hydraulic path is restricted. Adequate oil pressure does not prove that the solenoid, actuator, signal feedback, or base mechanical timing is correct.

4. VTEC changes rocker-arm operation

The PCM also controls the rocker-arm oil control system. Depending on operating conditions, oil pressure moves switching components so the applicable rocker arms follow the intended cam-lobe profile. The pressure sensor provides feedback about the oil-control state.

The pressure feedback and the solenoid circuit answer different questions. A pressure result that remains in the wrong state can point toward the sensor, oil-control valve, oil passage, filter, hydraulic condition, or control problem. A solenoid circuit DTC first requires proof of the electrical control path.

What the related DTCs are telling you

The complete code set changes the order of diagnosis. A direct CKP or CMP pulse-interruption code can make a phase result secondary. A VTC response code should be understood before P0341 is used to authorize mechanical disassembly. A rocker-arm pressure DTC and a solenoid circuit DTC may involve the same assembly area, but they do not prove the same failure.

What the driver or technician may notice

Possible observations include:

• a malfunction indicator lamp with little or no obvious drivability change;
• extended cranking, intermittent hard starting, stumble, or stall if a critical position signal drops out;
• rough idle, hesitation, reduced power, or inconsistent response when commanded cam timing or valve lift does not change as expected;
• a rattle or abnormal mechanical noise that requires base-engine and timing inspection rather than immediate sensor replacement;
• an intermittent fault that appears with temperature, vibration, harness movement, or a particular engine speed and load;
• commanded and actual cam phase that disagree, move slowly, stick, or fail to return;
• several CKP, CMP, VTC, rocker-arm, oil-pressure, or misfire-related codes that must be prioritized as a group.

These observations do not prove that a sensor, solenoid, actuator, timing chain, or PCM has failed. Similar symptoms can come from battery, starting, charging, ignition, fuel, airflow, lubrication, or base-engine faults.

Safety comes before timing diagnosis

Running signal and VTC tests can place the technician near belts, pulleys, the cooling fan, hot engine parts, and moving linkages. Secure clothing, test leads, and tools. Keep hands clear of rotating components, and remember that an electric fan can start unexpectedly.

Do not back-probe, jumper, power, or ground a CKP, CMP, VTC, or rocker-arm control circuit unless the exact Honda procedure identifies the correct terminals, fused test method, and vehicle state. A wrong connection can damage a sensor or PCM driver.

Oil-pressure testing opens a pressurized lubrication circuit and may require running the engine. Use the specified adapter and gauge, confirm secure connections before starting, wear appropriate eye protection, and stop the engine immediately if the procedure indicates that pressure is absent or unsafe.

Mechanical timing or VTC actuator service requires controlled engine positioning, exact timing references, correct fasteners and sealants, and verification of every disturbed electrical, air, oil, and cooling connection. Current service information controls the disassembly and assembly steps.

Failure categories represented by these DTCs

1. A position-sensor circuit or signal becomes intermittent

An open circuit, excessive resistance, short, poor terminal fit, corrosion, harness damage, contamination, heat, vibration, sensor failure, or a target concern can interrupt CKP or CMP pulses. A normal static voltage reading does not prove that the pulse pattern remains usable while the engine is cranking or running.

2. Oil control cannot move or hold a VTC actuator

Incorrect oil level or condition, inadequate oil pressure, debris, a restricted filter or passage, a sticking oil-control valve, or an actuator concern can make actual cam position lag, stick, overshoot, or fail to return.

3. Base mechanical timing or the target relationship is wrong

Incorrect assembly, chain or tensioner wear, damaged indexing, pulse-plate movement, actuator installation error, or another mechanical shift can change the relationship between CKP and CMP signals. Direct signal and VTC-control faults should be resolved first because the PCM cannot make a reliable phase judgment from corrupted inputs or an uncontrolled actuator.

4. The rocker-arm hydraulic state does not match the command

A pressure sensor concern, restricted passage, clogged filter, control-valve problem, inadequate oil supply, internal leakage, or PCM control issue can leave feedback in the wrong state. The diagnostic path must separate electrical feedback, commanded valve operation, and actual hydraulic pressure.

5. The electrical control path is faulty

A damaged connector, open or shorted harness, excessive resistance, failed solenoid winding, or PCM-driver concern can prevent correct control even when the mechanical and hydraulic parts are capable of working. Circuit DTCs belong in this category first.

A practical system-first diagnostic strategy

Step 1: Confirm the exact application and preserve evidence

Verify the model year, engine, installed calibration, oil specification and service history, recent repairs, and the applicable Honda procedure. Save confirmed, pending, and history DTCs with freeze-frame or on-board snapshot data before clearing anything. Note starting behavior, engine speed, temperature, load, battery condition, commanded and actual cam data, and whether the concern followed sensor, timing, battery, oil-system, or cylinder-head work.

Step 2: Classify and prioritize the code set

Separate direct CKP/CMP signal faults, VTC response faults, crank-to-cam phase faults, rocker-arm pressure faults, and electrical control-circuit faults. Follow related-code priorities in current service information. Establish credible position signals before judging phase, and establish VTC control and response before authorizing mechanical timing work.

Step 3: Check oil and basic engine condition early

Verify the oil level, condition, and correct application. Look for contamination, aeration, sludge, an unsuitable filter, or evidence of pressure trouble. If the directed path calls for a mechanical oil-pressure test, use the specified adapter, conditions, and safety procedure. Do not condemn an actuator from scan data alone when its oil supply has not been evaluated.

Step 4: Inspect without destroying intermittent evidence

With the engine safely off, inspect accessible CKP, CMP, VTC, and rocker-arm control harnesses, connectors, retainers, heat exposure, chafe points, oil intrusion, and recent service areas. Document connector position and terminal condition before disturbing an intermittent connection.

Step 5: Use scan data as a command-versus-response test

Use the data parameters and function tests identified by the applicable Honda procedure. Where the vehicle exposes commanded and actual cam phase, compare them under the directed conditions; otherwise use the monitor result and directed component or pressure tests rather than assuming a PID is available. Reproduce the stored operating region only when safe. Ask focused questions:

• Are CKP and both CMP signals stable?
• Is synchronization established?
• Does actual cam phase move when the PCM requests a change?
• Does it follow the request and return without a persistent error?
• Does the directed VTEC pressure test or available feedback show that the hydraulic state matches the command?
• Is the problem limited to one signal, one actuator side, one circuit, or a shared oil condition?

Use the exact PID names, commands, limits, and test conditions for the vehicle. A brief difference during a rapid command is not automatically a failed response.

Step 6: Prove circuits before replacing components

Use the correct wiring diagram and specified test method to prove supplies, grounds or returns, signal and control paths, terminal fit, and shorts. For an intermittent concern, monitor the relevant data during a controlled harness-movement check while all hands and leads remain clear of moving parts.

Do not assume that an audible solenoid click proves the oil passage, pressure, actuator, or feedback sensor is healthy. It proves only that a particular mechanical movement occurred during that test.

Step 7: Separate hydraulic response from mechanical timing

If the circuits and signals are credible, evaluate oil pressure and flow, control-valve operation, filters and passages, and actuator response as directed. Move to base-timing and target inspection only when the prior evidence supports it. Use exact timing marks and engine-positioning instructions for the vehicle; generic diagrams are not authorization to disassemble the engine.

Step 8: Verify the complete repair

Reconnect and secure every disturbed circuit, retainer, oil-control component, intake connection, fluid connection, and mechanical fastener. Complete any required PCM reset, idle learn, or setup procedure. Repeat the relevant test conditions, confirm stable CKP/CMP and commanded-versus-actual cam data where those parameters are available, complete the directed VTEC pressure or feedback verification, and verify that no related pending DTC returns after the monitor has had a valid opportunity to run.

Clearing codes or seeing the warning light remain off during a brief idle is not repair verification.

Match the repair to the proven failure

The supported repair may be a terminal or harness repair, corrected connector retention, restored power/ground/control integrity, correct oil and filter service, an oil-pressure or passage repair, cleaned or replaced oil-control hardware, corrected sensor installation, sensor replacement, actuator repair, corrected pulse plate or base timing, timing-drive service, or - only after the directed branches support it - PCM repair or replacement with required programming and setup.

Avoid common shortcuts:

• replacing a CKP or CMP sensor for every intermittent signal code without proving the circuit and target relationship;
• replacing a VTC actuator for P1009 or P101A without checking oil supply, solenoid control, and commanded response;
• treating P0341 as proof that the cam chain has jumped before direct signal and VTC faults are resolved;
• replacing the rocker-arm oil control valve for every P2647 without separating pressure feedback, oil supply, passages, and the sensor;
• using an oil-service correction to explain a direct P2649 circuit fault without testing the electrical path.

Final takeaway

On the 2016-2024 Honda Civic 2.0 Gas, engine-timing diagnosis is a layered evaluation of base mechanical timing, CKP/CMP pulse quality, oil-controlled cam phasing, VTEC rocker-arm operation, PCM command-versus-response logic, and hydraulic pressure feedback.

Start with the complete code set and stored evidence. Prove signal and circuit integrity, check the oil system, use scan data to separate a control fault from a response fault, and move into mechanical timing only when the earlier evidence supports it. The linked STEP DTC guides provide model-specific educational paths; current service information for the exact Civic controls specifications, connector references, commands, disassembly, setup, and final verification.
